Small green circuit board with a blue 20-pin female header and a silver Type-E male connector, black CH334P chip visible

Fervit

Fervit USB 3.1 Type-E to USB 3.0 20-pin adapter with CH334P chipset

SKU CH-RVJ1-C7GGS

Converts a motherboard USB 3.0 header to a USB 3.2 Gen 2 Type-E port with CH334P chipset splitting one USB 2.0 channel into two

  • Converts USB 3.0 header to USB 3.2/3.1 Type-E for higher standard support
  • Type-E port delivers up to 10Gbps data rates for fast SSD or HDD transfers
  • CH334P chipset splits one USB 2.0 channel into two for dual device connection
  • Compact design plugs directly into motherboard without extra accessories
  • Reverses conversion from USB 3.1 header to USB 3.0 20-pin for broad compatibility

Purpose and audience

This adapter connects a motherboard USB 3.0 20-pin header to a front-panel USB 3.2 Gen 2 Type-E port. It suits builders adding a modern high-speed front connector to a board that only exposes the older header.

Deciding specification

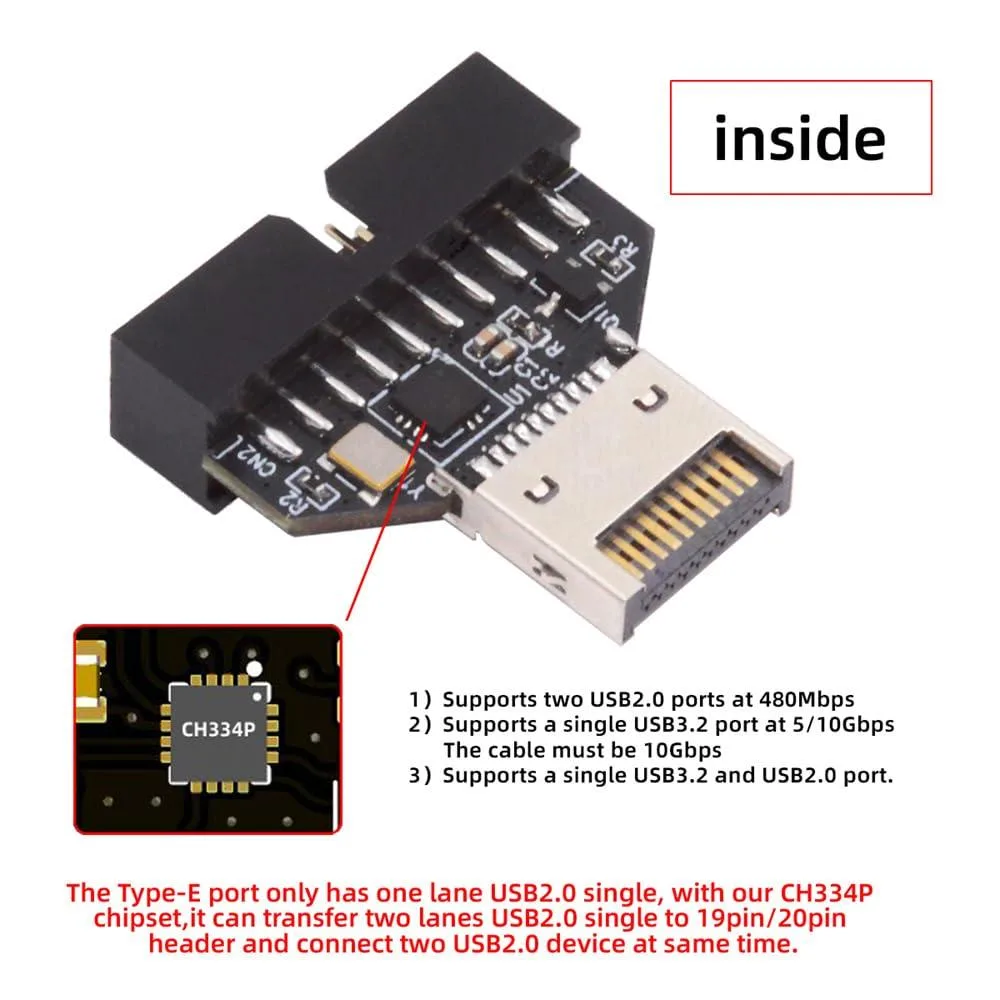

The CH334P chipset splits one USB 2.0 signal channel into two, so two USB 2.0 devices can run simultaneously from the single Type-E port. The port delivers up to 10Gbps data throughput but carries no video, audio, Power Delivery or DisplayPort alternate mode signals.

Build integration

The compact module plugs straight into any USB 3.0 header without extra cables or brackets. It frees the newer Type-E front-panel port for fast SSD or HDD transfers while keeping legacy USB 2.0 peripherals functional on the same connection.

Highlights

  • Converts USB 3.0 header to USB 3.2/3.1 Type-E for higher standard support
  • Type-E port delivers up to 10Gbps data rates for fast SSD or HDD transfers
  • CH334P chipset splits one USB 2.0 channel into two for dual device connection
  • Compact design plugs directly into motherboard without extra accessories
  • Reverses conversion from USB 3.1 header to USB 3.0 20-pin for broad compatibility

Specifications

BrandFervit

Questions about this item

What does the 10Gbps rating mean when I plug this into my motherboard?

The Type-E port can transfer data at up to 10Gbps with SSDs or HDDs, but actual speed depends on the drive and the USB 3.0 header you connect to.

Which header standard does the 20-pin side use and what does it limit?

The 20-pin female connector is a USB 3.0 header; it caps the link at USB 3.0 speeds even though the Type-E port is rated for 10Gbps.

Does this adapter need a separate bracket or cable to mount inside the case?

No, the compact board plugs directly into the motherboard USB 3.0 header without extra accessories.
