Small green circuit board with two internal USB connectors and a SATA power socket

Fervit

Fervit USB 3.1 Type-E 19/20Pin Splitter Hub 5Gbps Dual Ports

SKU CH-7PHV-62WWA

Splits a Type-E or 19/20-pin header into dual Type-E and 19/20-pin ports at 5 Gbps with optional SATA power

  • GL3510 chipset fully utilises 5 Gbps bandwidth for faster file transfers
  • 5 Gbps data rate with 5 V power keeps legacy USB 2.0 and 1.1 devices working
  • Optional SATA power delivers up to 5 V 2 A for demanding front-panel devices
  • Dual 19/20-pin and Type-E outputs connect most USB 3.0 front panels and hubs

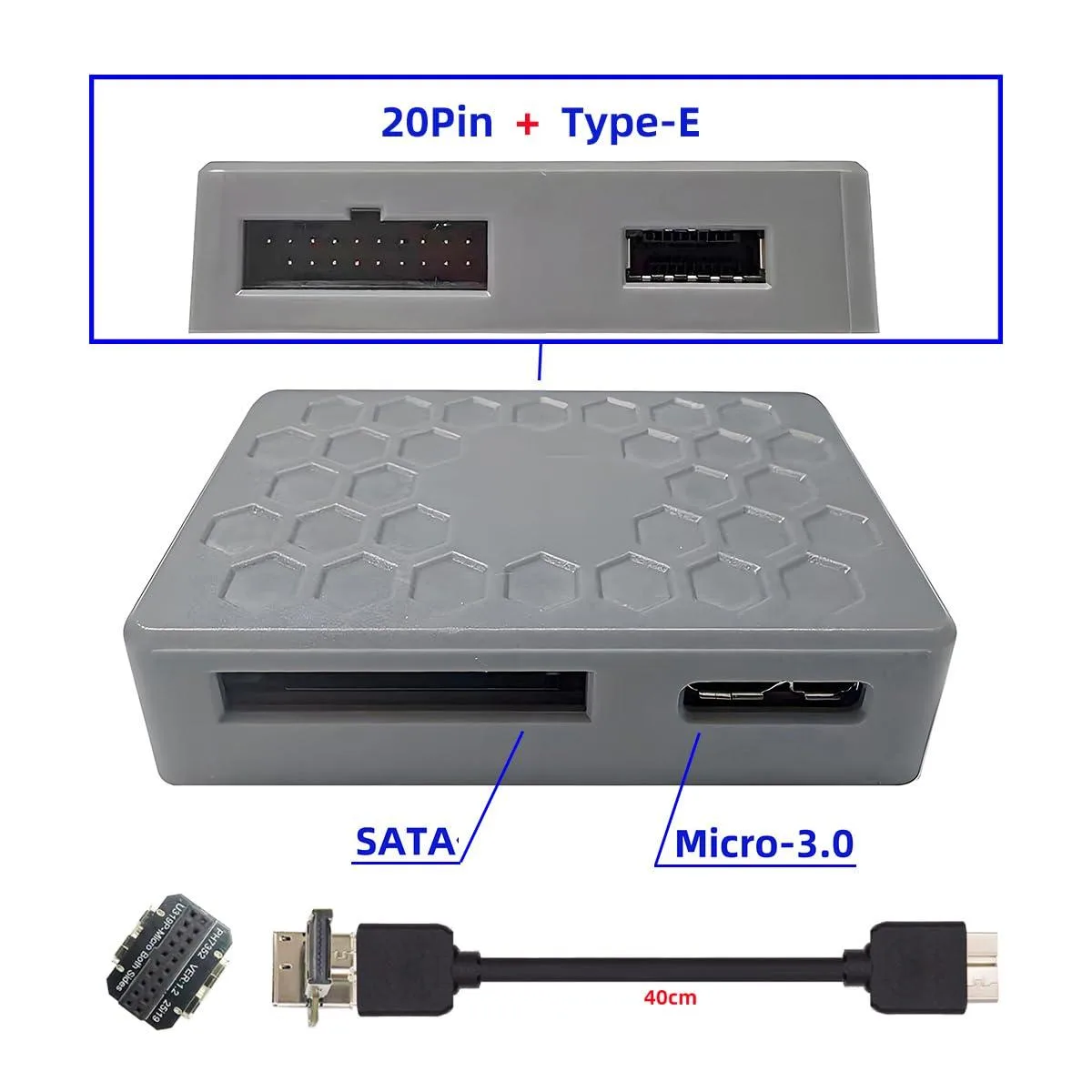

  • Accepts Type-E, 19/20-pin header or Micro-USB 3.0 input for flexible motherboard compatibility

Fervit USB 3.1 Type-E 19/20Pin Splitter Hub 5Gbps

The Fervit adapter splits a single USB 3.1 Gen1 front-panel header into two female ports: a USB 3.0 19/20-pin header and a Type-E socket. It is built for PC builders who need to run two front-panel USB devices from one motherboard header. The GL3510 chipset enables full 5 Gbps bandwidth utilisation across the connection.

Build integration: header splitting

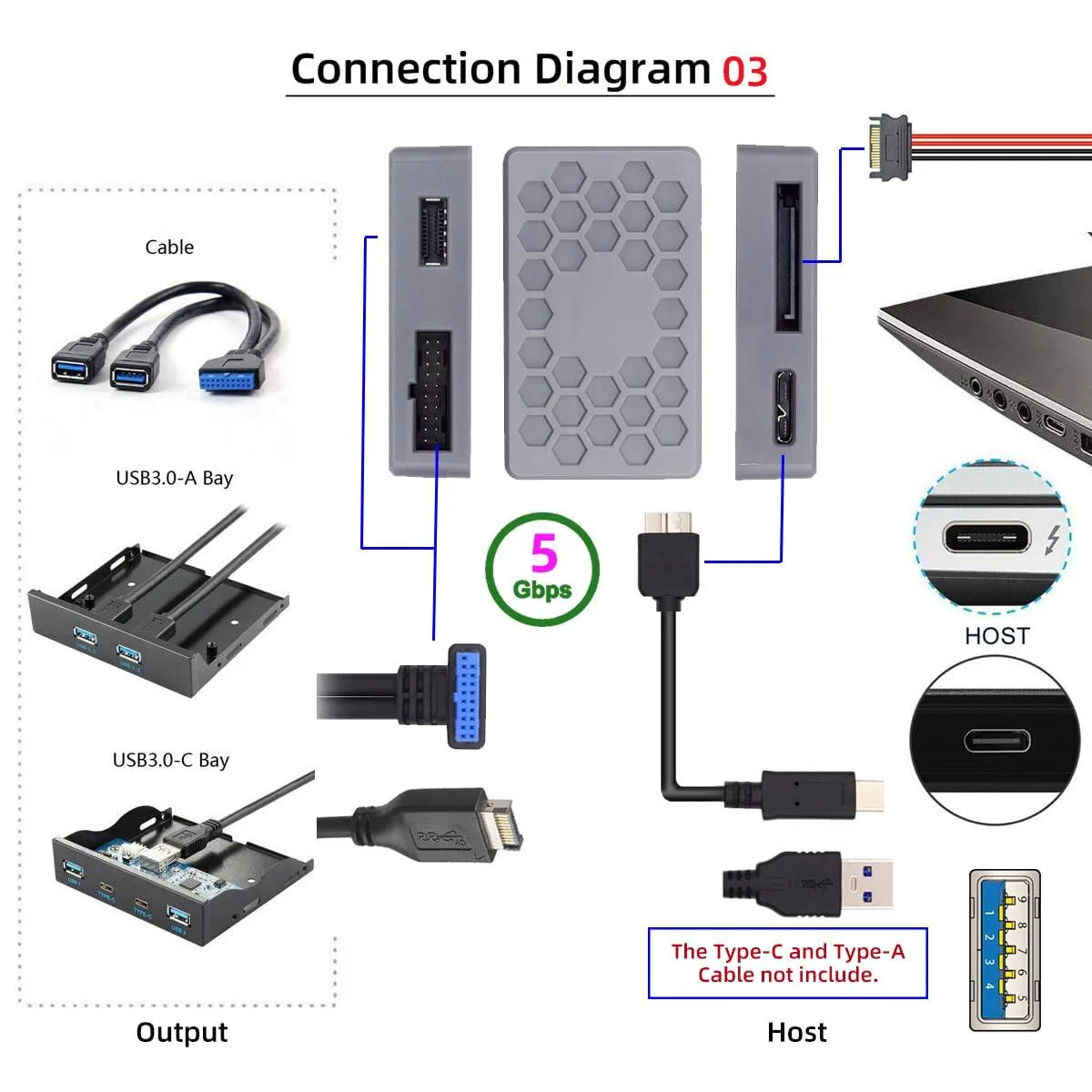

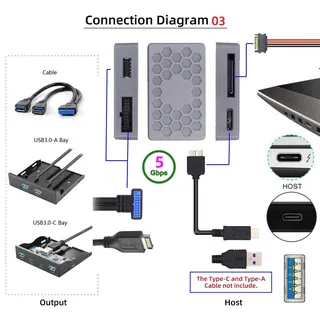

The board accepts a Type-E, 19/20-pin or Micro-USB 3.0 input and mirrors it to both outputs simultaneously. Compatible devices include front-panel ports, internal cables, hubs and card readers. An optional SATA power connection can supply up to 5 V 2 A for devices that need more current than the header provides; the SATA cable is not included.

Sustained throughput and backward compatibility

The GL3510 controller maintains the 5 Gbps link under continuous load rather than only in short bursts. The hub remains compliant with USB 3.1, 3.0, 2.0 and 1.1 specifications, so older 480 Mbps and 1.5 Mbps peripherals continue to operate at their rated speeds without negotiation issues.

Highlights

  • GL3510 chipset fully utilises 5 Gbps bandwidth for faster file transfers
  • 5 Gbps data rate with 5 V power keeps legacy USB 2.0 and 1.1 devices working
  • Optional SATA power delivers up to 5 V 2 A for demanding front-panel devices
  • Dual 19/20-pin and Type-E outputs connect most USB 3.0 front panels and hubs
  • Accepts Type-E, 19/20-pin header or Micro-USB 3.0 input for flexible motherboard compatibility

Specifications

BrandFervit

Questions about this item

What throughput does the GL3510 chipset sustain on the 5 Gbps bus?

The GL3510 chipset achieves full utilisation of the 5 Gbps data rate on the USB 3.1 Gen 1 bus.

How much power can the adapter deliver when fed from a SATA power connector?

Up to 5 V at 2 A is available when the board is powered from a PC SATA power port.

Which motherboard headers must be present to plug this splitter in?

You need a USB 3.1 Type-E front-panel header or a 19/20-pin USB 3.0 header on the motherboard.
