Silver USB-C male DIY connector with aluminium shell and screw-on covers

Fervit

Fervit USB 3.1 Type-C Male DIY Connector Silver 4.0-6.0mm

SKU CH-1PKG-Z1S98

A solder-type USB 3.1 Type-C male plug with aluminium alloy shell for custom cables of 4.0 to 6.0 mm diameter, supporting 5 Gbps SuperSpeed data rates

  • Supports 5Gbps Super-Speed data transfers
  • Aluminium alloy shell protects the plug mechanically
  • Fits cables with 4.0-6.0 mm outer diameter
  • Solder-type design enables DIY cable assembly

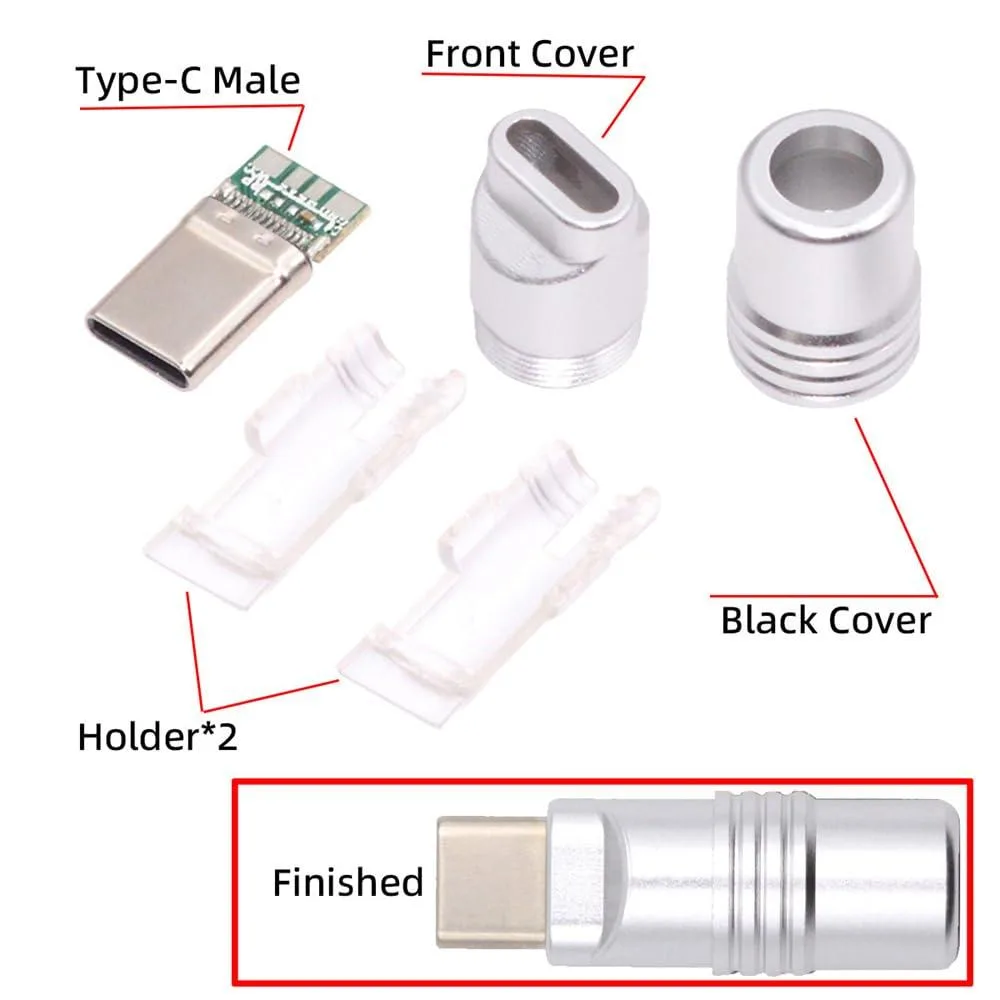

  • Package includes connector, covers and dual holder

DIY USB 3.1 Type-C plug for custom cables

This solder-type connector lets you build or repair a USB 3.1 Type-C cable with an outer diameter between 4.0 mm and 6.0 mm. It supports USB 3.0 Super-Speed at 5 Gbps, USB 2.0 Hi-Speed at 480 Mbps and USB 1.1 Low-Speed at 1.5 Mbps. The aluminium alloy shell protects the contacts and improves durability. The package supplies the connector, front cover, back cover and dual holder; no cable is included.

Check cable diameter and soldering ability

Verify that the cable you intend to use has an outer diameter from 4.0 mm to 6.0 mm so the covers and holder fit correctly. You need a soldering iron, flux and basic soldering skill to attach the wires to the plug contacts. Ensure your device or host port is a standard USB Type-C receptacle; this is a male plug only. No driver installation is required for the connector itself.

Low heat and silent operation in normal use

The passive metal shell dissipates the small amount of heat generated during data transfer without any fan or active cooling. There are no moving parts, so the connector adds no audible noise to the system. Power draw follows the USB 3.0 and USB 2.0 specifications and is determined by the connected devices, not by the plug itself.

Highlights

  • Supports 5Gbps Super-Speed data transfers
  • Aluminium alloy shell protects the plug mechanically
  • Fits cables with 4.0-6.0 mm outer diameter
  • Solder-type design enables DIY cable assembly
  • Package includes connector, covers and dual holder

Specifications

BrandFervit

Questions about this item

What parts come with the Fervit USB 3.1 Type-C male connector and what must I supply?

The package includes the connector, front cover, back cover and dual holder; you must provide a 4.0 mm to 6.0 mm OD USB 3.0 Type-C cable.

Which cable diameter range should I select for this DIY plug?

Choose a cable with an outer diameter between 4.0 mm and 6.0 mm; the connector is designed specifically for that range.

What real-world transfer rate will I see from the 5Gbps rating once the connector is soldered onto my cable?

The connector supports USB 3.0 Super-Speed at 5Gbps, plus USB 2.0 Hi-Speed at 480Mbps and USB 1.1 Low-Speed at 1.5Mbps for backward compatibility.
