USB-C locking cable with panel-mount screw, 120 cm

Fervit

Fervit USB 3.1 Type-C Locking Cable 10Gbps 65W 120cm Panel Mount Screw

SKU CH-H98M-PPFAW

Locking USB 3.1 Type-C cable delivers 10Gbps data and 65W power with a 120cm reversible design and panel-mount screw for secure industrial camera connections

  • 10Gbps data transfer for fast file movement
  • 65W power delivery charges devices quickly
  • Locking thumbscrew connector prevents accidental disconnection
  • 120cm cable length suits panel-mount setups
  • USB-C Vision Standard compliant for industrial cameras

Secured USB-C Link for Industrial Cameras

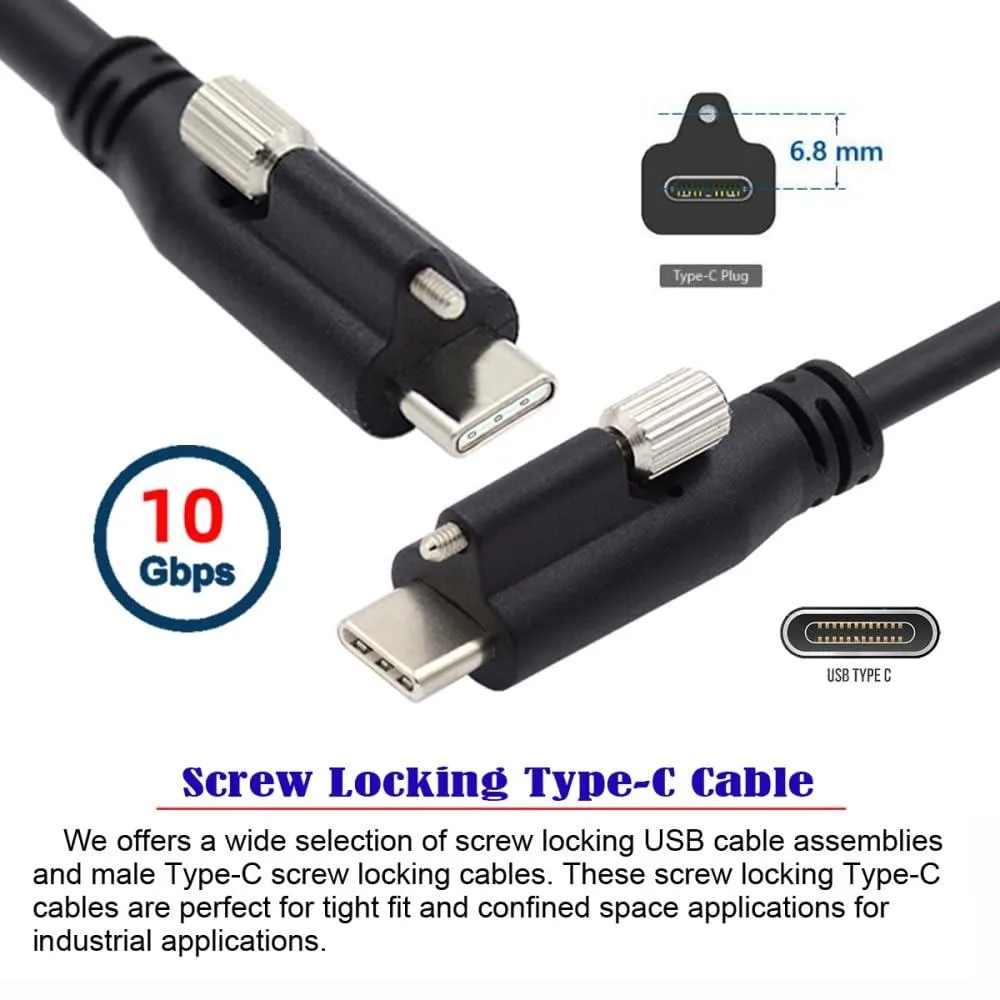

This locking USB 3.1 Type-C cable delivers 10Gbps data transfer and up to 65W power delivery for industrial machine vision cameras. Thumbscrew connectors on both ends prevent accidental disconnection in vibration-prone environments. The 120cm length suits typical enclosure routing while the 6.8mm screw-to-connector distance ensures panel-mount compatibility. It meets USB-C Vision Standard requirements for reliable camera integration.

Upgrade from Standard Friction-Fit Cables

Standard USB-C cables rely on friction alone, which can loosen under movement or panel vibration and interrupt critical image capture. This cable replaces those links when a secured connection is required for continuous operation. The jump is worth it for any machine vision rig, automated inspection cell or robotic arm where an unplugged camera stops the line. It also supersedes shorter fixed-length loom cables that limit camera placement.

Panel-Mount Ready for Enclosure Builds

The single panel-mount screw on one connector lets you bulkhead-mount the cable through a chassis wall or camera housing, sealing the enclosure while keeping the link secure. Reversible Type-C plugs simplify insertion inside tight cabinets. The cable carries both 10Gbps data and 20V 3.25A power, so a single run feeds the camera without a separate power lead. It frees up internal space by eliminating cable-management slack and secondary power wiring.

Highlights

  • 10Gbps data transfer for fast file movement
  • 65W power delivery charges devices quickly
  • Locking thumbscrew connector prevents accidental disconnection
  • 120cm cable length suits panel-mount setups
  • USB-C Vision Standard compliant for industrial cameras

Specifications

BrandFervit

Questions about this item

What panel cut-out size matches the 6.8 mm screw-to-connector distance?

The single panel-mount screw sits 6.8 mm from the USB-C face, so the cut-out must position the screw hole at that exact offset from the panel edge.

Which orientation do I align the reversible USB-C plug before tightening the thumbscrew?

Either orientation works; the plug is fully reversible, so insert it, then secure the thumbscrew without worrying about up or down.

When should I inspect or replace the cable in a machine-vision setup?

Check the locking thumbscrew and connector latch monthly for loosening or wear; replace the cable if the screw threads strip or the 10 Gbps link becomes unstable.
