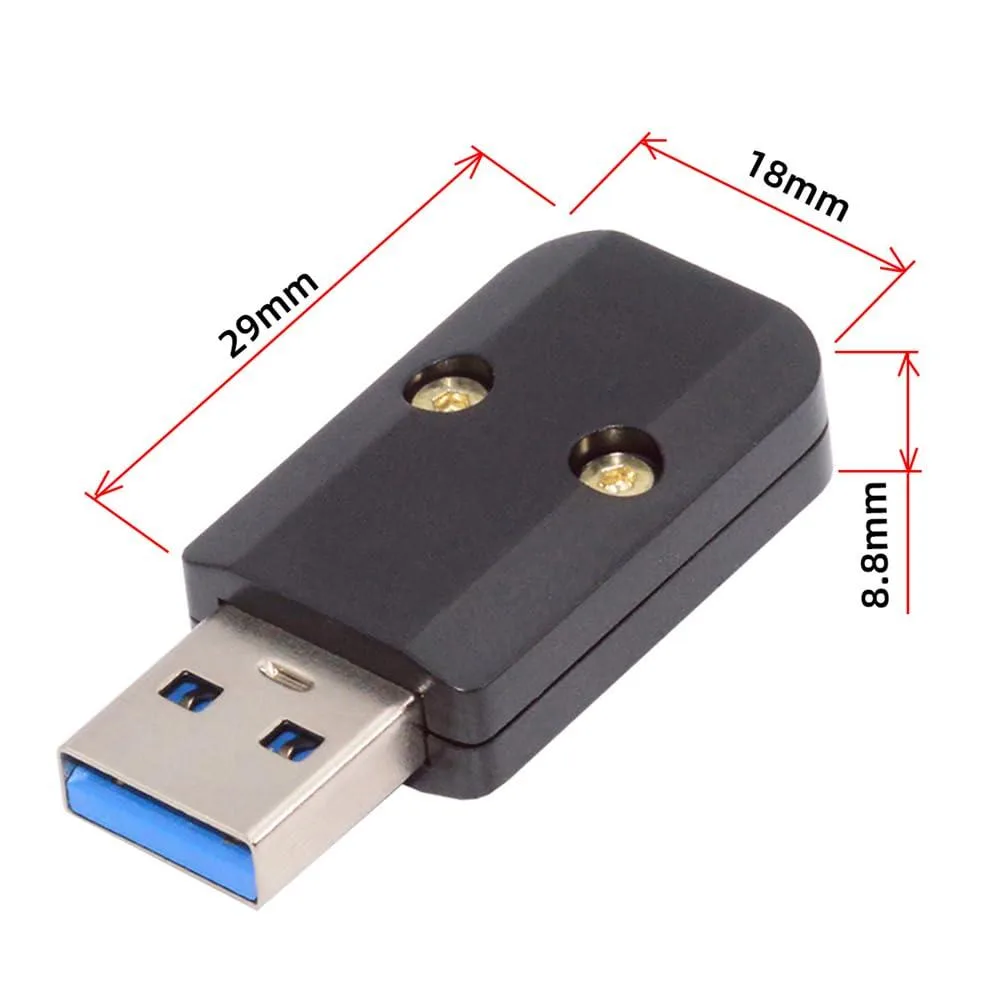

Black aluminium USB 3.0 Type-A male plug connector with screw nut for 6.0mm cable solder assembly

Fervit

Fervit USB 3.0 Type-A Male Plug Connector Solder Type Aluminum Alloy Shell Black for 6.0mm Cable

SKU CH-620N-XKFAF

A solder-type USB 3.0 Type-A male plug with an aluminum alloy shell for 6.0 mm cable, compliant with 5 Gbps Super-Speed

  • USB 3.0 Super-Speed at 5Gbps for fast data transfer
  • Backward compatible with USB 2.0 Hi-Speed 480Mbps and USB 1.1 Low-Speed 1.5Mbps
  • Aluminum alloy shell protects the plug for reliable performance
  • Solder-type design enables DIY cable customization for 6.0mm cable
  • Complete kit includes connector, top cover, bottom cover and screw nut

USB 3.0 Type-A Solder Plug for DIY Cables

This Fervit connector is a USB 3.0 Type-A male plug designed for solder-type assembly on cables with a 6.0 mm outer diameter. It suits hobbyists, repair technicians and OEM builders who need to create or replace custom Super-Speed links. The aluminium alloy shell adds mechanical protection for the internal contacts. Buyers who want a ready-made cable or a tool-less crimp connector will not find that here.

Thermals Noise and Power in Normal Use

As a passive metal-shell connector the part generates no heat and produces no audible noise during data transfer. It draws no power of its own; all current passes through to the attached cable and device. The aluminium housing helps dissipate any warmth from the cable conductors. No fan, radiator or active cooling is involved or required.

Included Parts and Their Effect

The pack supplies the connector body, a top cover, a bottom cover and a screw nut for strain relief and shell locking. A cable and a screwdriver are not included, so you must provide a 6.0 mm USB 3.0 cable and a suitable driver for final assembly. These components let you build a robust, shielded plug that meets Super-Speed electrical requirements.

Highlights

  • USB 3.0 Super-Speed at 5Gbps for fast data transfer
  • Backward compatible with USB 2.0 Hi-Speed 480Mbps and USB 1.1 Low-Speed 1.5Mbps
  • Aluminum alloy shell protects the plug for reliable performance
  • Solder-type design enables DIY cable customization for 6.0mm cable
  • Complete kit includes connector, top cover, bottom cover and screw nut

Specifications

BrandFervit

Questions about this item

How do I solder the wires to the USB 3.0 Type-A male plug and which step is often missed?

Strip the 6.0mm cable, solder each conductor to the corresponding pad on the connector, then fit the top cover, bottom cover and screw nut before tightening; the screw nut is frequently forgotten.

What part of this connector will need replacement after repeated plugging cycles?

The gold-plated contacts inside the Type-A male plug wear over time; when insertion feels loose or data drops to 480Mbps, replace the whole connector assembly.

At what cable length does signal loss first appear under sustained 5Gbps transfer?

The USB 3.0 specification limits reliable SuperSpeed operation to about three metres; beyond that, errors rise and the link falls back to 480Mbps Hi-Speed mode.
