Blue USB 3.0 panel cable with 90 degree male plug and female port 30cm long

Fervit

Fervit USB 3.0 Male to Female Type-A Panel Cable 90 Degree 30cm

SKU CH-MMKE-5KNH0

A 30 cm USB 3.0 Type-A panel cable with a 90-degree male-to-female connector for tight spaces, supporting 5 Gbps Super-Speed and backward compatibility

  • 90-degree angled connector fits tight spaces around ports
  • 30 cm cable length with 30 mm screw-hole spacing for panel mounting
  • USB 3.0 SuperSpeed 5 Gbps transfers data quickly
  • Backward compatible with USB 2.0 and 1.1 devices
  • Single-piece moulded construction withstands repeated insertion cycles

Right-Angle USB 3.0 Panel Cable for Tight Spaces

This Fervit adapter connects a standard USB 3.0 Type-A male plug to a female port using a 90-degree upward angle. The 30cm cable features screw holes spaced 30mm apart for secure panel mounting. It suits builders routing cables behind drive bays or inside compact enclosures where straight connectors would foul adjacent components or case walls.

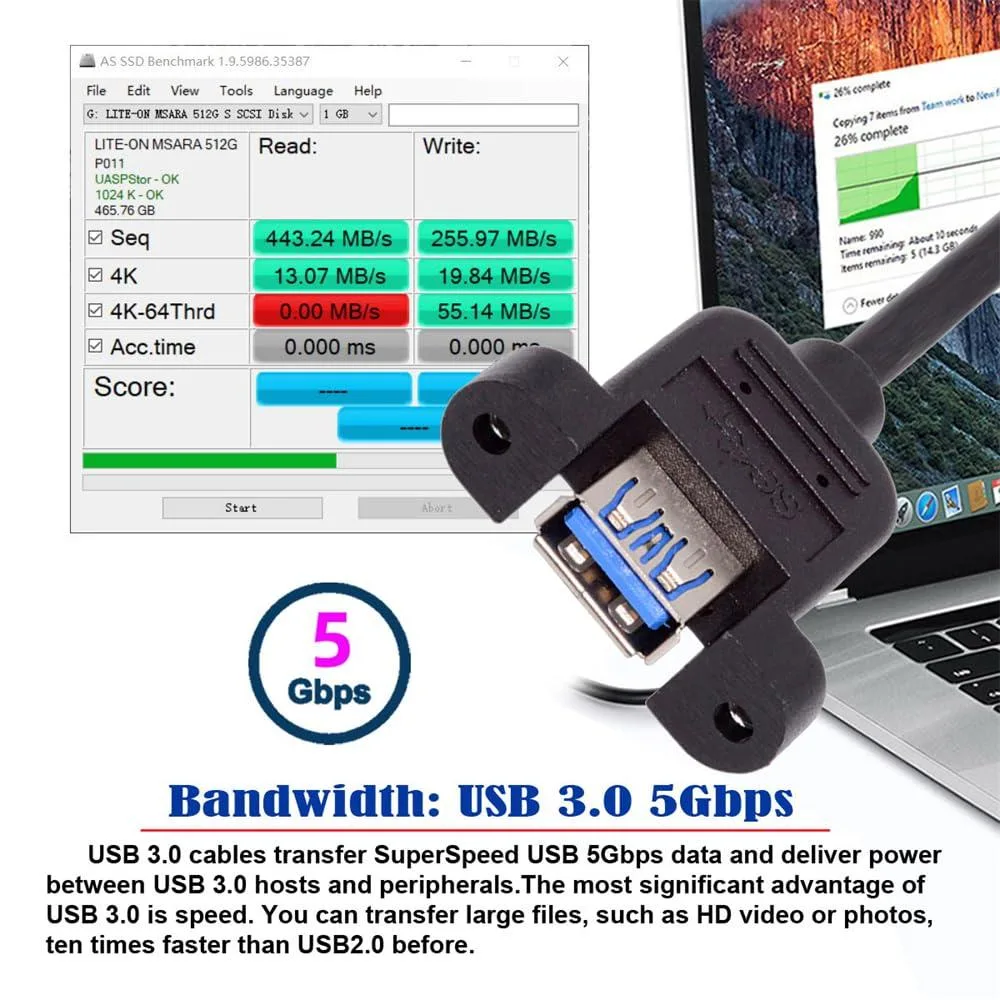

SuperSpeed 5Gbps Bandwidth With Legacy Support

The link runs at USB 3.0 SuperSpeed up to 5Gbps and falls back to USB 2.0 Hi-Speed at 480Mbps and USB 1.1 Low-Speed at 1.5Mbps. It handles flash drives, external SSDs, printers, hubs, keyboards, mice and cameras. The 30cm length limits reach to internal panel-to-device runs; it will not span full-tower chassis distances or external desk setups.

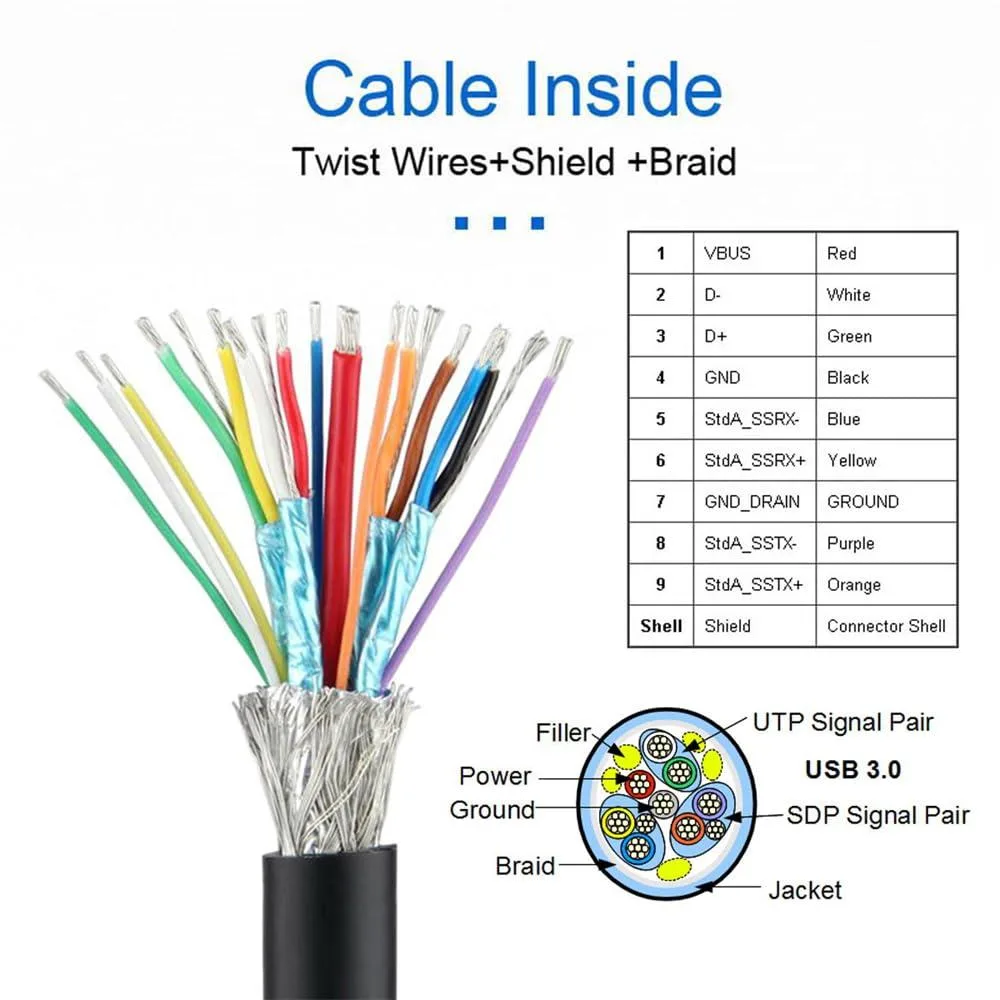

Passive Copper Construction

No active electronics or external power are required; the cable draws bus power only. The single-piece moulded shell resists flex fatigue at the right-angle junction. Heat and noise are negligible because the assembly is purely passive copper. The fixed 30cm length prevents excess cable clutter that can obstruct airflow in dense builds.

Highlights

  • 90-degree angled connector fits tight spaces around ports
  • 30 cm cable length with 30 mm screw-hole spacing for panel mounting
  • USB 3.0 SuperSpeed 5 Gbps transfers data quickly
  • Backward compatible with USB 2.0 and 1.1 devices
  • Single-piece moulded construction withstands repeated insertion cycles

Specifications

BrandFervit

Questions about this item

Will the 30 cm cable reach my front-panel header if the motherboard sits 30 mm from the case cutout?

The cable is 30 cm long and the panel bracket has screw holes spaced 30 mm apart, so it fits standard front-panel cutouts with that mounting pitch.

How can I verify the link is running at 5 Gbps after I plug in an external SSD?

Open Device Manager or System Information on Windows, or lsusb -t on Linux, and confirm the device enumerates at 5 Gbps SuperSpeed rather than 480 Mbps High-Speed.

Does the package include mounting screws for the 30 mm bracket holes, or do I supply them?

Only the angled male-to-female Type-A cable with the pre-attached panel bracket is supplied; mounting screws for the 30 mm holes are not included.
