Flat 50cm cable with dual USB 3.0 Type-A ports and 20-pin header

Fervit

Fervit USB 3.0 Dual Female Type-A to 20Pin 19Pin Header Cable 50cm

SKU CH-EBJZ-XH1J9

Panel-mount cable adds two USB 3.0 Type-A ports to a 20-pin motherboard header, delivering up to 5 Gbps throughput with a 50 cm ultra-flat design

  • Two Type-A ports from one 20-pin header
  • Up to 5Gbps throughput with USB 3.0 host and device
  • Ultra-flat slim cable saves space and eases routing
  • Panel-mount design with two screw holes for secure fit
  • 50 cm length suits front-panel chassis connections

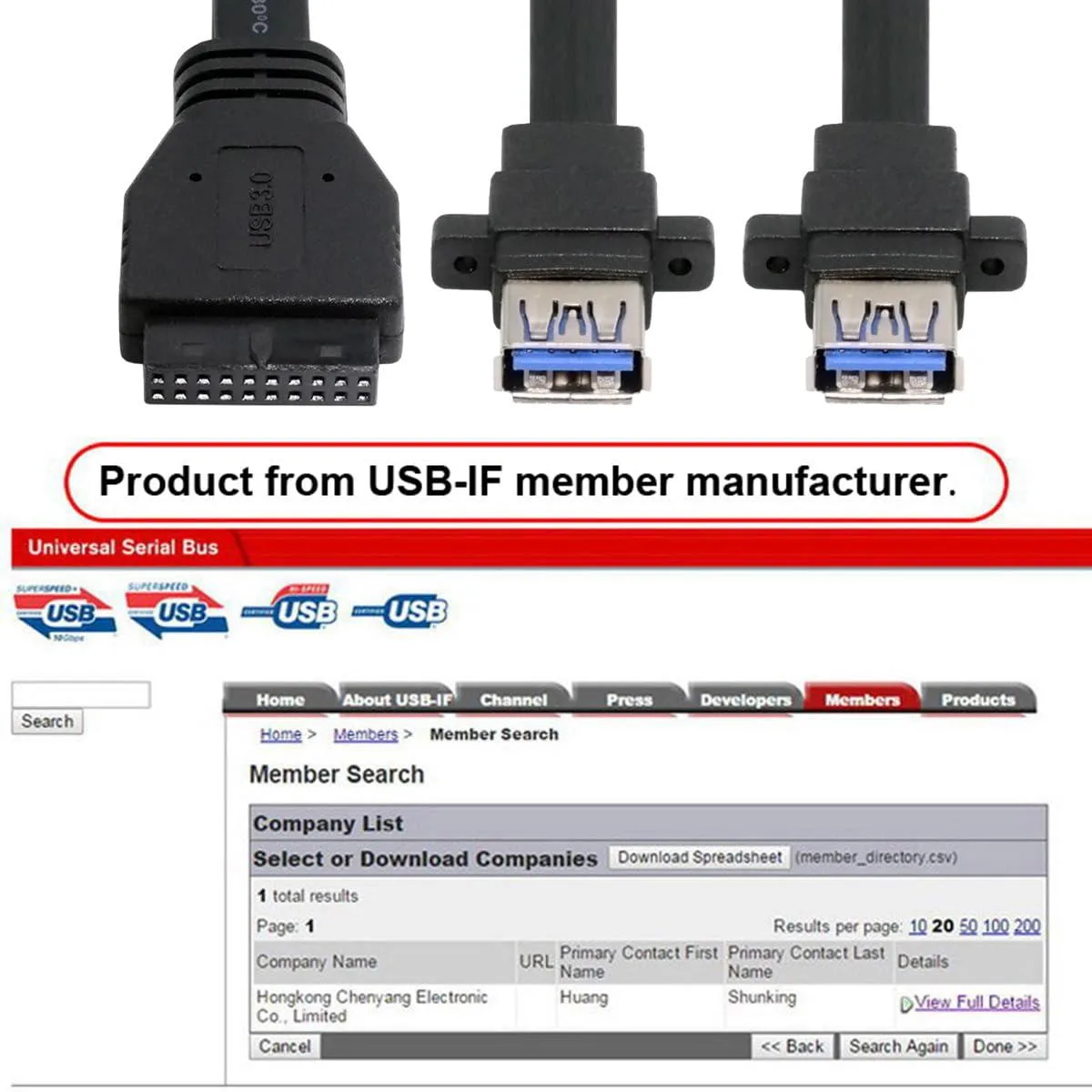

Dual USB 3.0 front-panel adapter

This Fervit cable converts a single motherboard 20-pin USB 3.0 header into two panel-mount Type-A ports. It is aimed at PC builders who need front or rear USB 3.0 access but only have one internal header available. The 50 cm flat ribbon keeps routing tidy inside compact cases.

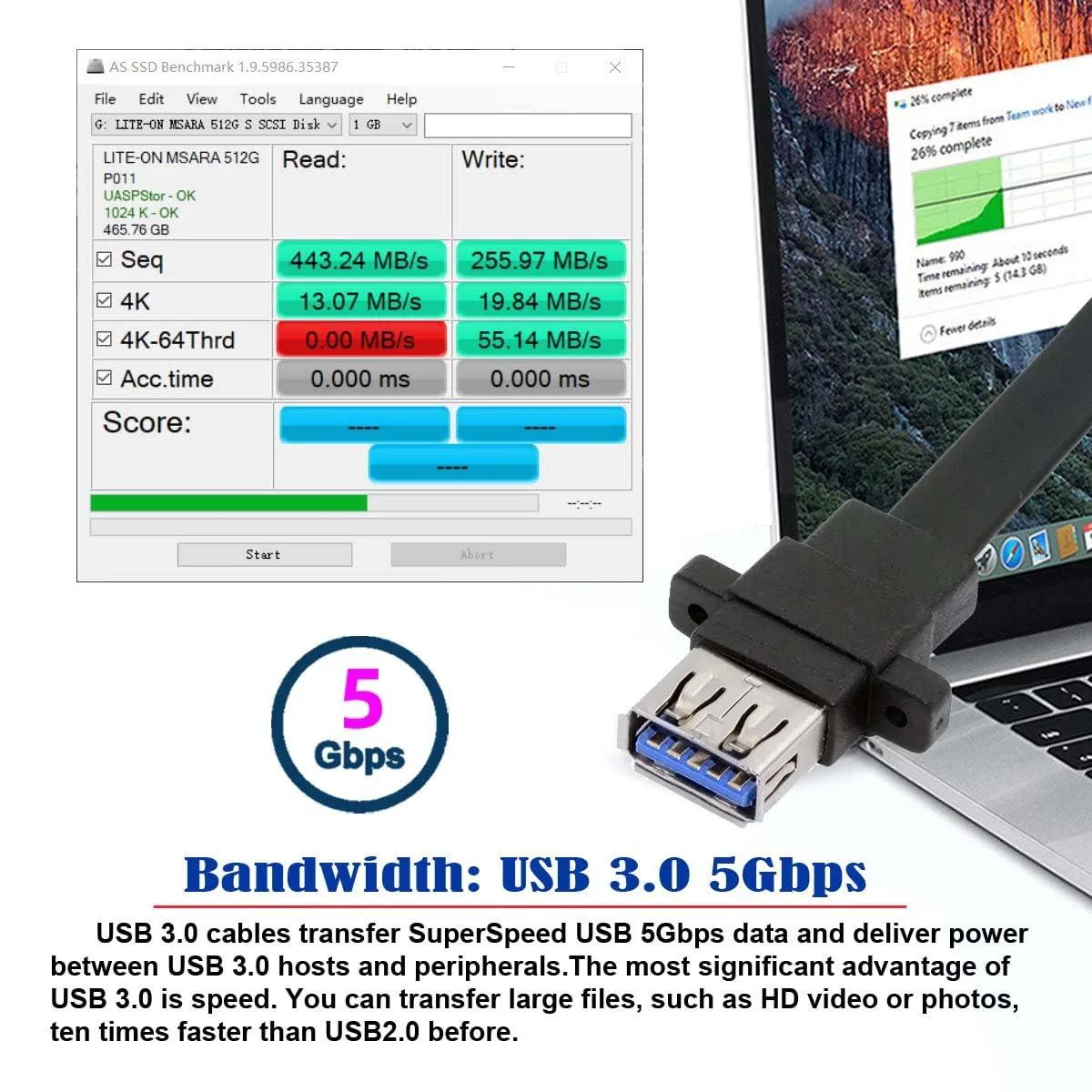

Two ports at 5 Gbps each

Both female ports share the header’s 5 Gbps bandwidth, so simultaneous heavy transfers will split throughput. The flat cable design eases installation in tight spaces but offers no shielding beyond the specification. It stops at USB 3.0 speeds and provides no power delivery beyond the header’s rated output.

20-pin header compatibility required

The connector fits a standard 19-pin USB 3.0 motherboard header; boards lacking this header cannot use the adapter. No driver is needed, but the host must support USB 3.0 to reach the stated throughput.

Highlights

  • Two Type-A ports from one 20-pin header
  • Up to 5Gbps throughput with USB 3.0 host and device
  • Ultra-flat slim cable saves space and eases routing
  • Panel-mount design with two screw holes for secure fit
  • 50 cm length suits front-panel chassis connections

Specifications

BrandFervit

Questions about this item

Will the 20-pin header cable work with a motherboard that only has a 19-pin USB 3.0 header?

The cable is designed for a 20-pin USB 3.0 header; a 19-pin header uses a different keying and pinout, so it will not connect properly.

How can I verify the link is running at USB 3.0 speeds after installation?

In Device Manager the port should appear as a USB 3.0 root hub, and a USB 3.0 flash drive should show transfer rates well above the USB 2.0 ceiling.

Does the package include mounting screws for the two screw holes on the female panel?

The cable has two screw holes for panel mounting, but screws are not included and must be sourced separately.
