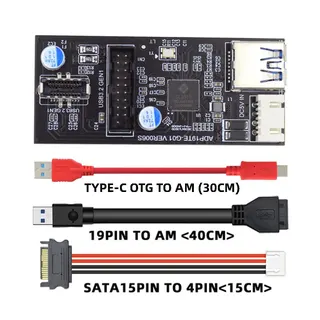

Small green circuit board with USB-C, 19/20-pin and Type-E connectors plus SATA power cable

Fervit

Fervit USB 3.0 19/20Pin & Type-C to Dual 20Pin & Type-E Adapter with SATA Power

SKU CH-XM59-D4SVQ

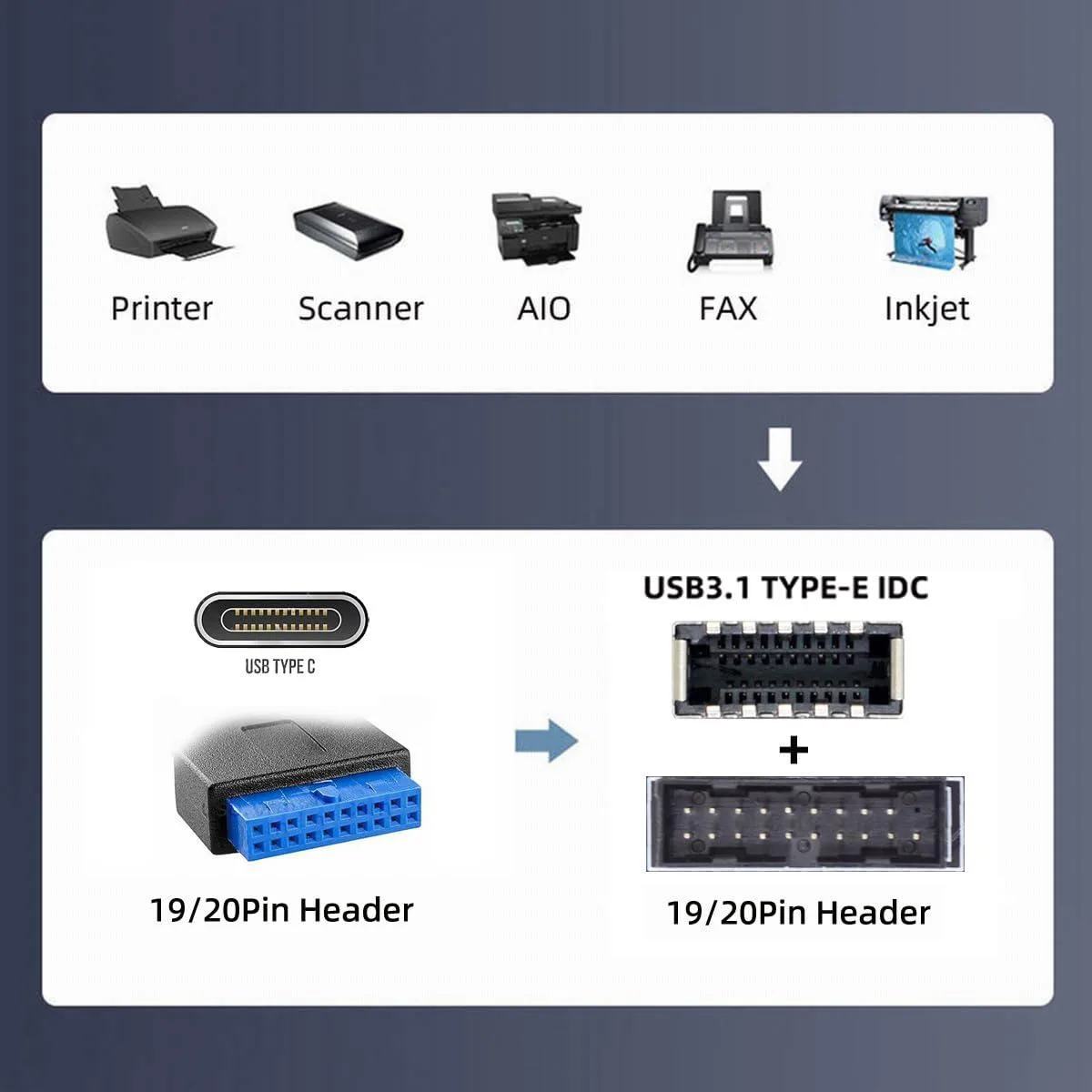

Converts a USB 3.0 19/20-pin or Type-C header into dual USB 3.0 20-pin and Type-E ports with SATA power for 5 Gbps data

  • Converts Type-C or 19/20Pin header to dual USB 3.0 20Pin and Type-E ports
  • GL3510 chipset delivers full 5Gbps bandwidth utilisation across both outputs
  • Extra SATA power cable powers 2.5in drives that exceed header current limits
  • Supports simultaneous two-way data transfer on each port at USB 3.0 speeds
  • Compatible with front panels, hubs, card readers and other USB 3.0 20Pin devices

Connector Splitter for Front-Panel Expansion

This adapter converts a single USB Type-C or 19/20-pin motherboard header into two USB 3.0 20-pin headers and one Type-E header. It is designed for builders who need additional front-panel USB ports or internal hub connections. The GL3510 chipset enables 5 Gbps throughput across the shared bus. The board does not carry video, audio or Power Delivery signals.

Check Header Type and Power Source

Verify that your motherboard provides either a USB Type-C header or a 19/20-pin USB 3.0 header as the host connection. The adapter requires a SATA power cable from the PSU to supply extra current for attached devices. Without that auxiliary power, high-draw peripherals such as portable 2.5-inch drives may not operate reliably. The Type-E port is data-only and cannot be used for display or docking functions.

SATA Power Cable Enables High-Draw Devices

The bundled SATA power lead draws 5 V directly from the power supply, removing the current limit of the motherboard header. This allows two ports to run simultaneously at full 5 Gbps speed while powering bus-powered SSDs or hard drives. No driver or software installation is needed; the GL3510 presents the extra ports as a standard USB hub to the operating system.

Highlights

  • Converts Type-C or 19/20Pin header to dual USB 3.0 20Pin and Type-E ports
  • GL3510 chipset delivers full 5Gbps bandwidth utilisation across both outputs
  • Extra SATA power cable powers 2.5in drives that exceed header current limits
  • Supports simultaneous two-way data transfer on each port at USB 3.0 speeds
  • Compatible with front panels, hubs, card readers and other USB 3.0 20Pin devices

Specifications

BrandFervit

Questions about this item

Does the adapter include the SATA power cable or must I buy it separately?

The adapter ships with an extra SATA power cable included in the box, so no separate purchase is needed.

Should I choose the Type-C input or the 19/20-pin header for my motherboard?

Use whichever header your motherboard provides; the adapter accepts either a USB 3.0 19/20-pin or a Type-C host connection.

What does the 5Gbps rating mean when I connect a 2.5-inch drive?

The GL3510 chipset delivers up to 5Gbps throughput, which is 10 times faster than USB 2.0 and sufficient for a portable 2.5-inch SSD or HDD.
