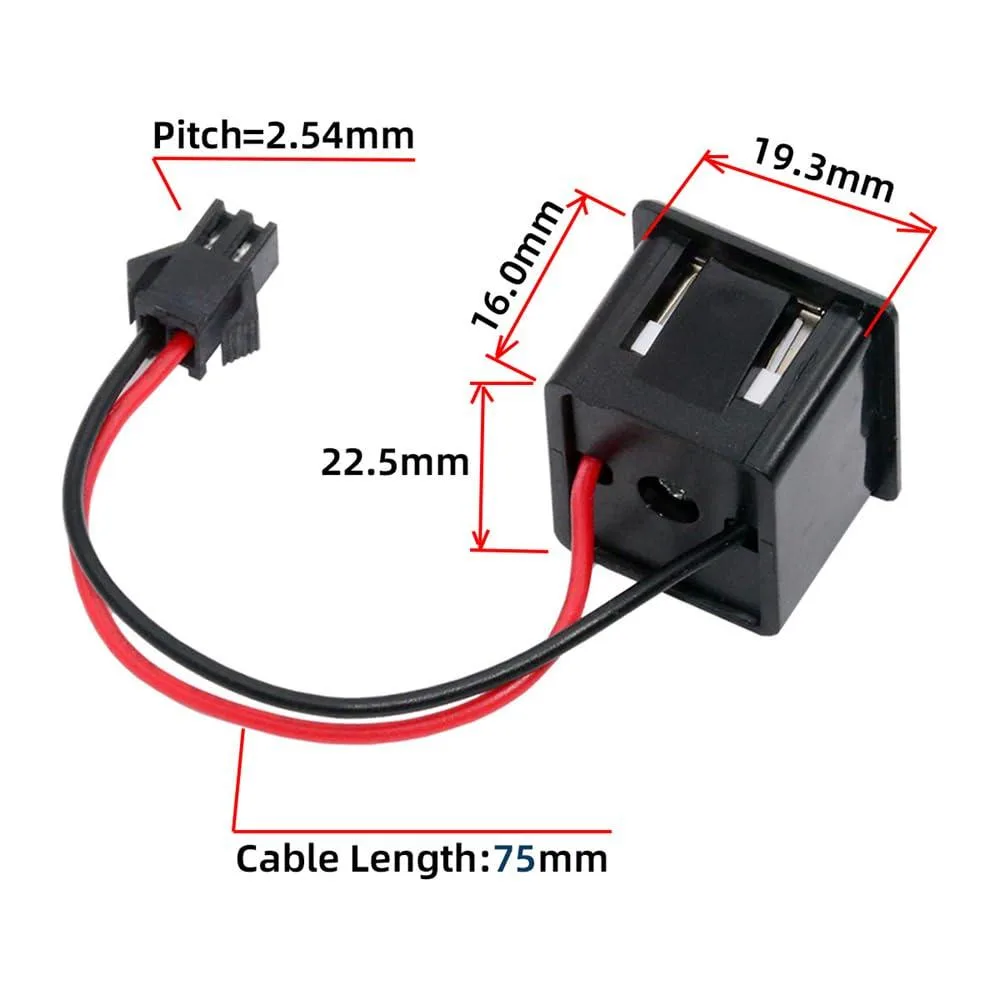

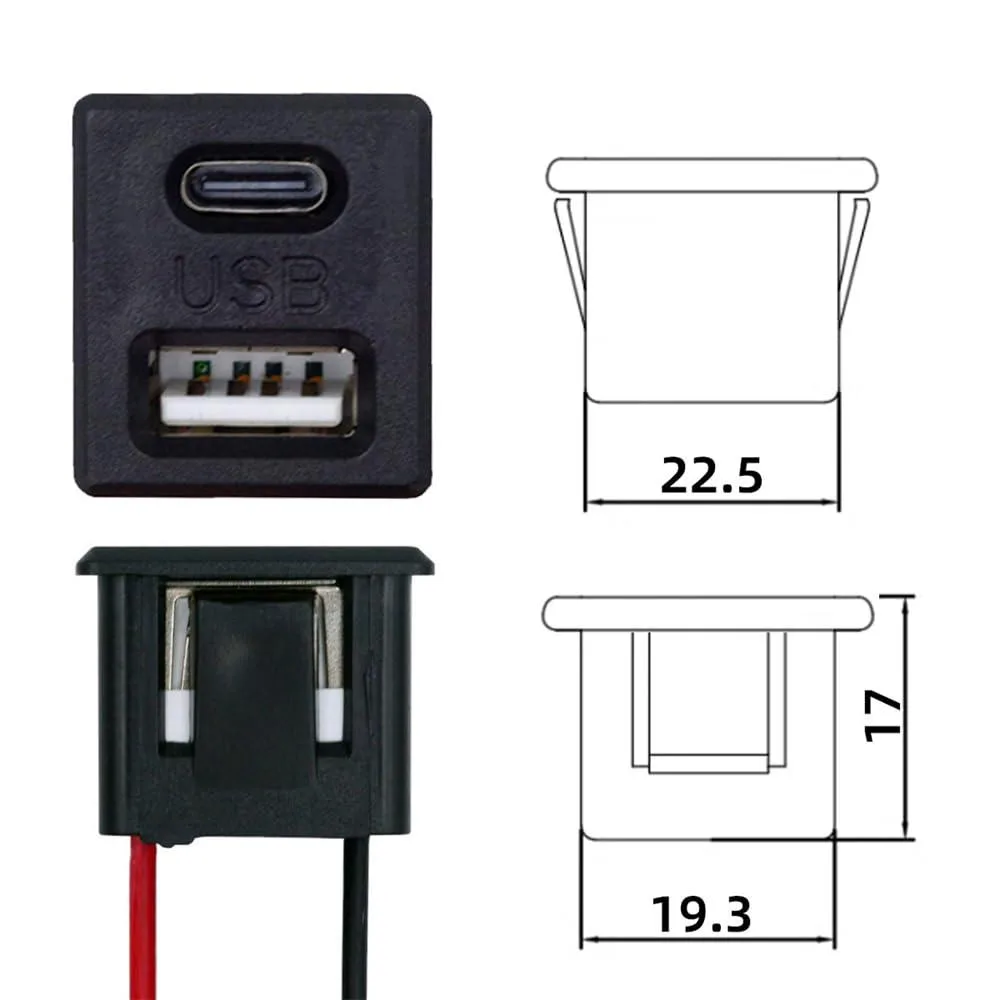

Short cable with USB-C and USB-A female ports on a 2-pin 2.54mm header, 75mm long

Fervit

Fervit USB 2.0 Type-C & Type-A Female to 2-Pin Header Cable 75mm 2.54mm Pitch Latch Mount

SKU CH-WH39-PAK46

Connects USB Type-C or Type-A devices to a 2-pin header with latch mounting for 5 V power delivery

  • Latch-mount design secures the connection inside a cabinet
  • 75 mm cable reaches tight internal headers without strain
  • Dual Type-C and Type-A female ports accept either plug
  • Delivers up to 5 V 2 A shared power to attached devices
  • 54 mm pitch header matches standard motherboard pin spacing

Internal USB header adapter

The Fervit cable converts a single 2-pin motherboard header into both a USB Type-C and a USB Type-A female socket. It is intended for builders adding front-panel or internal USB power ports to a custom chassis or enclosure. The latch-mount sockets lock cables in place for a secure fit inside the case.

Replaces loose header wiring

This assembly removes the need to hand-crimp individual pins or solder flying leads to a raw 2.54mm header. The jump is worth it when a project requires both connector types from one internal USB 2.0 header and a tidy, keyed connection is preferred over exposed pins. It supplies up to DC 5V 2A shared across both ports.

Fits 2.54mm pitch headers

The 75mm lead reaches nearby front-panel cut-outs without excess slack. Each latch-mount socket accepts standard Type-C or Type-A plugs for charging phones, tablets or other USB-powered peripherals. The cable carries power only, so data lines are not connected and no USB controller resources are consumed.

Highlights

  • Latch-mount design secures the connection inside a cabinet
  • 75 mm cable reaches tight internal headers without strain
  • Dual Type-C and Type-A female ports accept either plug
  • Delivers up to 5 V 2 A shared power to attached devices
  • 54 mm pitch header matches standard motherboard pin spacing

Specifications

BrandFervit

Questions about this item

What pitch header does the 75 mm cable plug into?

The cable terminates in a 2.54 mm pitch 2-pin header that slots onto the matching motherboard or controller pins.

Which way round does the latch-mount socket face when I screw it into the panel?

The latch tabs point outward; press the socket through the cut-out until the tabs click against the inner panel face, then secure with the supplied screws.

Will the shared 5 V 2 A limit drop if I charge a phone and a tablet at the same time?

Yes — the 2 A ceiling is shared between the Type-C and Type-A ports, so simultaneous devices split the available current.
