Five small black USB Micro-B panel sockets with threaded metal caps

Fervit

Fervit USB 2.0 Micro-B Female Receptacle Socket 5pcs Waterproof IP68 480Mbps

SKU CH-FQJ0-SWWYX

A pack of five panel-mount Micro-B receptacles rated IP68 waterproof with potting, supporting USB 2.0 data at 480Mbps and 5V 2A power

  • USB 2.0 data rates up to 480 Mbps for fast file transfers
  • DC 5 V 2 A power delivery charges devices while transferring data
  • Panel-mount design extends a Micro-B connection to enclosures or cabinets
  • IP68-rated seal resists water and dust in marine or wet environments
  • Internal potting blocks moisture even if the cable seal is missing

Micro-B socket kit for panel mounting

This pack contains five USB 2.0 Micro-B female receptacles designed for surface-mount installation on a panel or enclosure. Each connector accepts a standard Micro-USB plug so data and power pass through a single port. The parts are new and intended for DIY or OEM projects that need a fixed external connection point.

IP68 sealing when mated

The housing achieves an IP68 rating once a cable is plugged in and the seal cap is fitted, blocking dust and water ingress in marine, warehouse or other wet environments. Internal potting provides a secondary barrier if the cable is damaged or the cap is left off. This protection is the decisive specification for any build exposed to moisture or debris.

Passive component with no active cooling

The sockets have no moving parts, draw no power themselves and generate no audible noise. They simply carry up to 480 Mbps of data and up to 5 V at 2 A from the host to the attached device. Thermal management is therefore not a consideration for the connector itself.

Highlights

  • USB 2.0 data rates up to 480 Mbps for fast file transfers
  • DC 5 V 2 A power delivery charges devices while transferring data
  • Panel-mount design extends a Micro-B connection to enclosures or cabinets
  • IP68-rated seal resists water and dust in marine or wet environments
  • Internal potting blocks moisture even if the cable seal is missing

Specifications

BrandFervit

Questions about this item

What does the 480Mbps rating mean once this socket is soldered into a real device?

The socket supports USB 2.0 High-Speed signalling, so the 480Mbps figure is the maximum theoretical throughput between a USB 2.0 host and a Micro-B device when both ends are USB 2.0 compliant.

Which interface standard does the socket use and what does that limit in practice?

It uses the USB 2.0 Micro-B interface, which caps real-world data rates at the USB 2.0 High-Speed ceiling of 480Mbps and power delivery at 5V 2A.

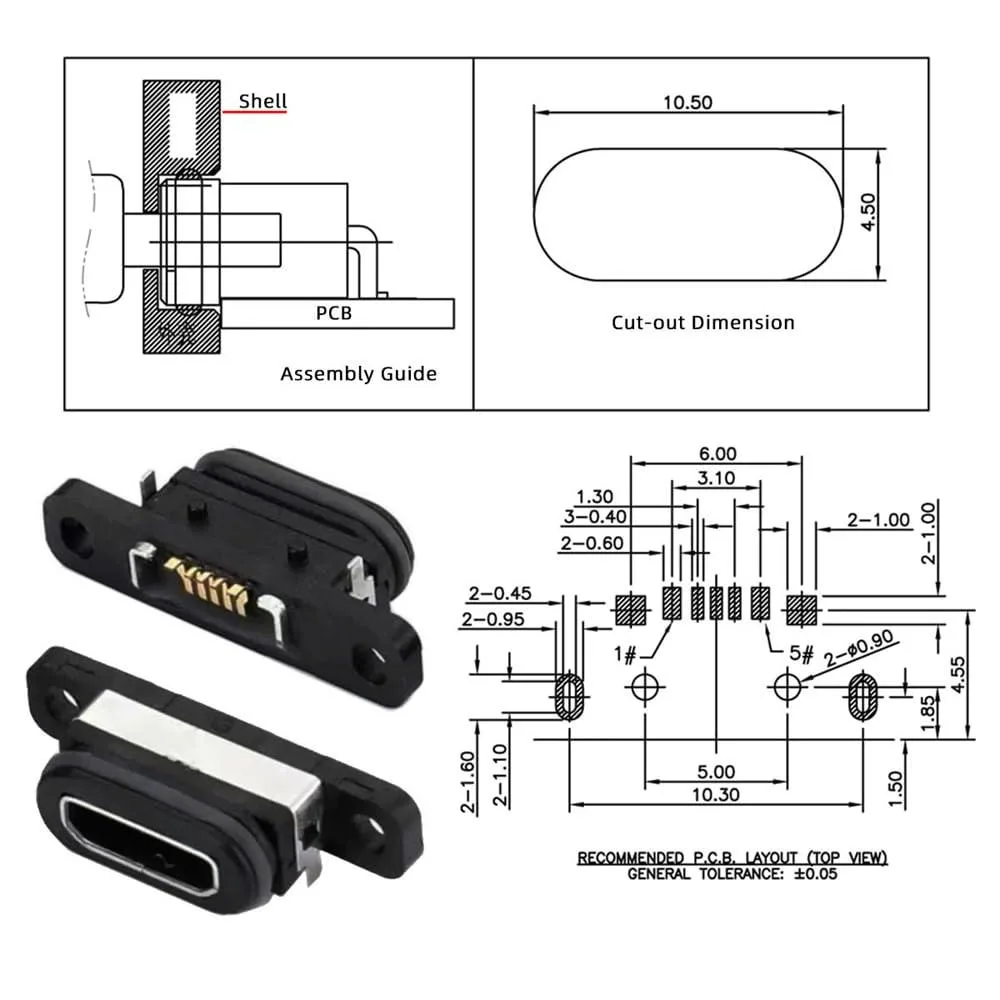

What physical mounting does the receptacle need to fit into a panel or enclosure?

The connector is designed for PCB through-hole or surface-mount soldering and includes a panel-mount flange so it can be secured to a chassis cut-out for a watertight seal.
