A flat USB-C female socket and a rectangular USB-A female socket sit side by side on a short black cable ending in a two-pin header

Fervit

Fervit Type-A & Type-C Female to 2-Pin Header Cable 2.54mm Pitch USB 2.0 480Mbps 5V/20V 65W PD

SKU CH-TKE4-GSH4T

Adds USB Type-A and Type-C ports with 480 Mbps data and up to 65 W power delivery via a 2.54 mm pitch 2-pin header

  • Delivers up to 20 V DC for fast charging with USB 2.0 PD devices
  • Supports up to 65 W Power Delivery for high-wattage USB-C equipment
  • Reversible Type-C plug inserts either way for hassle-free connections
  • Transfers data at 480 Mbps over USB 2.0 for reliable peripheral links
  • Screw-nut mount with 2.54 mm pitch header secures the cable inside a chassis

USB 2.0 Type-A & Type-C header cable

This Fervit adapter converts a 2.54 mm 2-pin motherboard header into both a Type-A and a Type-C female socket for internal front-panel or cabinet mounting. It handles USB 2.0 signals at 480 Mbps and delivers up to 65 W of power when paired with a compliant PD source. Builders adding front USB ports to a custom chassis will find the screw-mount flange secures the assembly firmly.

Sustained power delivery and data stability

The cable supports DC 5 V to 20 V negotiation, allowing continuous 65 W charging for laptops or tablets without throttling during long sessions. USB 2.0 bandwidth remains steady at 480 Mbps for file transfers, backups or peripheral use, so throughput does not degrade once the initial burst ends. The reversible Type-C plug orientation eliminates connection failures caused by upside-down insertion.

Compatibility checks before ordering

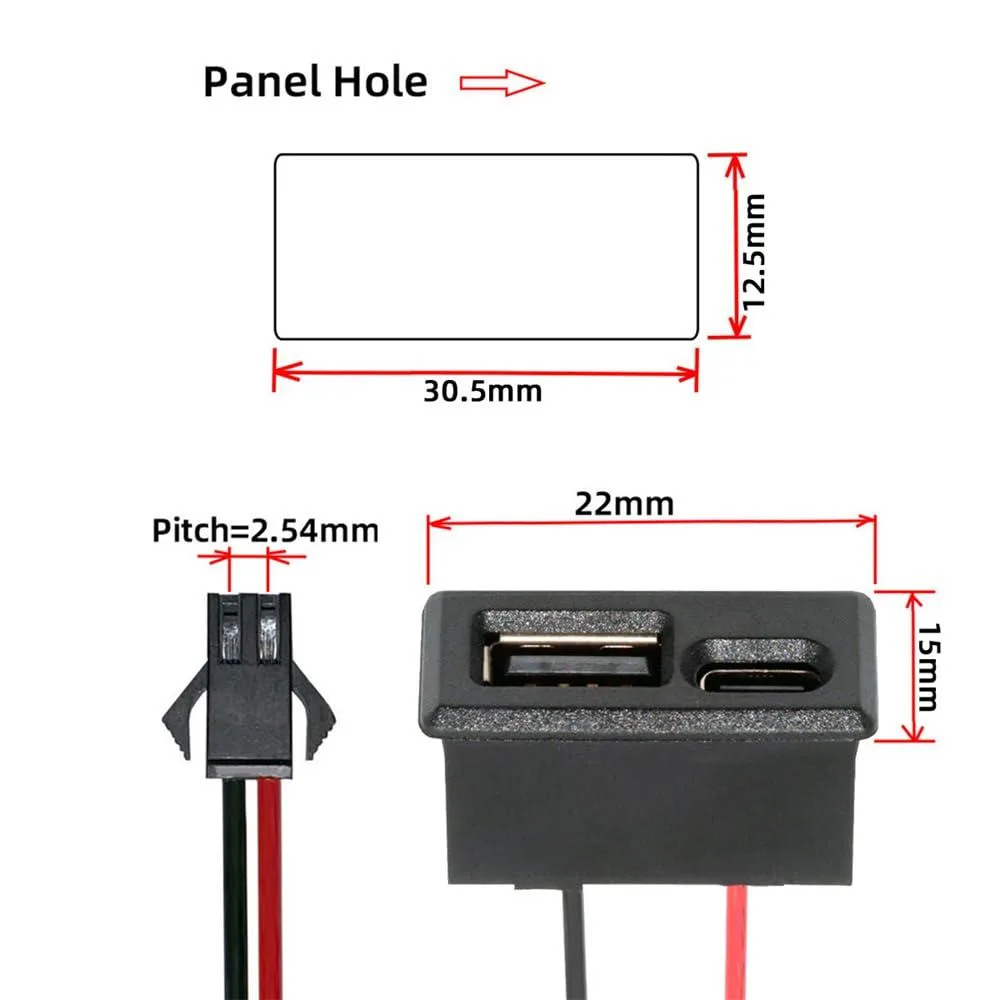

Verify that your motherboard or controller provides a standard 2.54 mm pitch 2-pin USB header with the correct pin-out for power and data. Ensure the chosen Type-C power source and end device both support PD negotiation up to 20 V so the 65 W ceiling can be reached. Confirm the cabinet cut-out matches the screw-mount flange dimensions for a flush, secure fit.

Highlights

  • Delivers up to 20 V DC for fast charging with USB 2.0 PD devices
  • Supports up to 65 W Power Delivery for high-wattage USB-C equipment
  • Reversible Type-C plug inserts either way for hassle-free connections
  • Transfers data at 480 Mbps over USB 2.0 for reliable peripheral links
  • Screw-nut mount with 2.54 mm pitch header secures the cable inside a chassis

Specifications

BrandFervit

Questions about this item

Does the 2.54 mm pitch header cable run warm when delivering 65 W continuously?

The cable is rated for up to 20 V and 65 W power delivery; heat will depend on your enclosure airflow and the attached PD source.

What must my motherboard or panel provide for the 2-pin header connection to work?

A standard 2.54 mm pitch 2-pin header with matching pin-out is required on the host board or front-panel PCB.

Will the USB 2.0 480 Mbps link still function if I plug a legacy Type-A flash drive into the female port?

Yes, the female Type-A port supports USB 2.0 at 480 Mbps, so older Type-A peripherals will operate at that speed.
