Right-angled USB 3.0 Type-A male to female panel header cable, 30 cm, 90-degree connector, screw holes 30 mm apart

Fervit

Fervit Right Angled USB 3.0 Male to Female Type-A Panel Header Cable 90 Degree 30cm

SKU CH-JZ4W-J36PD

A 30 cm right-angled USB 3.0 Type-A panel header cable with 90-degree connector and 30 mm screw-hole spacing for tight spaces

  • Right-angle connector fits tight spaces around female ports
  • 30 cm cable length with 30 mm screw-hole spacing for panel mounting
  • USB 3.0 Super-Speed 5 Gbps and backward compatible with USB 2.0 and 1.1
  • Single-piece moulded construction for durable daily use
  • Compatible with keyboards, mice, flash drives, printers, hubs, SSDs and cameras

Right-Angled USB 3.0 Panel Cable

This 30cm cable carries a USB 3.0 Type-A male plug and a matching female header with a 90-degree bend. It is built for system integrators and DIY builders who need to route a front-panel or internal USB connection where a straight connector would foul nearby components.

Fits Tight Internal Spaces

The right-angle moulding lets the cable sit flush against a motherboard header or front-panel PCB even when clearance is minimal. Screw holes spaced 30mm apart secure the female end to a chassis bracket, preventing strain on the header pins during device insertion or removal.

Backward-Compatible Speed Support

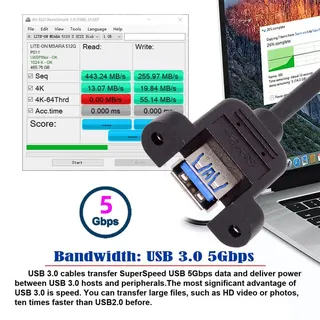

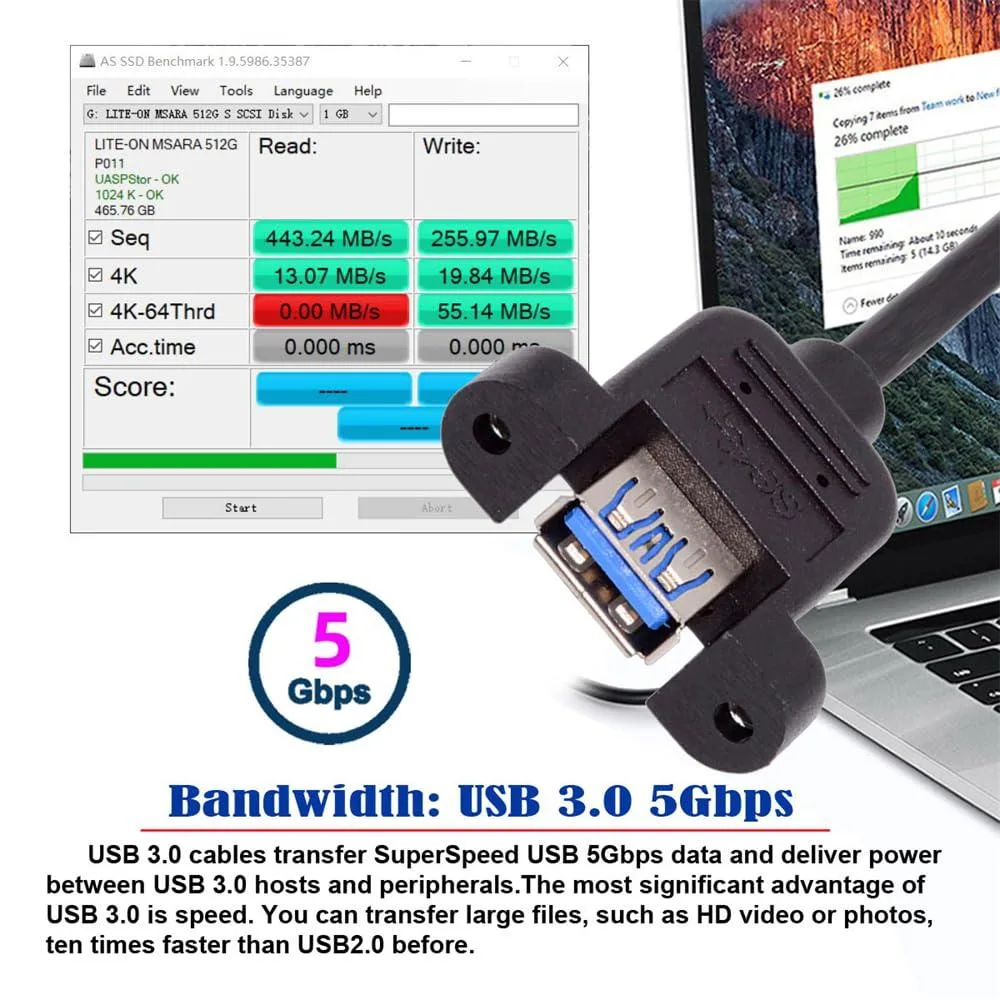

The link negotiates at USB 3.0 Super-Speed 5Gbps and falls back to USB 2.0 Hi-Speed 480Mbps or USB 1.1 Low-Speed 1.5Mbps automatically. Single-piece moulded construction protects the solder joints from repeated plug cycles, so the cable stays reliable through many peripheral swaps.

Highlights

  • Right-angle connector fits tight spaces around female ports
  • 30 cm cable length with 30 mm screw-hole spacing for panel mounting
  • USB 3.0 Super-Speed 5 Gbps and backward compatible with USB 2.0 and 1.1
  • Single-piece moulded construction for durable daily use
  • Compatible with keyboards, mice, flash drives, printers, hubs, SSDs and cameras

Specifications

BrandFervit

Questions about this item

How far apart are the mounting screw holes on the 30 cm panel header?

The two screw holes are spaced 30 mm apart, matching standard panel-mount brackets.

Does the right-angled connector get warm or draw extra power during continuous 5 Gbps transfers?

The cable is passive copper with no active electronics, so it adds no measurable heat or power draw under sustained loads.

What motherboard header does the male end plug into for front-panel USB 3.0?

The male connector fits a standard 19-pin USB 3.0 front-panel header found on most desktop boards.
