Small rectangular 6-pin female connector with metallic shell and black insulator

Fervit

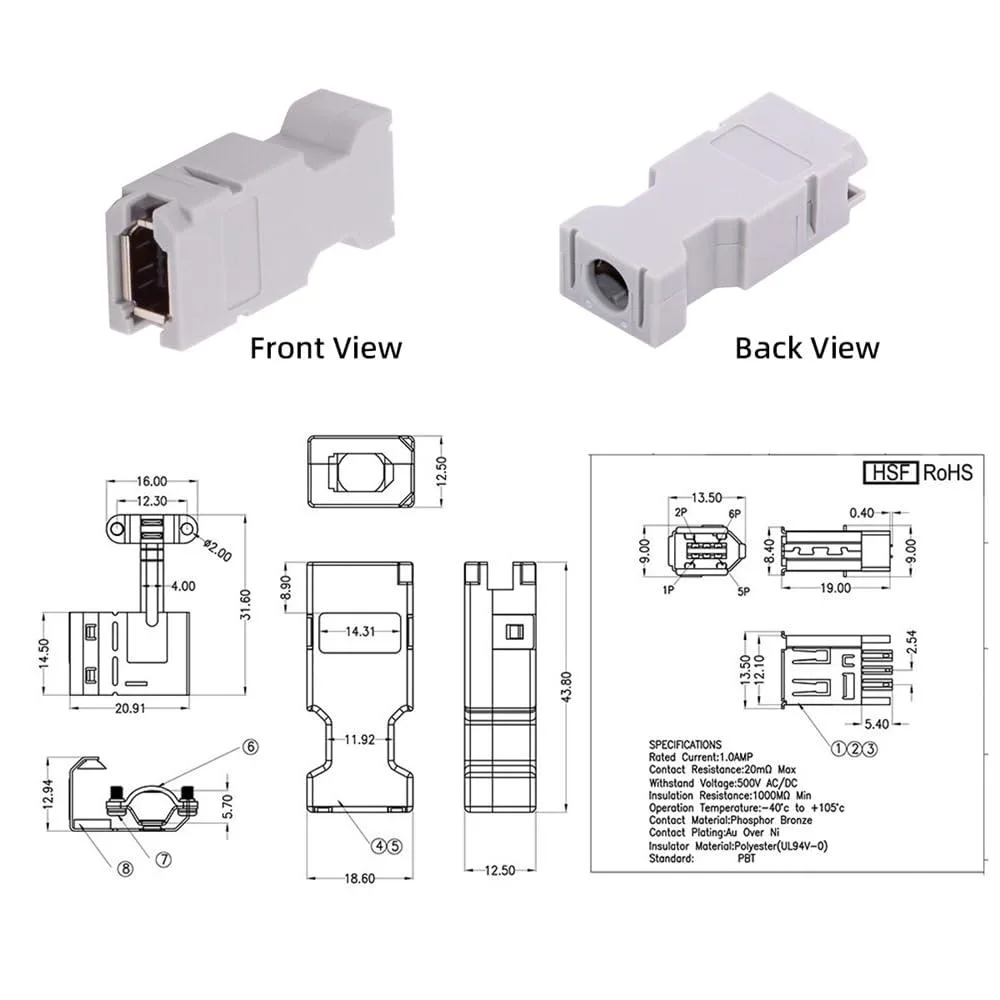

Fervit IEEE 1394 6-Pin Female CN3 Socket Connector

SKU CH-PJMP-ZWR5E

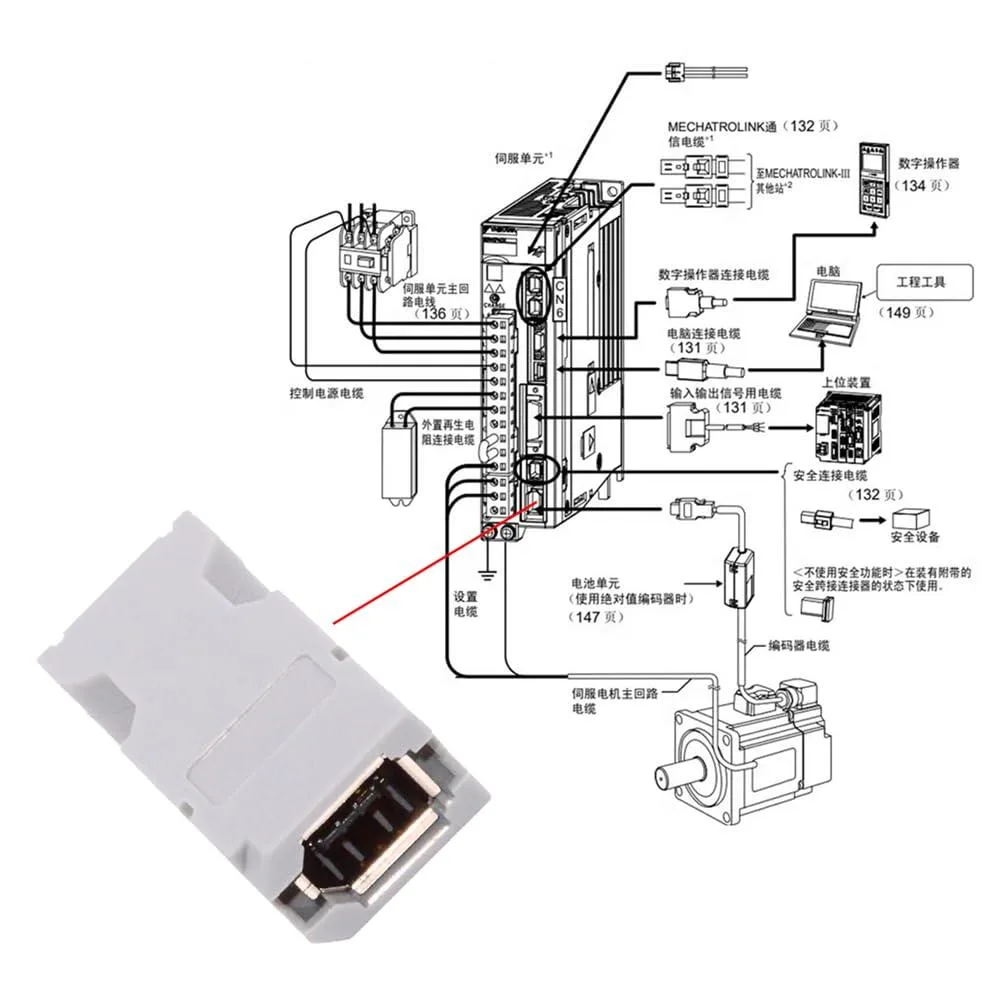

A 6-pin female CN3 socket for servo encoder connections, compatible with Yaskawa, Molex, 3M and Panasonic part numbers

  • 6-pin female connector fits Yaskawa, Molex and Panasonic servo encoders
  • Gold-plated copper alloy contacts rated for 2 A continuous current
  • Single-piece moulded PBT housing withstands -55 °C to +105 °C operation
  • 500 V DC withstand voltage and 1000 MΩ insulation resistance ensure signal integrity
  • Maximum 30 mΩ contact resistance maintains low-loss encoder connections

Industrial Servo Connector

The Fervit IEEE 1394 6-pin female CN3 socket is a solder-style I/O connector built for industrial servo device connections. It serves engineers and technicians maintaining or assembling motion-control equipment that uses this specific encoder interface.

Gold-Plated Contacts & Molded Shell

A copper-alloy shell and PBT insulator house gold-plated copper-alloy contacts rated for 2A current. The single-piece molded construction resists vibration and handles a temperature range of -55 to +105 °C, while maximum contact resistance stays at 30m and insulation resistance reaches 1000M.

Direct Replacement for OEM Encoder Plugs

This connector replaces worn or damaged encoder plugs on compatible Yaskawa, Panasonic, Molex and 3M servo cables without rewiring the entire harness. The jump is worth it when the original CN3 socket shows intermittent contact or insulation breakdown and a board-level solder repair is preferred over a full cable assembly swap.

Highlights

  • 6-pin female connector fits Yaskawa, Molex and Panasonic servo encoders
  • Gold-plated copper alloy contacts rated for 2 A continuous current
  • Single-piece moulded PBT housing withstands -55 °C to +105 °C operation
  • 500 V DC withstand voltage and 1000 MΩ insulation resistance ensure signal integrity
  • Maximum 30 mΩ contact resistance maintains low-loss encoder connections

Specifications

BrandFervit

Questions about this item

What current does the IEEE 1394 6-pin female CN3 socket handle in practice?

The connector is rated for 2 A continuous current, with a maximum contact resistance of 30 mΩ and insulation resistance of at least 1000 MΩ.

What physical space and mounting style does the 6-pin female CN3 connector require?

It is a single-piece moulded solder-wire connector with a copper-alloy shell and PBT insulator; it mounts by soldering wires directly to the six gold-plated contacts.

How is the Fervit CN3 socket installed, and which step do people often get wrong?

Strip and tin each wire, solder to the six gold-plated contacts, then verify insulation resistance exceeds 1000 MΩ before applying power; the common error is skipping the insulation test.
