Black internal USB 2.0 panel with two Type-A ports, 30cm cable, 9-pin header and SATA power connector, mounted on 12cm bracket

Fervit

Fervit Dual USB 2.0 Internal Panel to 9-Pin Motherboard Cable with SATA Power 12cm Bracket

SKU CH-27VA-TYT4A

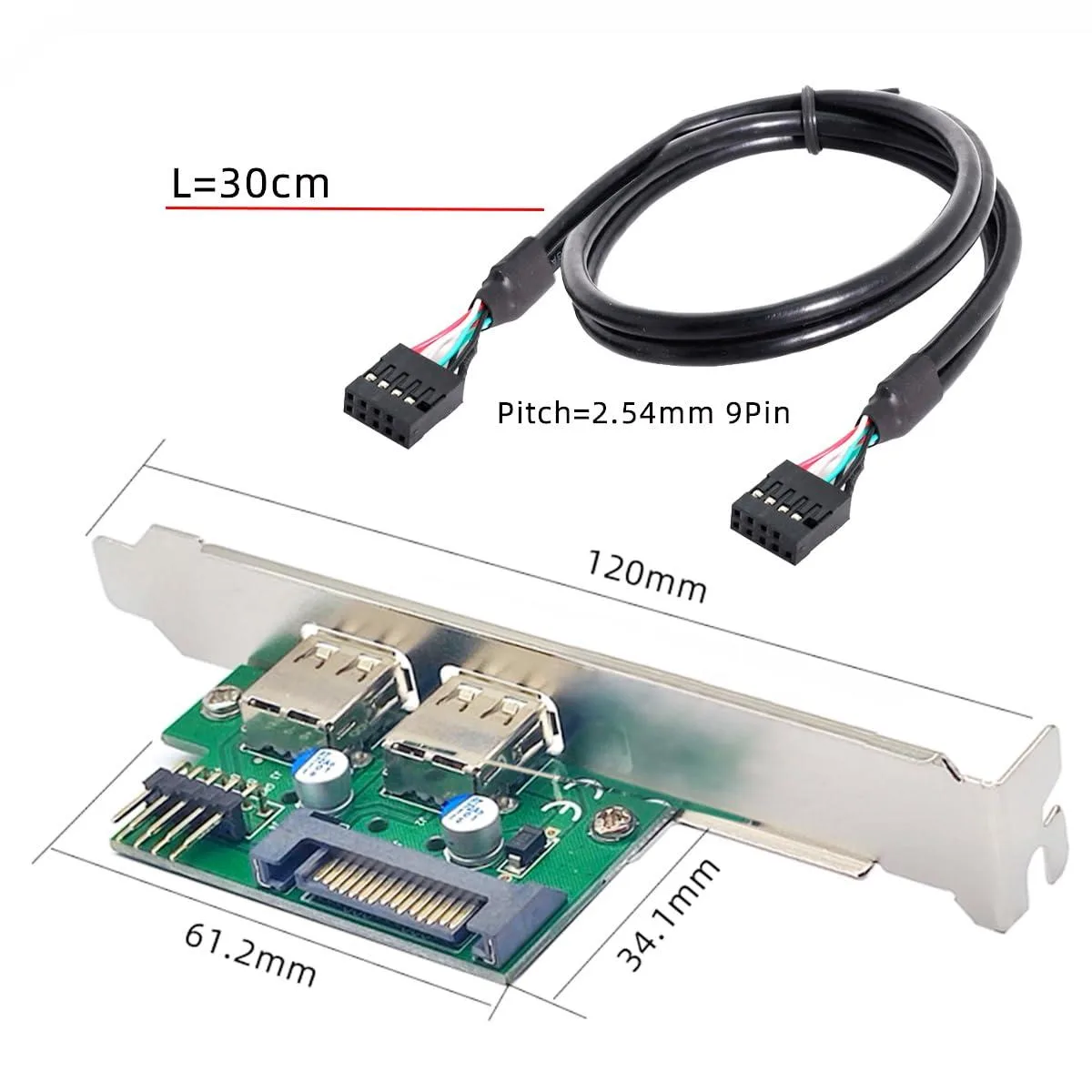

Adds two USB 2.0 Type-A ports to a 9-pin motherboard header with a 30 cm cable, 12 cm PCI bracket and SATA power delivering up to 480 Mbps data and 5 V 2 A

  • Adds two USB 2.0 ports from one motherboard 9-pin header
  • Powers hungry 2.5-inch drives via SATA power up to 5V 2A
  • Delivers 480Mbps throughput on compliant USB 2.0 links
  • Includes 12cm PCI bracket and 30cm cable for rear-panel fit
  • Single-piece moulded build resists daily plug cycles

Two USB 2.0 Ports from One Header

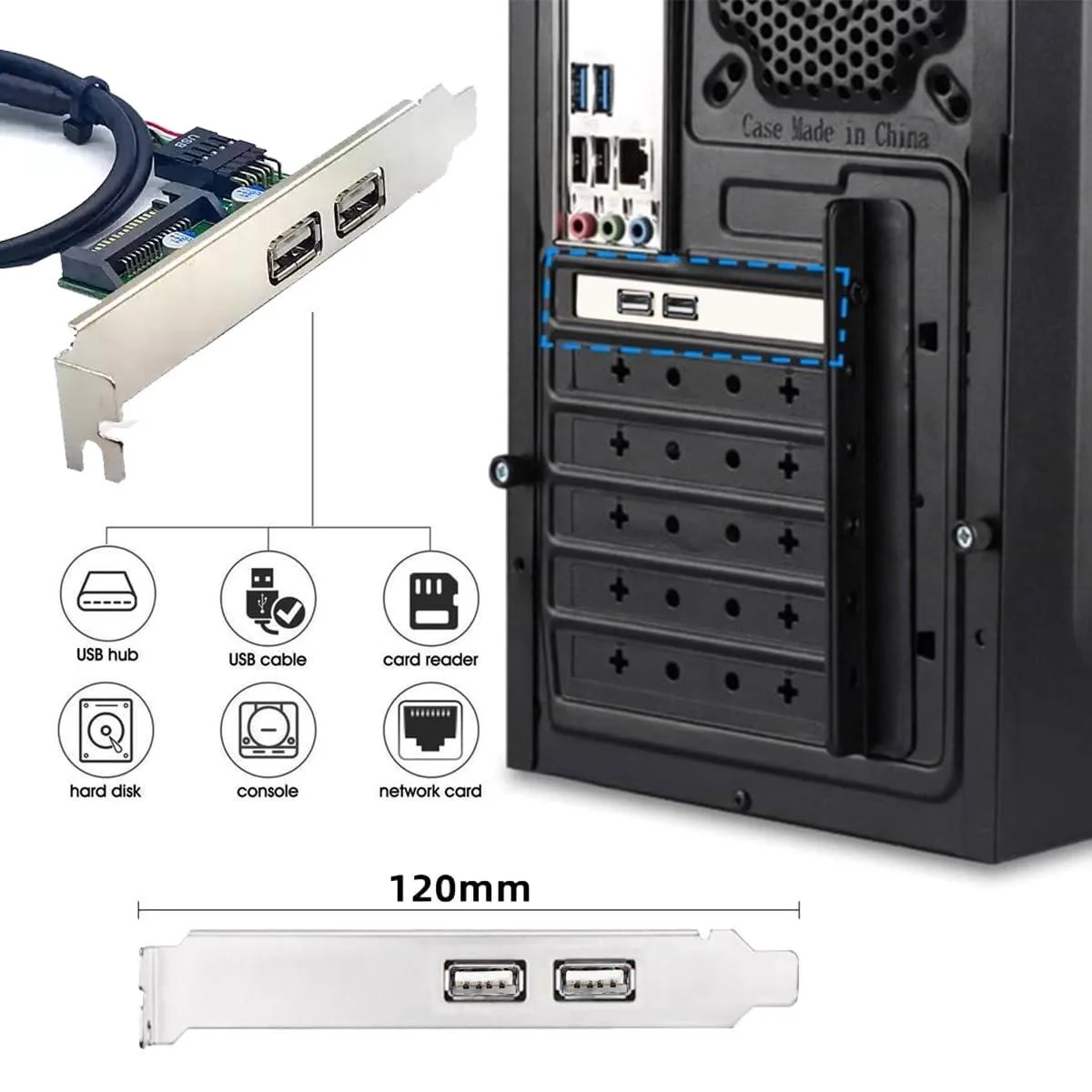

This Fervit cable converts a single motherboard 9-pin USB 2.0 header into two external Type-A ports. It is intended for builders who want front or rear panel USB access without using a rear I/O slot. The 12 cm PCI bracket mounts in a standard expansion opening.

USB 2.0 Limits at 480 Mbps

The link runs at up to 480 Mbps when both host and device support USB 2.0. Bandwidth is shared between the two ports, so simultaneous transfers will be slower than the peak figure. The 30 cm cable length restricts placement to positions near the header.

Check Header and SATA Power First

Verify that your motherboard has a free 9-pin USB 2.0 header and that the 30 cm reach covers the chosen bracket slot. A SATA power connector from the PSU is required to deliver up to 5 V 2 A for devices such as 2.5 inch drives that need more current than the header can supply.

Highlights

  • Adds two USB 2.0 ports from one motherboard 9-pin header
  • Powers hungry 2.5-inch drives via SATA power up to 5V 2A
  • Delivers 480Mbps throughput on compliant USB 2.0 links
  • Includes 12cm PCI bracket and 30cm cable for rear-panel fit
  • Single-piece moulded build resists daily plug cycles

Specifications

BrandFervit

Questions about this item

Should I pick the dual-port bracket or a single-port version?

This bracket provides two USB 2.0 Type-A sockets from one internal 9-pin header, so you gain two front or rear ports with a single motherboard connection.

What does the 480 Mbps figure mean when the cable is installed?

It is the maximum USB 2.0 data rate; actual throughput will reach 480 Mbps only when both the host controller and the attached device support USB 2.0 high-speed mode.

How does the SATA power connection change what the ports can deliver?

The SATA power feed lets each port supply up to 5 V at 2 A, enough for a 2.5-inch drive that would otherwise exceed the motherboard header's current limit.
