Five white USB-C male plug connectors with 3.5 mm strain relief and housing covers

Fervit

Fervit 5-set USB 3.1 Type-C Male Plug Connector 24-pin 56k Resistor 3.5 mm SR White Housing Cover

SKU CH-Z816-PEMV3

Pack of five USB 3.1 Type-C male plug connectors with 24-pin layout, 56k resistor for power and data, 3.5 mm strain relief and white housing covers for DIY soldering

  • 56 kΩ resistor enables safe Type-C power and data
  • 24-pin SMT board lets you solder custom cables
  • Reversible plug inserts either way into USB-C ports
  • 5 mm strain relief protects solder joints
  • Five connectors with white housings included per pack

DIY USB-C Male Connector Kit

This pack contains five USB 3.1 Type-C male plug connectors intended for DIY cable assembly. Each unit includes a 24-pin SMT board with a 56k resistor to support power and data functions. The connectors are not suitable for OTG applications. Builders who need ready-made cables or OTG support should look elsewhere.

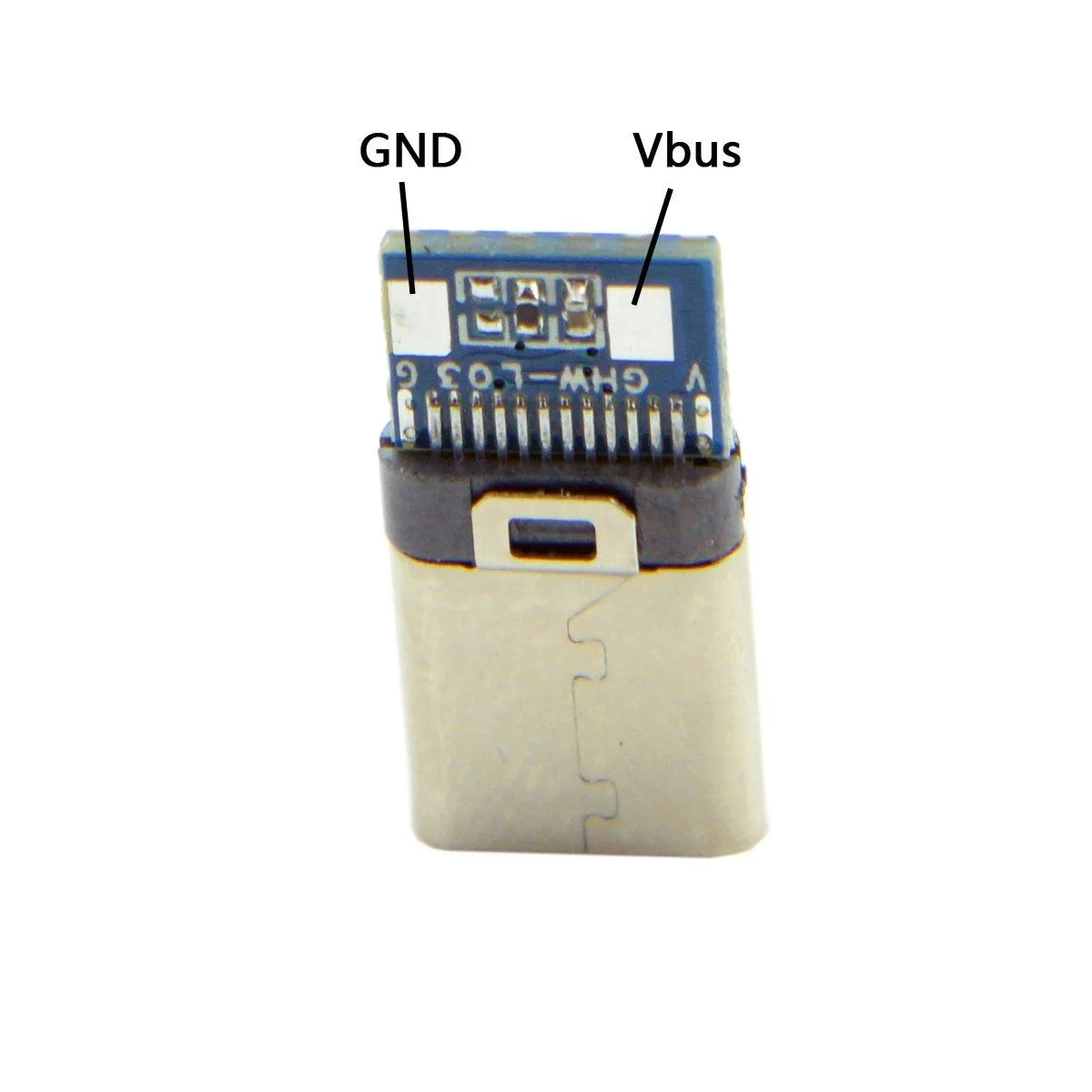

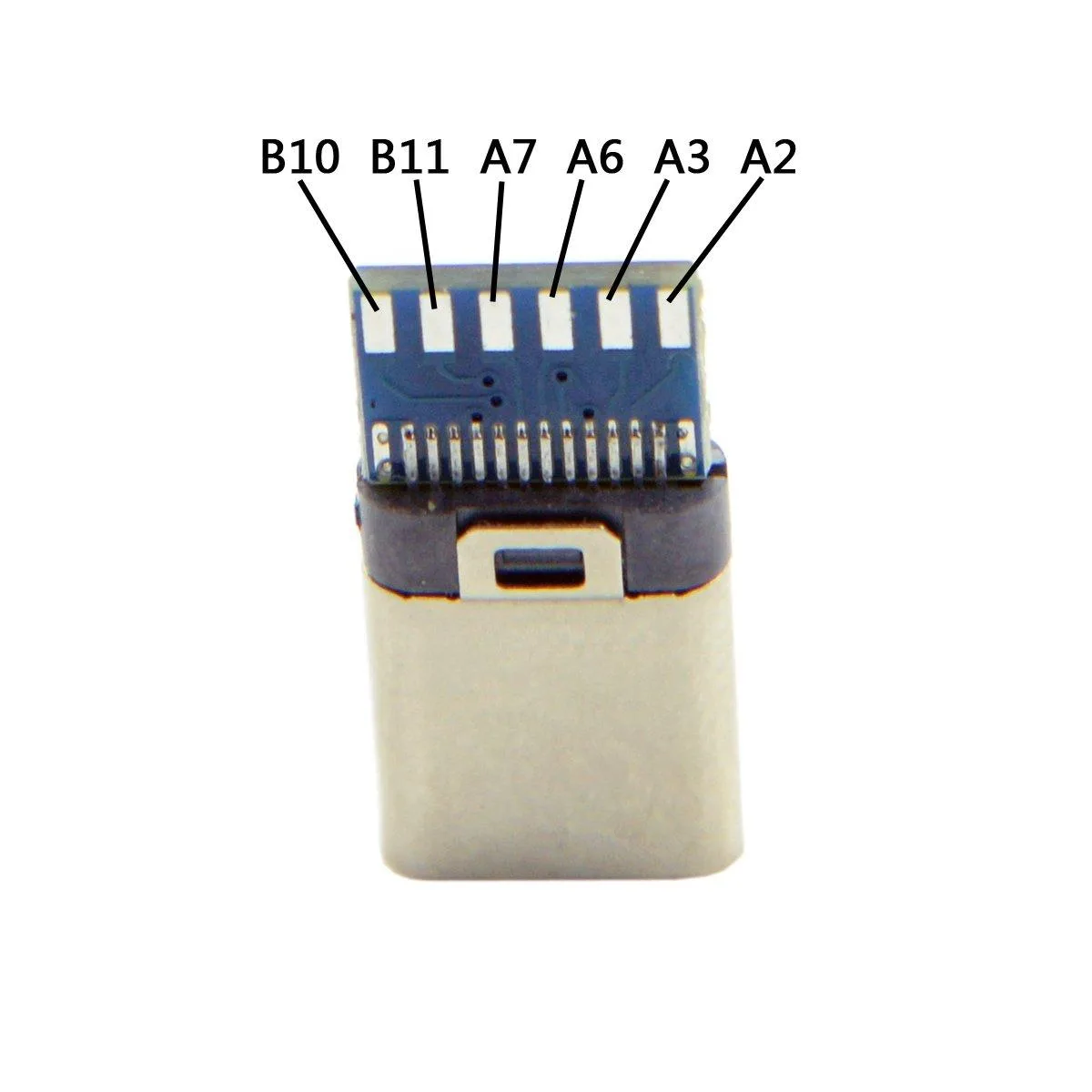

Solder-Ready Board with Strain Relief

Every connector ships attached to a small PC board so you can solder your own wires directly. A 3.5 mm strain relief and a white housing cover are included in the package. The supplier notes that the cover is not 100% compatible with the connector body and requires an inner overmold step to secure it properly.

Reversible Plug and Compatibility Checks

The plug features a reversible design that mates with a USB-C female port in either orientation. Before ordering, verify that your project only requires standard power and data lines, as the 56k resistor configuration does not enable OTG. Also confirm you have the tools and materials needed for soldering and overmolding the housing cover.

Highlights

  • 56 kΩ resistor enables safe Type-C power and data
  • 24-pin SMT board lets you solder custom cables
  • Reversible plug inserts either way into USB-C ports
  • 5 mm strain relief protects solder joints
  • Five connectors with white housings included per pack

Specifications

BrandFervit

Questions about this item

What USB standard does the 24-pin connector support and what does the 56k resistor enable?

The connector supports USB 3.1 and the 56k resistor allows Type-C power and data functions but not OTG.

What physical dimensions and parts are included for the strain relief and housing?

Each connector includes a 3.5 mm strain relief and a white housing cover that is not fully compatible and requires inner overmolding to secure.

How is the connector attached to a cable and what soldering step is critical?

The connector has an attached PC board for DIY soldering; the critical step is completing the inner overmold so the white cover stays fixed.
