Black 5-pin Mini USB 2.0 male solder connector with aluminium alloy shell

Fervit

Fervit 5-Pin Mini USB 2.0 Male Solder Connector Black

SKU CH-1X0V-5NXZT

A 5-pin Mini USB 2.0 male solder connector with aluminium alloy shell for 4.0–6.0 mm cable, supporting 480 Mbps Hi-Speed and 1.5 Mbps Low-Speed

  • Supports USB 2.0 Hi-Speed 480Mbps data transfer
  • Delivers up to DC 5V 2A power for fast charging
  • Aluminium alloy shell protects the connector for lasting performance
  • Fits cable outer diameters from 4.0mm to 6.0mm
  • Solder-type design enables custom DIY cable builds

DIY Solder Connector for Custom Cables

This 5-pin Mini USB 2.0 male plug lets makers and repair technicians build or fix cables to exact lengths. The solder-type contacts require a soldering iron and basic wiring skill, so it suits workshops and hobbyists who are comfortable with through-hole assembly.

USB 2.0 Speed and Power Limits

The connector complies with USB 2.0 Hi-Speed at 480 Mbps and falls back to USB 1.1 Low-Speed at 1.5 Mbps. It supports up to DC 5V 2A when paired with a compliant host and device, but cannot exceed the bandwidth or current ceiling defined by the USB 2.0 specification.

Fits 4.0 mm to 6.0 mm Cable Diameters

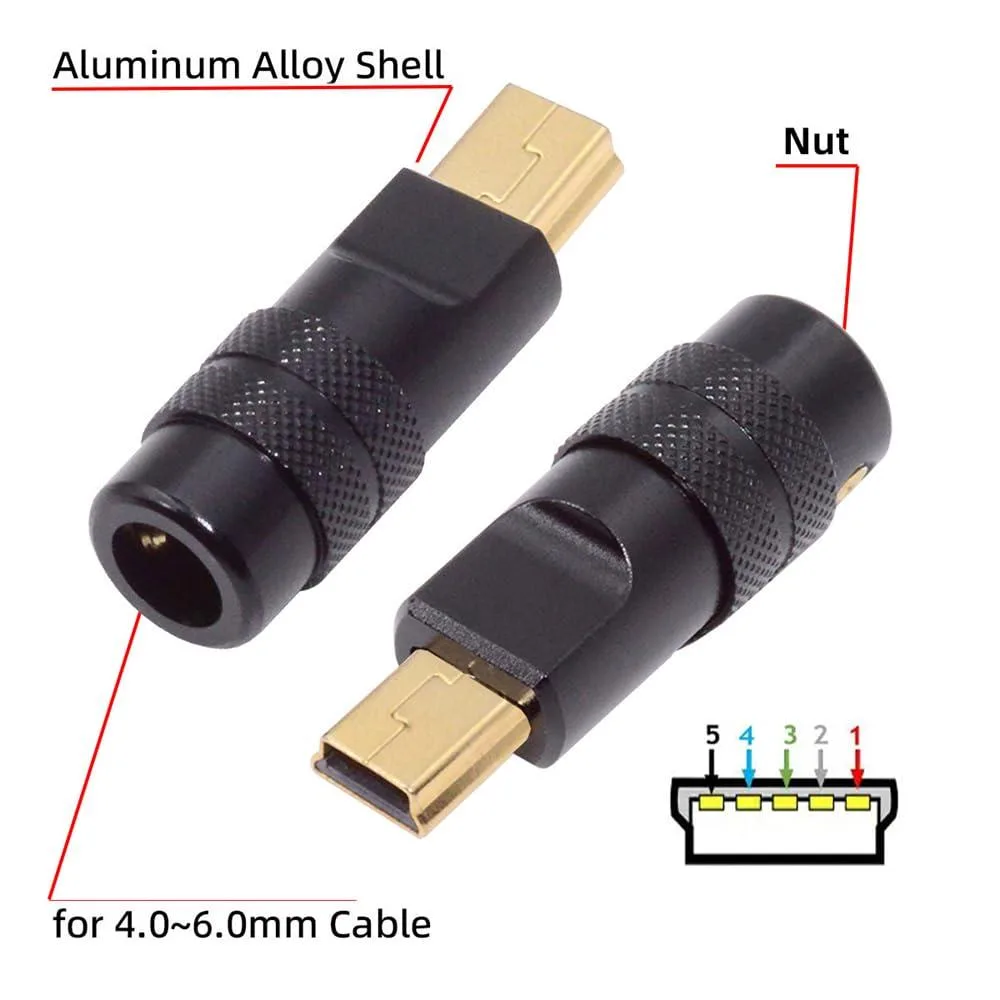

The aluminum alloy shell and included nut accommodate finished cables with an outer diameter between 4.0 mm and 6.0 mm. Thinner or thicker cables will not seal properly, and the connector does not support USB 3.0 or higher signalling rates.

Highlights

  • Supports USB 2.0 Hi-Speed 480Mbps data transfer
  • Delivers up to DC 5V 2A power for fast charging
  • Aluminium alloy shell protects the connector for lasting performance
  • Fits cable outer diameters from 4.0mm to 6.0mm
  • Solder-type design enables custom DIY cable builds

Specifications

BrandFervit

Questions about this item

Which cable diameter does this 5-pin Mini USB 2.0 connector accept?

The connector fits cables with an outer diameter of 4.0 mm to 6.0 mm, matching the stated range for USB 2.0 cable assemblies.

What data speed will I get when this connector is soldered into a working cable?

It complies with USB 2.0 Hi-Speed at 480 Mbps and USB 1.1 Low-Speed at 1.5 Mbps, so the link runs at whichever speed the host and device negotiate.

What power delivery does the USB 2.0 interface on this plug support?

The interface provides up to DC 5 V at 2 A maximum when connected to a USB 2.0 power source and device.
