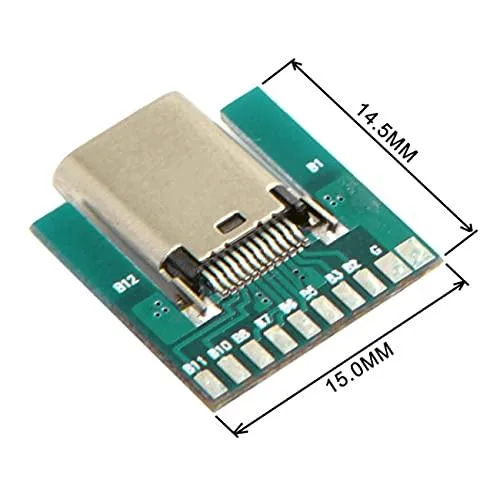

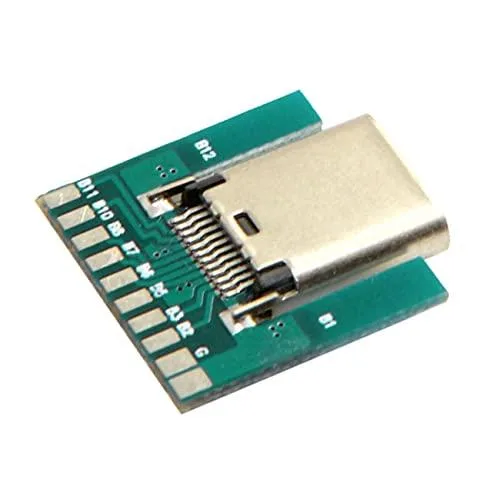

Small rectangular USB 3.1 Type C female socket on green PCB 24pin

Fervit

Fervit 24pin USB 3.1 Type C Female Socket Connector SMT with PC Board

SKU CH-BG4P-R68SM

A 24-pin USB 3.1 Type-C female socket on a PCB for custom cable soldering

  • USB 3.1 Type C female socket enables high-speed data transfer
  • 24-pin connector supports full USB 3.1 pinout and functionality
  • SMT design allows direct surface-mount assembly on PCBs
  • Pre-attached PC board simplifies integration and prototyping
  • User-solderable cable attachment suits custom DIY builds

24-pin USB 3.1 Type C socket

This Fervit component is a surface-mount USB 3.1 Type C female socket supplied with an attached printed circuit board. It is intended for builders and hobbyists who want to add a USB-C port to a custom board or repair an existing one. The part arrives new and ready for hand soldering.

24 pins for full USB 3.1 bandwidth

The connector carries 24 pins, providing the complete pinout required for USB 3.1 data rates and power delivery. It handles the full specification for a single port. Designs that require multiple ports or a different pin count will need additional connectors.

SMT footprint with breakout board

The surface-mount footprint saves panel space compared with through-hole alternatives. The included PC board breaks out every pin for easier wiring and prototyping. You must supply the cable and solder it yourself, so a soldering iron and basic assembly skills are required.

Highlights

  • USB 3.1 Type C female socket enables high-speed data transfer
  • 24-pin connector supports full USB 3.1 pinout and functionality
  • SMT design allows direct surface-mount assembly on PCBs
  • Pre-attached PC board simplifies integration and prototyping
  • User-solderable cable attachment suits custom DIY builds

Specifications

BrandFervit

Questions about this item

Will the 24pin USB 3.1 Type C female socket connector fit my existing SMT assembly process?

Yes, the connector is SMT type and ships already attached to a PC board, so it can be placed and reflowed alongside other surface-mount components on the same production line.

How can I verify the USB 3.1 Type C female socket is functioning correctly after I solder the cable?

Connect a known-good USB 3.1 device; the host should enumerate at SuperSpeed and transfer data without errors, confirming the 24pin socket and your solder joints are working.

Does the package include a cable or only the 24pin USB 3.1 Type C female socket with PC board?

Only the socket soldered to the PC board is supplied; you must provide and solder your own cable to the board pads.
