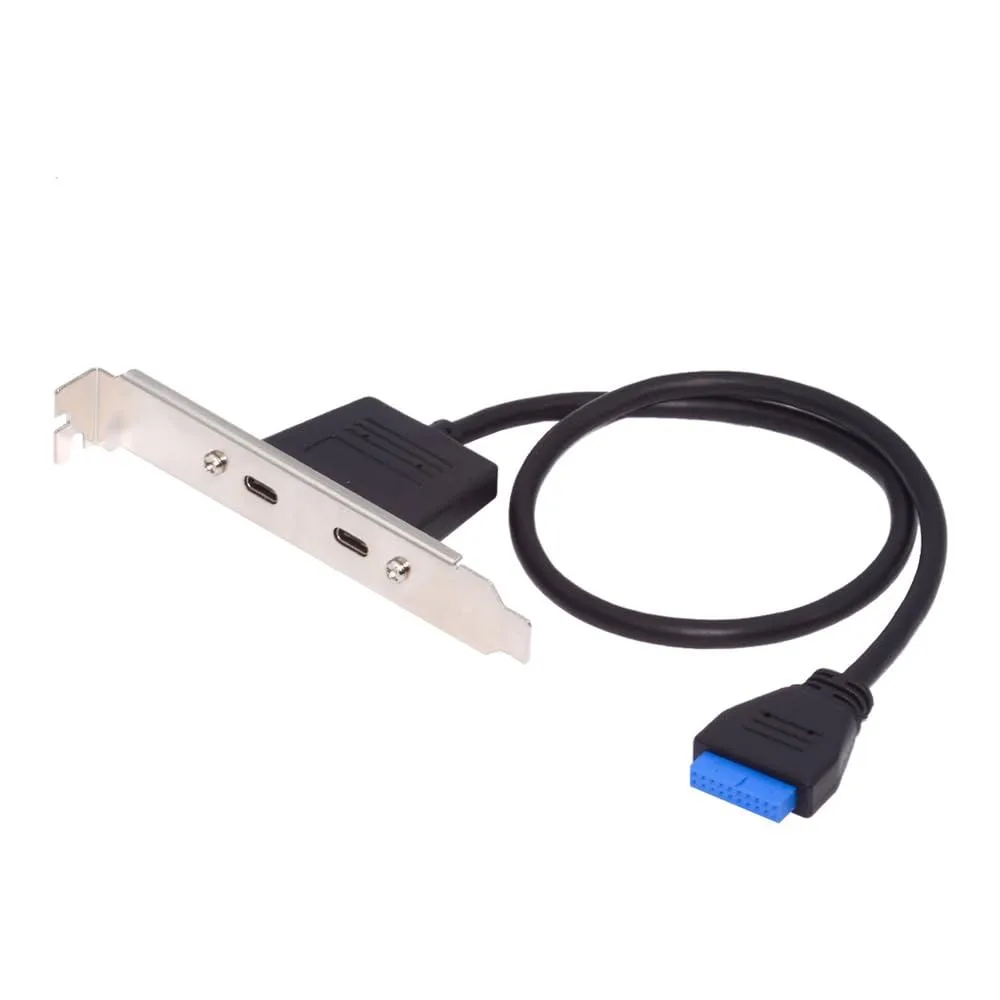

Black 50 cm cable with 19/20 pin motherboard plug and dual USB-C female ports on a PCI bracket

Fervit

Fervit 19/20Pin USB 3.0 Motherboard to Dual USB-C PCI-E Cable 50cm

SKU CH-KHVG-XSYM7

Adds two rear USB-C ports from an internal 19/20-pin header at 5Gbps, 50cm length

  • Adds two USB-C ports to the rear panel via a 19/20-pin motherboard header
  • Delivers 5 Gbps data speed for USB 3.0 SSDs and hard drives
  • Maintains backward compatibility with USB 2.0 at 480 Mbps and USB 1.1 at 1.5 Mbps
  • 50 cm cable length fits standard ATX and micro-ATX case layouts
  • Pure data connection — no video, audio, Power Delivery or DisplayPort alt mode support

Motherboard 20-Pin to Dual USB-C Adapter

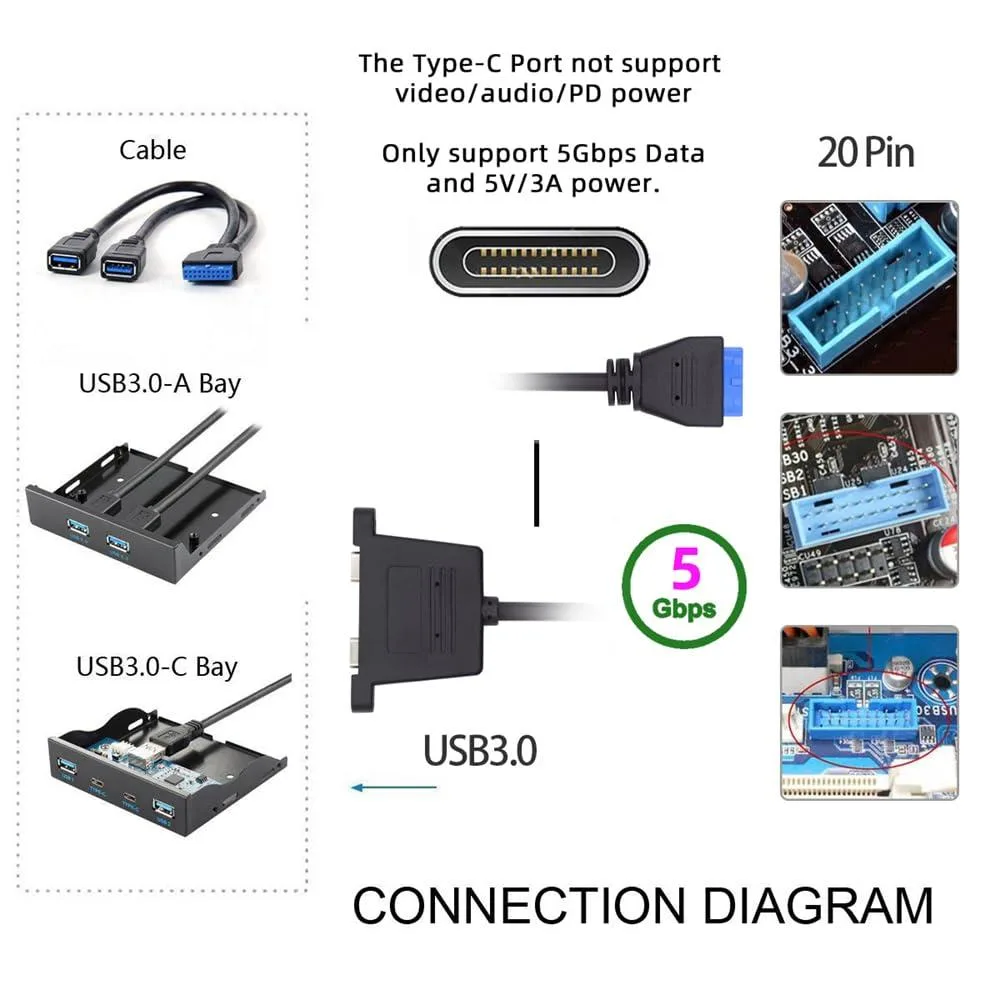

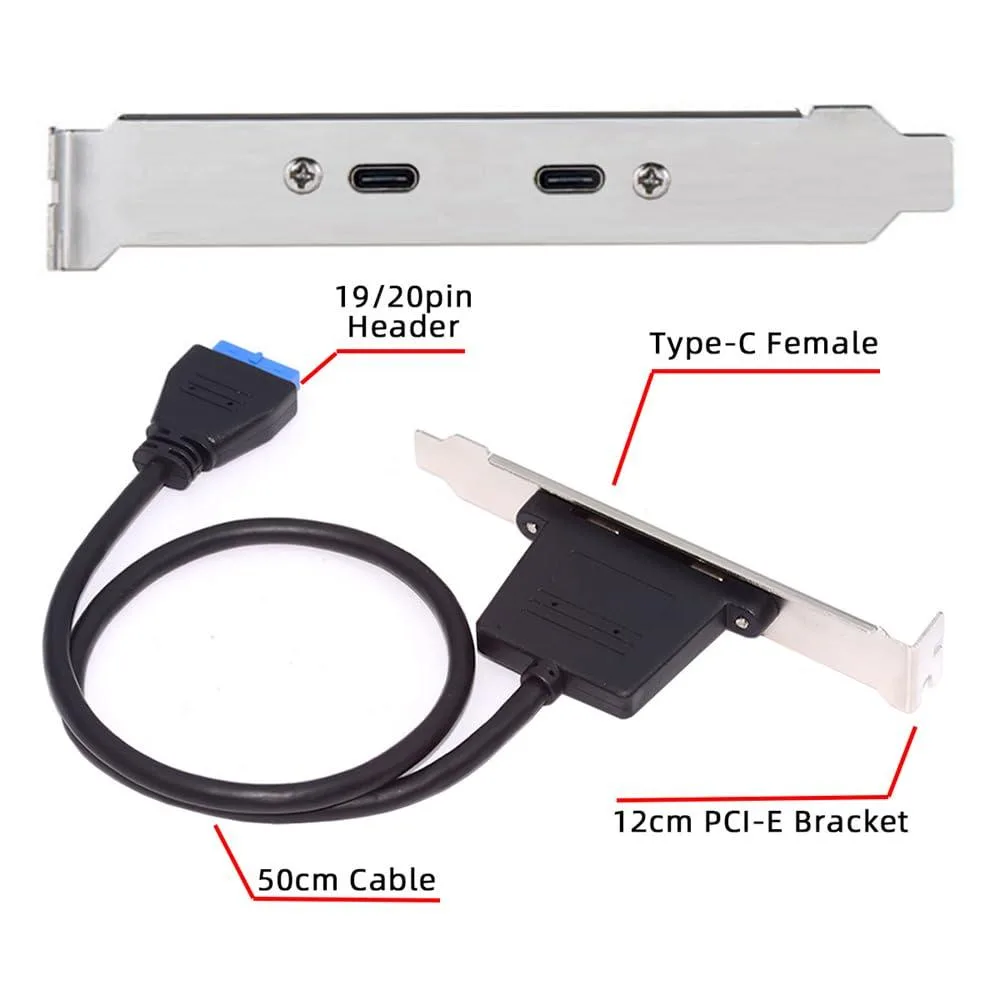

This 50 cm cable converts a motherboard 19/20-pin header into two external USB-C ports on a PCI-E back bracket. It operates under USB 3.0 Super-Speed at 5 Gbps and remains backward compatible with USB 2.0 Hi-Speed at 480 Mbps and USB 1.1 Low-Speed at 1.5 Mbps. The connectors provide data-only links for SSDs, HDDs and other USB peripherals.

Builders adding front-panel or rear USB-C ports

Suited for system integrators and DIY builders who need to expose USB 3.0 Type-C sockets from an internal 20-pin header without adding a controller card. Not for users who require DisplayPort Alt Mode video output, Power Delivery charging, audio transmission or docking-station features, because the Type-C ports carry only USB data signals.

USB 3.0 5 Gbps data-only Type-C ports

The single deciding specification is that each Type-C port delivers USB 3.0 Super-Speed data at 5 Gbps and does not support Power Delivery, DisplayPort Alt Mode, audio or video. If the build needs charging, video or docking over USB-C, this cable will not meet that requirement.

Highlights

  • Adds two USB-C ports to the rear panel via a 19/20-pin motherboard header
  • Delivers 5 Gbps data speed for USB 3.0 SSDs and hard drives
  • Maintains backward compatibility with USB 2.0 at 480 Mbps and USB 1.1 at 1.5 Mbps
  • 50 cm cable length fits standard ATX and micro-ATX case layouts
  • Pure data connection — no video, audio, Power Delivery or DisplayPort alt mode support

Specifications

BrandFervit

Questions about this item

Will the 19/20-pin motherboard header fit my board's USB 3.0 connector?

The cable plugs directly into a standard 19/20-pin internal USB 3.0 header on the motherboard.

How do I secure the dual Type-C ports to the case, and what step is often missed?

Mount the PCI-E bracket to a rear expansion slot, then connect the 19/20-pin header; the step often missed is fastening the bracket screw before routing the 50cm cable.

Will the Type-C ports need a firmware update or driver to keep working with future SSDs?

No firmware or driver updates are required; the ports operate under the USB 3.0, 2.0 and 1.1 specifications already supported by the operating system.
