Green circuit board with silver PCIe slot bracket, two teal USB-C ports, one blue Type-E socket and a 19/20-pin header

Fervit

Fervit 10Gbps USB 3.1 PCIe Adapter Type-E Dual Type-C 19/20Pin ASM3142 VL822

SKU CH-QPX4-YEYDM

Adds 10 Gbps USB 3.1 Type-E and dual Type-C ports via PCIe x4, x8 or x16 using ASM3142 and VL822 controllers

  • Adds 10Gbps USB 3.1 ports via PCIe x4, x8 or x16 slot

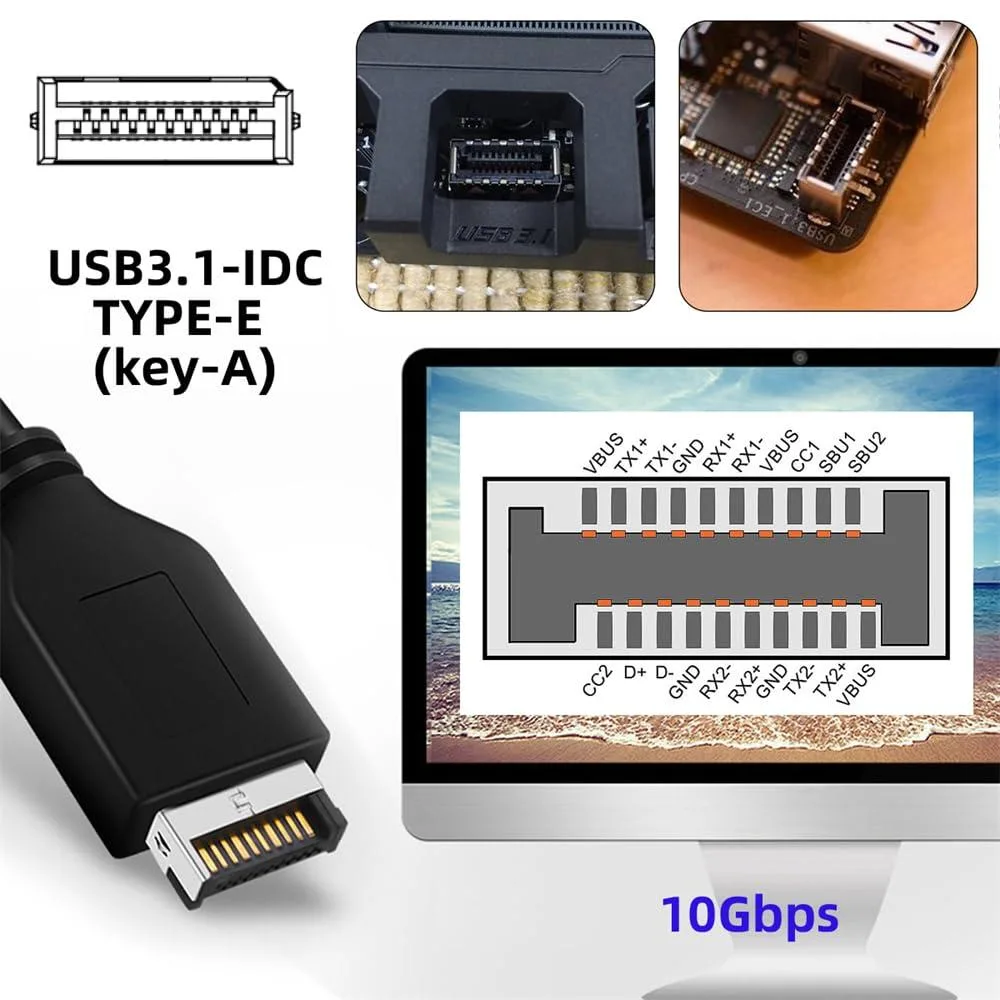

  • Dual Type-C and Type-E outputs plus 19/20-pin header for front-panel connectivity
  • ASM3142 and VL822 dual chipset delivers full 10Gbps Gen2 bandwidth
  • Driver-free on Windows 10, Mac OS 10.8.2+ and Linux; Windows 7 needs driver
  • Supplies 5V/3A charging power without an extra power connector

PCIe adapter with dual Type-C and Type-E outputs

This Fervit adapter adds two reversible USB Type-C ports and a Type-E front-panel header to a desktop through a PCIe x4, x8 or x16 slot. It uses an ASM3142 and VL822 dual-chipset to deliver up to 10Gbps data transfer under USB 3.1 Gen 2. The card draws power from the slot itself and needs no extra power cable.

Driver-free on Windows 10, Mac OS and Linux

On Windows 10, Mac OS 10.8.2 or later and Linux the adapter works without installing a driver. Windows 7 requires a driver installation before use. The built-in self-powered IC supplies 5V/3A to each port so connected devices can charge at full speed without an external supply.

No video, audio or Thunderbolt over the Type-C ports

The Type-C connectors carry only USB 3.1/3.0 data and power; they cannot drive displays, audio gear or Thunderbolt peripherals. Buyers who need a Type-C port with video output or Thunderbolt support must choose a different controller.

Highlights

  • Adds 10Gbps USB 3.1 ports via PCIe x4, x8 or x16 slot
  • Dual Type-C and Type-E outputs plus 19/20-pin header for front-panel connectivity
  • ASM3142 and VL822 dual chipset delivers full 10Gbps Gen2 bandwidth
  • Driver-free on Windows 10, Mac OS 10.8.2+ and Linux; Windows 7 needs driver
  • Supplies 5V/3A charging power without an extra power connector

Specifications

BrandFervit

Questions about this item

Will the ASM3142 or VL822 chipset need a firmware update or driver reinstall after a major OS upgrade?

Windows 10, Mac OS and Linux run without any driver; only Windows 7 requires a driver install, so later OS upgrades on supported systems need no extra step.

Does the PCIe x4 slot saturate before the dual Type-C ports hit their 10Gbps rating during long transfers?

The adapter uses an x4 lane and the ASM3142 Multiple INs feature to utilise the full 10Gbps Gen2 bandwidth, so the slot does not become the bottleneck.

How much heat does the card produce when both Type-C ports run at 5V/3A all day?

The board draws power only from the PCIe slot with a built-in self-powered IC and no external supply, so heat stays within what the slot can dissipate.
