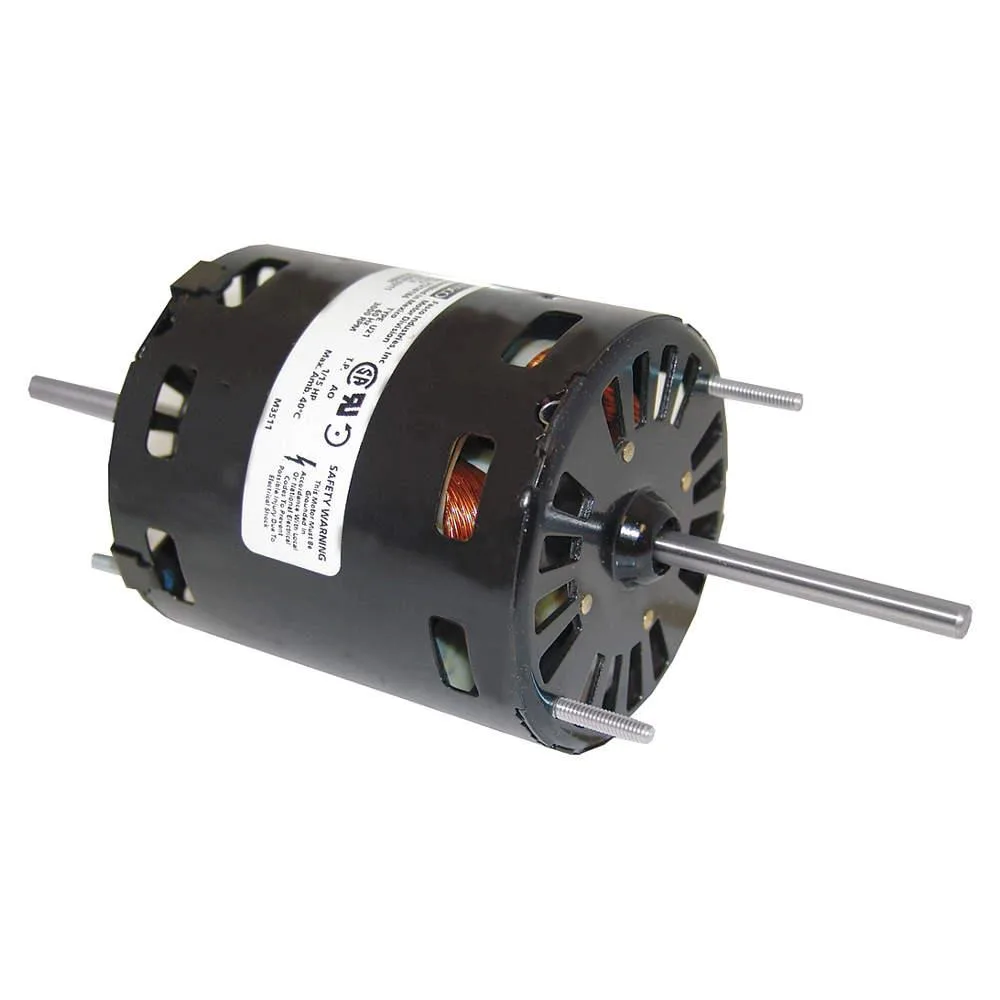

FASCO D211 HVAC motor closed base 230V 3.3A

FASCO

FASCO D211 1/15 HP 3000 rpm 230V 3.3

SKU CH-76TR-PMXVZ

HVAC split-phase motor delivers 1/15 HP at 3000 rpm on 230 V single-phase power

  • typeClosed Base
  • 1/15 HP motor delivers compact power for HVAC systems
  • 3000 rpm speed ensures efficient airflow performance
  • 230V operation suits standard residential voltage supply
  • 3 amp draw balances energy use with output
  • Split-phase design provides reliable single-phase starting torque

FASCO D211 HVAC Motor 1/15 HP 3000 rpm

The FASCO D211 is a single-phase split-phase motor rated at 1/15 horsepower with a nameplate speed of 3000 rpm at 230 volts. It draws 3.3 amps at full load and features a closed-base mounting design. Suitable for HVAC equipment requiring continuous duty operation within a 40 degree Celsius ambient limit.

Verify voltage phase and frame before ordering

Confirm your supply provides 230 volt single-phase power at 60 hertz and that the driven equipment matches the 48 frame dimensions. The motor rotation is reversible CW/CCW but requires correct wiring; thermal protection is automatic. Ensure the shaft diameter and mounting orientation suit the existing fan or blower assembly.

For direct replacement in compatible HVAC units

This motor suits technicians replacing a failed 1/15 HP 230V unit in residential or light-commercial air handlers. It is not for applications needing 115 volt supply, 1725 rpm speed, or higher horsepower such as 1/3 HP. Builders requiring multi-speed operation or 208 volt compatibility should select a different model.

Highlights

  • 1/15 HP motor delivers compact power for HVAC systems
  • 3000 rpm speed ensures efficient airflow performance
  • 230V operation suits standard residential voltage supply
  • 3 amp draw balances energy use with output
  • Split-phase design provides reliable single-phase starting torque

Specifications

BrandFASCO
typeClosed Base

Questions about this item

What comes with the FASCO D211 motor and what must be purchased separately?

The motor is supplied as a single unit with a rigid base and 48 frame. Mounting hardware, wiring, capacitors and any driven load such as a fan blade or blower wheel are not included and must be sourced separately.

Which voltage and horsepower version of the FASCO D211 should I select for my application?

The D211 is a single-phase split-phase motor rated at 1/15 HP, 230 V and 3.3 A full-load current at 3000 rpm. Choose this version only if your system requires exactly those ratings; other voltages or power levels are different models.

What does the 3000 rpm rating mean once the motor is installed in equipment?

At 230 V and 60 Hz the shaft turns at 3000 rpm under full load of 1/15 HP, delivering 3.3 A. Actual speed will drop slightly with increased load and the motor is designed for continuous duty in ambient temperatures up to 40 °C.
