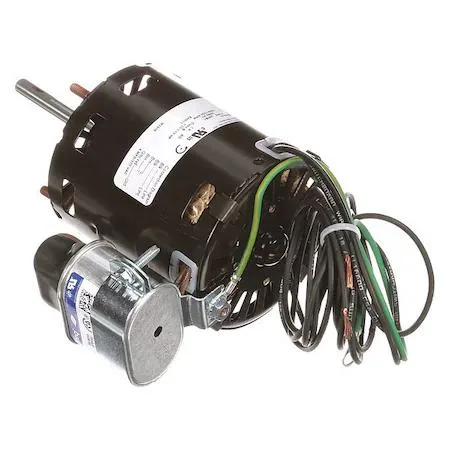

FASCO D1123 1/20 1/15 HP Condenser Fan Motor
A single-phase PSC condenser fan motor delivering 1/15 hp at 1,550 rpm or 1/20 hp at 1,400 rpm on 208–230 V AC
- Direct OEM replacement for Heatcraft 25309101
- Dual horsepower rating 1/15 and 1/20 HP
- Runs on 208-230 V AC single phase
- Auto thermal protection with Class B insulation
- 1 550 / 1 400 RPM permanent split capacitor design
Direct OEM Replacement
The FASCO D1123 condenser fan motor replaces Heatcraft part number 25309101. It is a single-phase permanent split capacitor motor rated at 1/20 and 1/15 horsepower for refrigeration equipment.
Dual-Speed Operation
The motor runs at 550 or 400 RPM on 208-230 volt AC power at 60/50 Hz. It draws 0.40 or 0.50 amps, fits a 3.3 frame, and includes automatic thermal protection with Class B insulation for 40 degrees C ambient temperature.
Service Upgrade Target
This unit suits technicians restoring original airflow on Heatcraft condensers where the original motor has failed. It is not usable at 200 volts, so installers must verify the supply voltage before fitting.
Highlights
- Direct OEM replacement for Heatcraft 25309101
- Dual horsepower rating 1/15 and 1/20 HP
- Runs on 208-230 V AC single phase
- Auto thermal protection with Class B insulation
- 1 550 / 1 400 RPM permanent split capacitor design
Specifications
| Brand | FASCO |
|---|
Questions about this item
Does the 208-230V AC rating mean it runs at 200V?
No, the motor is usable at 208V and 230V but not usable at 200V.
What shaft size and frame does the 3.3 frame motor need?
It uses a 3.3 NEMA frame; the shaft diameter matches standard 3.3 frame dimensions for direct fan mounting.
How do I wire the permanent split capacitor design correctly?
Connect the 208-230V supply to the two main leads and the capacitor across the run and start terminals; reversing the capacitor leads reverses rotation.
