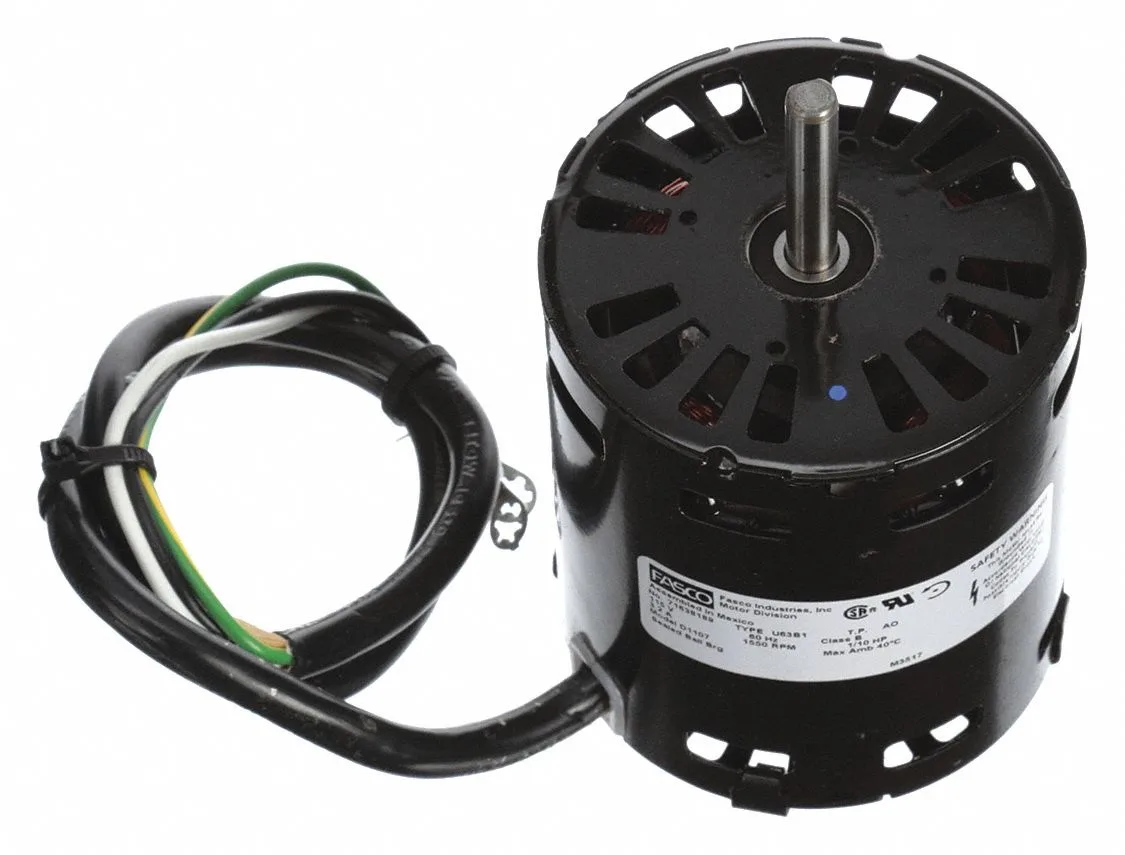

FASCO D1107 condenser fan motor steel body band mount open enclosure

FASCO

FASCO D1107 Condenser Fan Motor 1/10 HP 115V

SKU CH-9407-A582N

Single-phase shaded-pole condenser fan motor delivering 1/10 HP at 115 V AC, 550 RPM, 3.2 A full-load current, with automatic thermal protection and band mounting for Nutone 6717 replacement

  • MaterialHAWA
  • Weight4.84
  • 1/10 HP motor delivers reliable condenser airflow
  • 115 V single-phase shaded-pole design runs on standard supply
  • Auto thermal protection shuts down at 40 °C ambient
  • Band mounting with CCWSE rotation fits Nutone 6717 replacements
  • Open air-over steel frame weighs 4.84 kg for durable service

Application Fit

The FASCO D1107 is a shaded-pole condenser fan motor rated at 1/10 HP for 115 V AC single-phase supply. It suits HVAC technicians and maintenance teams replacing OEM units in residential or light-commercial air-handling equipment.

Deciding Specification

The nameplate speed is 550 RPM at 60 Hz with a full-load draw of 3.2 A and a 1.0 service factor. The motor is not usable at 200 V or 208 V, so it must be installed on a 115 V circuit only.

Installation Notes

Band mounting and a 3.3 in frame simplify the swap, while CCWSE shaft rotation must match the original fan blade. Auto thermal protection and Class B insulation handle normal ambient temperatures up to 40 °C.

Highlights

  • 1/10 HP motor delivers reliable condenser airflow
  • 115 V single-phase shaded-pole design runs on standard supply
  • Auto thermal protection shuts down at 40 °C ambient
  • Band mounting with CCWSE rotation fits Nutone 6717 replacements
  • Open air-over steel frame weighs 4.84 kg for durable service

Specifications

MaterialHAWA
Weight4.84
BrandFASCO

Questions about this item

What does the 1/10 HP rating mean for airflow in my condenser unit?

The motor produces one-tenth of a horsepower at 550 RPM, turning the matched fan blade to move the volume of air the condenser was designed for.

How does the 115 V single-phase supply limit where I can install this motor?

It runs on standard 115 V AC at 60 Hz and draws 3.2 amps full load; it is not usable on 200 V or 208 V circuits.

What mounting hardware and shaft orientation do I need to fit the D1107?

The motor uses a band-mount steel frame, 3.3 inch frame size, and rotates CCWSE, so the bracket and blade must match that rotation and mounting pattern.
