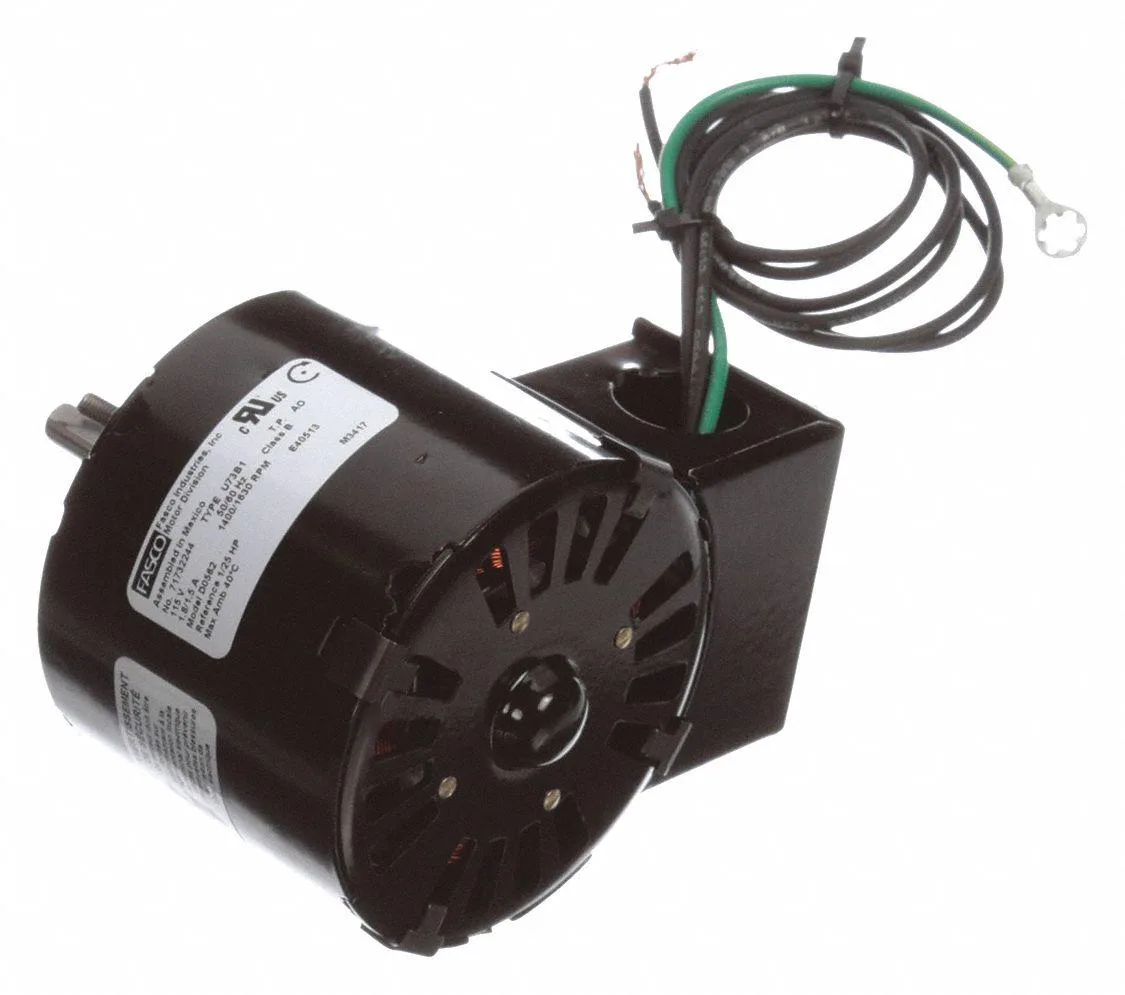

FASCO D0562 condenser fan motor, steel frame, stud mount

FASCO

FASCO D0562 Condenser Fan Motor 1/25 HP 115V Stud Mount

SKU CH-G16F-Z2FZJ

A 1/25 HP shaded-pole condenser fan motor running at 630 RPM on 115 V AC with stud mounting and auto thermal protection

  • MaterialHAWA
  • Weight3.3
  • 1/25 HP motor delivers reliable condenser airflow
  • 115 V single-phase operation suits standard residential power
  • Shaded-pole design provides simple, low-maintenance starting
  • Auto thermal protection shuts down at 40 °C max ambient
  • Stud mount with steel frame fits B45227 replacement footprint

Replacement Condenser Fan Motor

The FASCO D0562 is a new single-phase shaded-pole motor rated at 1/25 HP for 115V AC systems. It delivers a nameplate speed of 1,630 RPM at 60 or 50 Hz with a full-load draw of 1.80 or 1.50 amps. The steel frame measures 3.3 inches and uses a stud mounting pattern. Auto thermal protection and Class B insulation support operation up to 40 degrees C ambient.

Direct OEM Substitute for B45227

This unit replaces the B45227 motor in condenser fan applications that require a CWSE rotation and open air-over enclosure. The jump is worth it when the original motor has failed or runs noisy, and the service voltage is strictly 115V. It is not usable at 200V or 208V, so installations on those voltages need a different model. The 1.0 service factor means no overload margin beyond nameplate ratings.

Simple Stud-Mount Installation

Installation consists of securing the motor via its integral studs and wiring the single-speed leads to the existing 115V supply. The 3.3-inch frame diameter must match the original mounting holes and the shaft must clear the fan blade hub. What usually goes wrong is reversing the CWSE rotation or exceeding the 40 degrees C ambient limit, which trips the auto thermal protector.

Highlights

  • 1/25 HP motor delivers reliable condenser airflow
  • 115 V single-phase operation suits standard residential power
  • Shaded-pole design provides simple, low-maintenance starting
  • Auto thermal protection shuts down at 40 °C max ambient
  • Stud mount with steel frame fits B45227 replacement footprint

Specifications

MaterialHAWA
Weight3.3
BrandFASCO

Questions about this item

What stud spacing does the FASCO D0562 motor use for mounting?

The motor uses a 3.3-inch frame with stud mounting; verify the stud pattern on the existing B45227 housing before installation.

How do I wire the motor for the correct 115 V rotation?

Connect to a 115 V AC, 60/50 Hz supply; the shaded-pole design runs CWSE, so do not reverse leads or the fan will blow the wrong direction.

When should the thermal protection be expected to trip?

Auto-reset thermal protection engages if the motor exceeds its 40 °C max ambient or draws over 1.80 full-load amps; clean the open air-over vents regularly to prevent nuisance trips.
