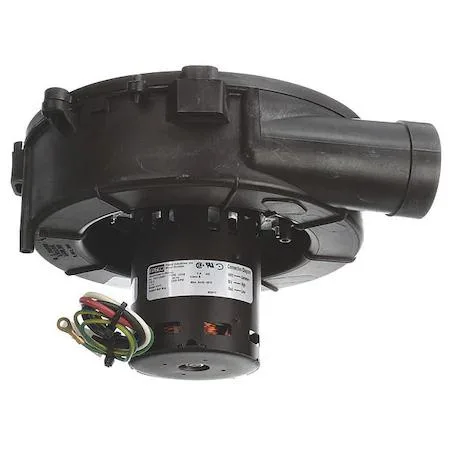

FASCO A213 draft inducer motor, plastic housing, wire leads visible

FASCO

FASCO A213 Draft Inducer 115V HVAC Control

SKU CH-EW7W-REBYF

A 115 V draft inducer for furnaces with a 2 in inlet and outlet, shaded-pole motor at 3 200 RPM max, 2.1 A draw, and Lennox 18L0401 compatibility

  • Delivers reliable furnace draft with 115V shaded-pole motor
  • Replaces Lennox 18L0401 and 702110376 for exact fit
  • Operates at 3,200 RPM fan speed for strong airflow
  • Runs on 2.1 A current at 60 Hz single phase
  • Withstands inlet air up to 40 °C for durability

FASCO A213 Draft Inducer for Lennox Furnaces

This FASCO A213 draft inducer replaces Lennox part numbers 18L0401 and 702110376 on residential furnaces. It operates on 115V AC single-phase power at 60 Hz and draws 2.1 A through wire leads. The shaded-pole motor is rated for Class B insulation.

Thermals, Noise and Power in Normal Use

The motor reaches a maximum speed of 3,200 RPM with a fan speed up to 3,400 RPM during standard operation. Inlet air temperature must not exceed 40 degrees C. Static pressure capability tops out at 3 1/4 in wc. The unit uses a shaded-pole motor design with Class B insulation for reliable continuous duty.

Behaviour Under Sustained Load

Under prolonged heating cycles the shaded-pole motor maintains its rated 3,200 RPM maximum speed within the 40 degrees C inlet limit. Current draw remains at the nameplate 2.1 A at 115V AC. The 2 in inlet and outlet diameters maintain airflow without restriction. This inducer is not suited for appliances requiring higher static pressure or different voltage.

Highlights

  • Delivers reliable furnace draft with 115V shaded-pole motor
  • Replaces Lennox 18L0401 and 702110376 for exact fit
  • Operates at 3,200 RPM fan speed for strong airflow
  • Runs on 2.1 A current at 60 Hz single phase
  • Withstands inlet air up to 40 °C for durability

Specifications

BrandFASCO

Questions about this item

How do I wire the 115V shaded-pole motor to the furnace control board?

Connect the two wire leads to the inducer terminals on the board; the motor is single-phase so polarity does not matter, but secure the ground screw to the chassis before restoring power.

When should I plan to replace the motor bearings on this draft inducer?

The shaded-pole motor uses sleeve bearings rated for continuous operation at 40 °C inlet air; expect service intervals of several heating seasons and replace when fan speed drops below 3 200 RPM or noise increases.

What static-pressure limit will trip the pressure switch first during a long heating cycle?

The inducer is rated for a maximum of 3 1/4 in wc; if vent restriction or a dirty heat exchanger pushes static pressure above that value the pressure switch will open and shut down the furnace.
