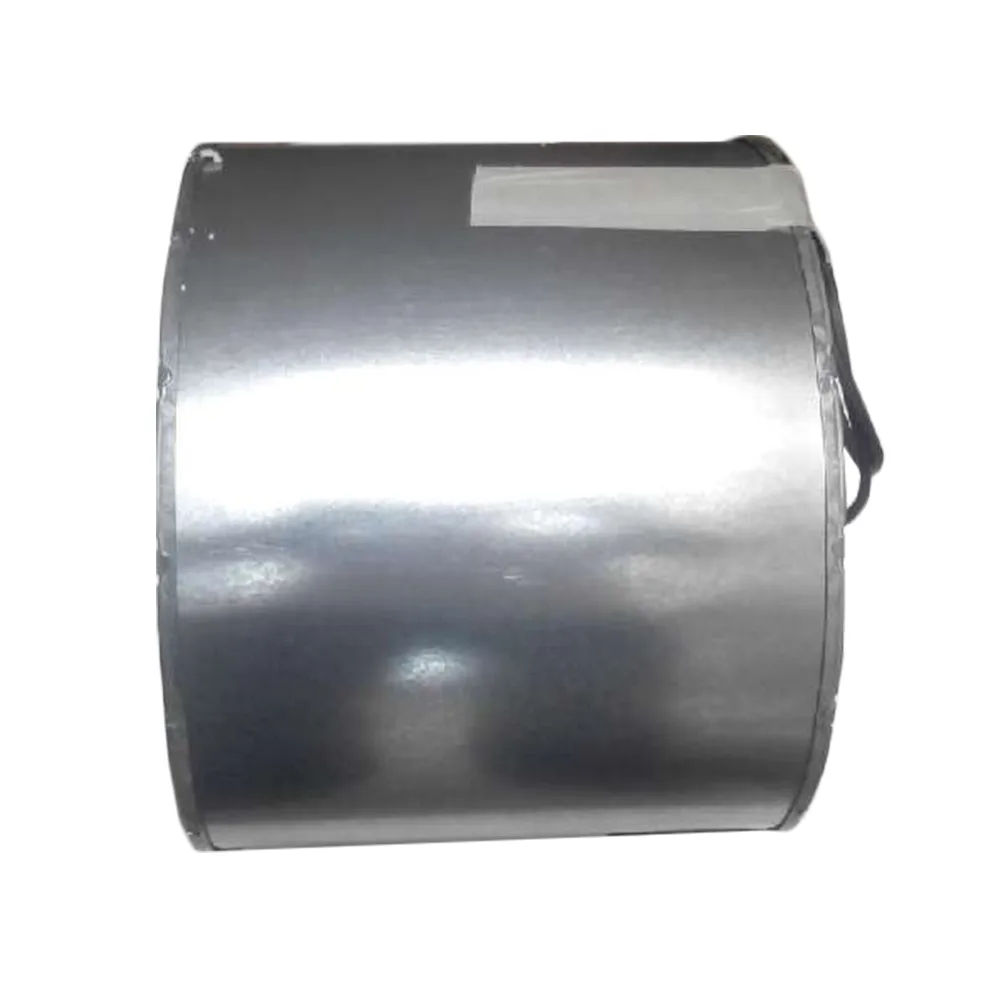

Fans D4E180-CA02-36 industrial cooling fan
Centrifugal cooling fan for ABB ACS800 inverters, 230 VAC 60 Hz, 1300 rpm, 495 W
- Reduces ABB inverter maintenance costs with original ACS800 fan
- Operates reliably from -25 °C to 35 °C ambient range
- Delivers 1300 rpm at 495 W for strong airflow
- Runs on 230 VAC 60 Hz with 10 µF capacitor
- Built by ebmpapst for cement, chemical, HVAC, marine and food plants
Industrial Centrifugal Cooling Fan
The D4E180-CA02-36 is a new centrifugal cooling fan built for ABB ACS800 inverter installations. It operates on 230 VAC at 60 Hz and draws 2.15 A at 495 W. The unit suits plant engineers and maintenance teams who need a direct replacement for existing ebm-papst equipment.
Integrated Capacitor and Inverter Compatibility

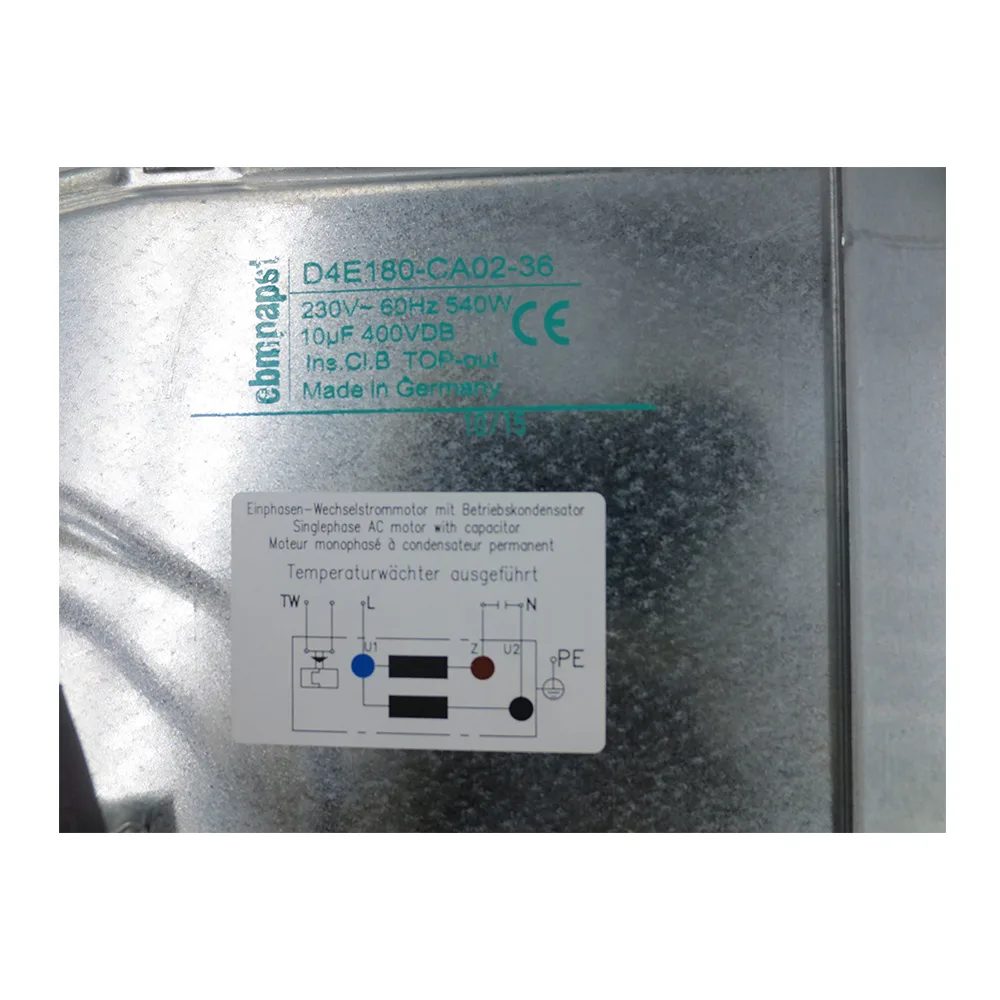

A 10 µF capacitor rated at 400 VDB is included with the motor assembly. This removes the need to source a separate run capacitor and ensures the electrical match the ABB drive expects. The combination reduces maintenance cost and raises the reliability and energy efficiency of the inverter during continuous operation.
Rated Thermal Range and Airflow Headroom
The fan runs at 1300 min-1 across ambient temperatures from -25 °C to 35 °C with a minimum back pressure of 0 Pa. It comfortably handles ventilation and heat dissipation for compressors, blowers, cranes, elevators, winches and cooling towers in cement, chemical, metallurgical, power, water treatment, marine, mining, oil and gas, rubber, plastics and hygienic food and beverage plants. It is not suited for environments exceeding 35 °C or applications that demand higher static pressure than the open-inlet rating provides.
Highlights
- Reduces ABB inverter maintenance costs with original ACS800 fan
- Operates reliably from -25 °C to 35 °C ambient range
- Delivers 1300 rpm at 495 W for strong airflow
- Runs on 230 VAC 60 Hz with 10 µF capacitor
- Built by ebmpapst for cement, chemical, HVAC, marine and food plants
Specifications
No published specifications for this item yet.
Questions about this item
Does the 10 µF capacitor need periodic replacement on this D4E180-CA02-36 fan?
The 10 µF capacitor rated at 400 VDB is a wear component; plan to inspect it annually and replace it every two to three years in continuous service to avoid unexpected downtime.
What thermal limit appears first when this fan runs continuously at 1300 rpm?
The maximum ambient temperature is 35 °C; sustained operation above this limit will trigger thermal protection or reduce motor life before any other constraint is reached.
How much heat and noise does the 495 W motor add to a cabinet running all day?
At 495 W power draw and 2.15 A current, the motor dissipates significant heat inside the enclosure; expect noticeable airflow noise typical for a centrifugal fan at 1300 rpm.
