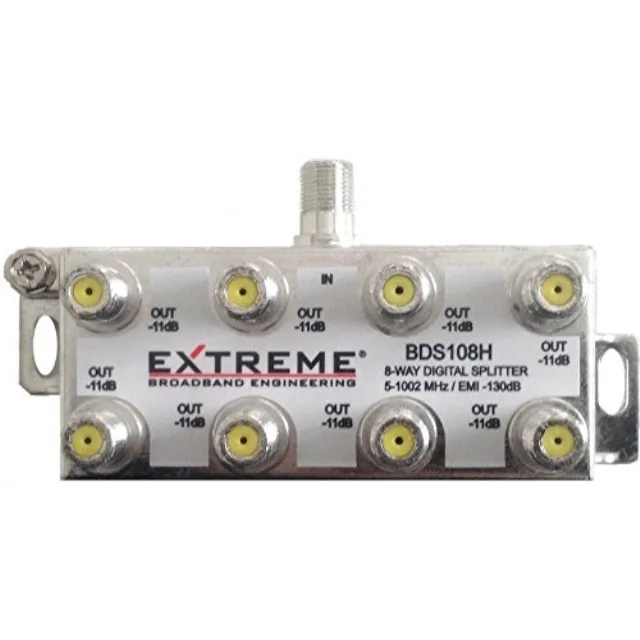

Silver horizontal 8-way coaxial splitter with F-ports

Extreme

Extreme BDS108H 8-Way Digital Splitter 1 GHz Horizontal

SKU CH-FKH7-2NYMR

Eight-way coaxial splitter distributes 5–1002 MHz signals with 11.0 dB loss per port and 130 dB EMI shielding

  • ColorSilver
  • Weight0.3500
  • 1 GHz bandwidth supports premise and MDU networks
  • 5–1002 MHz range with EMI shielding to -130 dB
  • Consistent 11.0 dB insertion loss across all eight ports
  • Zinc die-cast housing with soldered back for durability
  • Capacitive-coupled F-ports prevent hum modulation

What the splitter does

The Extreme BDS108H is an eight-way digital splitter built for premise, multi-dwelling unit and business installations. It divides a single coaxial feed into eight outputs while maintaining 1 GHz bandwidth across the 5–1002 MHz range.

Signal loss and shielding

Each output presents 11.0 dB insertion loss across the band. The zinc die-cast housing with a fully soldered back provides EMI shielding rated at –130 dB, and capacitive-coupled F-ports prevent hum modulation.

Continuous operation

Machined F-ports are pressure sealed and the soldered back maintains shield integrity under sustained RF load. The horizontal flex-mount layout fits standard rack or wall plates for permanent deployment.

Highlights

  • 1 GHz bandwidth supports premise and MDU networks
  • 5–1002 MHz range with EMI shielding to -130 dB
  • Consistent 11.0 dB insertion loss across all eight ports
  • Zinc die-cast housing with soldered back for durability
  • Capacitive-coupled F-ports prevent hum modulation

Specifications

BrandExtreme Broadband Engineering
ModelBDS108H
Part NumberBDS108H
ColorSilver
Weight0.3500

Questions about this item

How do I install the Extreme BDS108H horizontal splitter and what is the common mistake?

Mount the unit horizontally using the integrated flex bracket, then tighten each F-connector to 11.0 dB return-loss spec; the step most installers miss is leaving the ground block unbonded, which breaks the -130 dB EMI shield.

What maintenance or replacement will the Extreme BDS108H need over time?

The zinc die-cast housing and soldered back are sealed for life; only the capacitive-coupled F-ports may need re-torquing if vibration loosens them, otherwise no internal components require service.

What limit appears first on the Extreme BDS108H during sustained high-frequency use?

The 1002 MHz bandwidth ceiling is the first hard limit; signals above that frequency roll off, and the fixed 11.0 dB insertion loss per port cannot be recovered by any adjustment.
