Silver zinc-alloy four-way coaxial splitter with sealed F-ports

Extreme

Extreme BDS104H 4-Way HD Digital Coax Splitter 5-1000MHz

SKU CH-WHPV-EKWC3

Four-way coaxial splitter covering 5 to 1000 MHz with sealed F-ports pressure tested to 15 psi and zinc alloy housing

  • ColorSilver
  • Weight0.3
  • Splits signal four ways across 5-1000 MHz bandwidth
  • Sealed F-ports pressure tested to 15 psi block water ingress
  • Zinc alloy die-cast housing prevents galvanic corrosion
  • Proprietary plating adds extra environmental protection
  • Fully soldered back ensures reliable electrical performance

4-Way HD Digital Coax Splitter

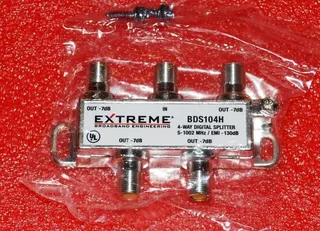

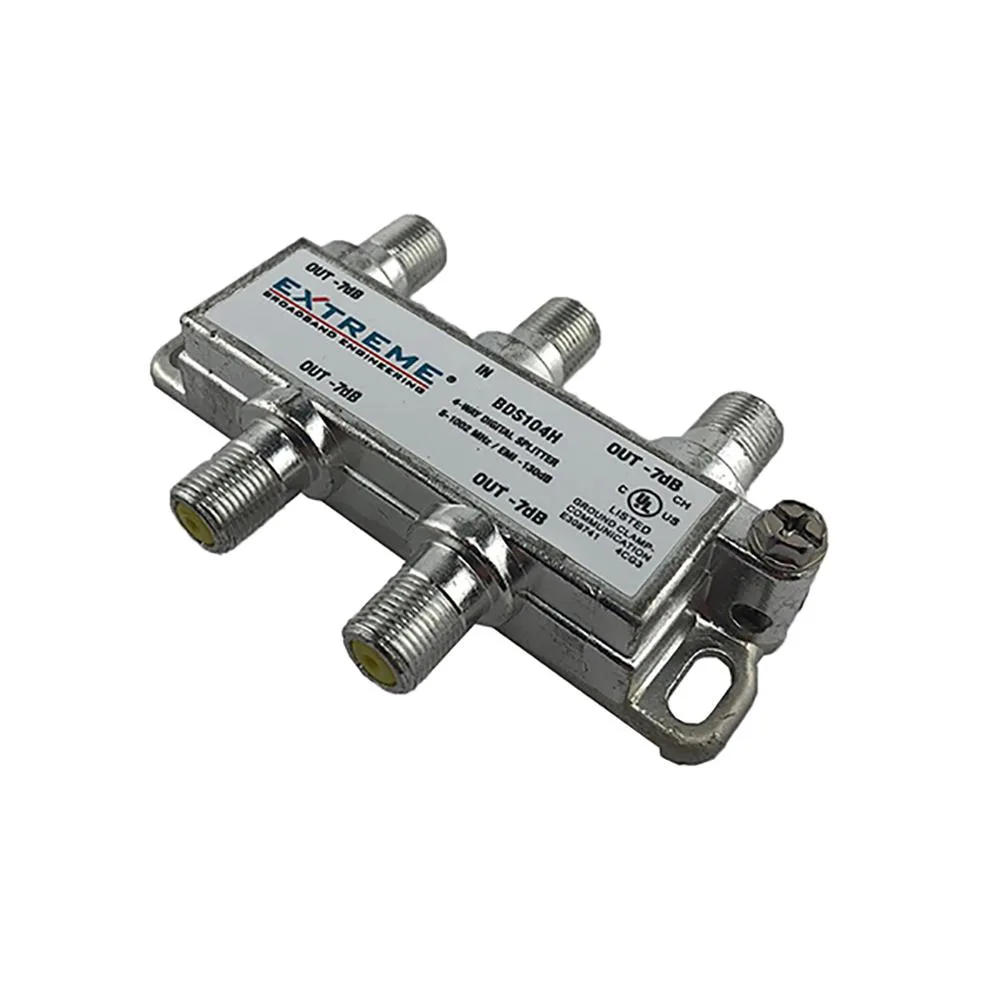

The Extreme BDS104H divides a single coaxial signal into four outputs across a 5-1000 MHz bandwidth. It is built for installers and homeowners distributing digital cable, antenna or satellite feeds to multiple rooms. A zinc alloy die-cast housing with a proprietary plating resists galvanic corrosion in indoor, outdoor, wet or dry locations. The fully soldered back cover maintains consistent electrical performance across every port.

Check port count and signal loss before ordering

Each output introduces insertion loss that weakens the signal reaching your tuners or modems. Verify that your source signal level can tolerate a four-way split without dropping below the minimum required by your devices. Confirm that all cables use F-type connectors compatible with the splitter’s seizure mechanism. The unit is pressure tested to 15 psi, so it suits exterior mounts, but ensure your enclosure or mounting surface accommodates the True Flex housing orientation.

Sealed ports maintain performance under sustained

The sealed F-ports prevent water ingress during prolonged rain, humidity or condensation cycles, preserving return-path integrity for interactive services. Zinc alloy construction and the proprietary plating withstand temperature swings and oxidation over years of continuous operation. The 4-sided center conductor seizure mechanism holds each cable firmly, preventing intermittent contact caused by vibration or thermal expansion. Signal balance remains stable across all four outputs throughout extended duty cycles.

Highlights

  • Splits signal four ways across 5-1000 MHz bandwidth
  • Sealed F-ports pressure tested to 15 psi block water ingress
  • Zinc alloy die-cast housing prevents galvanic corrosion
  • Proprietary plating adds extra environmental protection
  • Fully soldered back ensures reliable electrical performance

Specifications

BrandExtreme
Part NumberBDS104H
ColorSilver
Weight0.3

Questions about this item

Does the Extreme BDS104H include coax cables or F-connectors in the box, or must they be purchased separately?

The splitter ships as a single unit with zinc alloy die-cast housing and sealed F-ports. Coax cables and F-connectors are not included and must be sourced separately for each connection.

Is the 4-way BDS104H the right choice for a typical home installation, or would a 2-way or 8-way model be better?

The BDS104H provides four output ports from one input across 5-1000 MHz. Choose it when you need to feed four devices; a 2-way or 8-way model suits fewer or more drops respectively.

How does the 5-1000 MHz range perform when the splitter is installed outdoors in wet conditions?

The sealed F-ports are pressure tested to 15 psi, preventing water ingress. The zinc alloy housing with proprietary plating resists galvanic corrosion, maintaining signal integrity in wet or dry environments.
