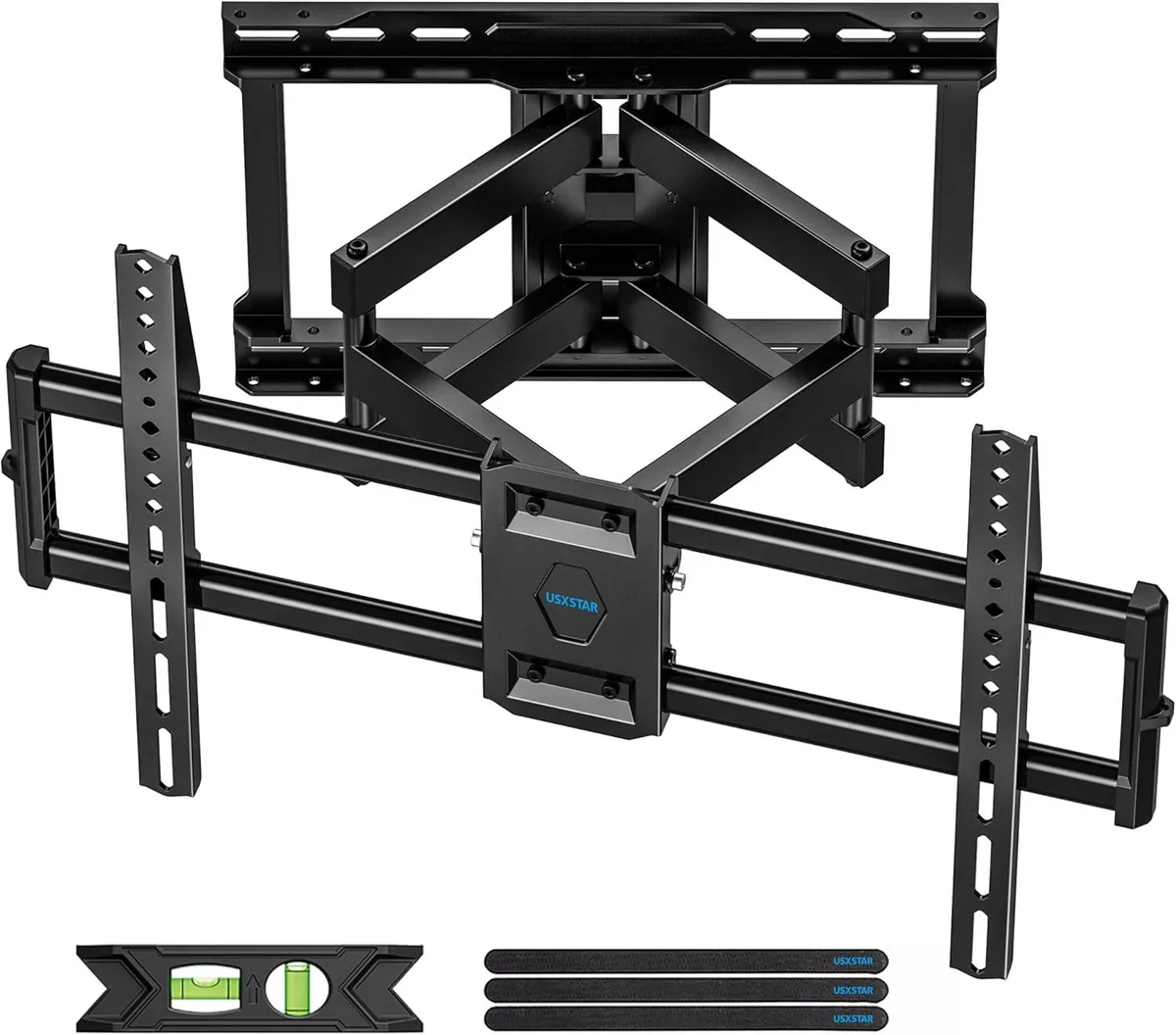

Black full-motion TV wall bracket with dual articulated arms, mounting plate and hardware

Explus-C

Explus-C Full Motion TV Mount 37-86" 132lbs VESA 600x400mm 16" Stud

SKU CH-BJCN-HSX25

Full-motion wall bracket holds 37-86 in. TVs up to 132 lbs, fits 16 in. studs and VESA up to 600x400 mm, tilts +5/-15°, swivels ±45°, extends 16.69 in. and retracts to 2.59 in

  • Mount StyleWall Mount
  • Supports 37 to 86 inch screens up to 132 lbs
  • Mounts on 16 inch wood studs with 600x400 max VESA
  • Tilt plus 5 minus 15 degrees and swivel plus minus 45 degrees
  • Retracts 2.59 inches and extends 16.69 inches from wall
  • Includes drilling template bubble level and pre labelled hardware bags

Full Motion Mount for 37 to 86 Inch TVs

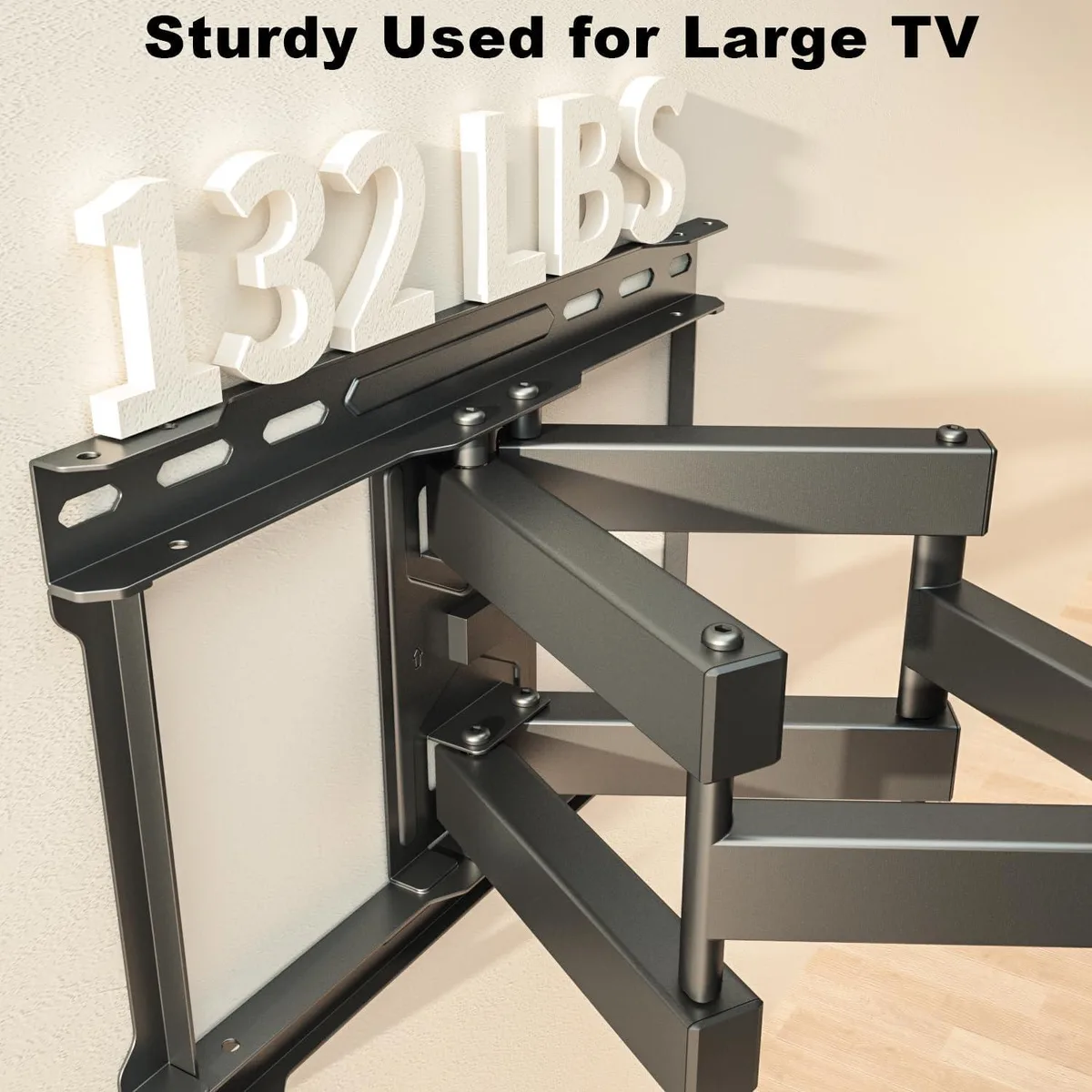

This full motion wall mount supports televisions from 37 to 86 inches weighing up to 132 lbs. It fits VESA patterns up to 600x400 mm and mounts on wood studs spaced 8, 12 or 16 inches apart. The bracket also works on solid brick or concrete walls with suitable anchors. It is built for living rooms, bedrooms or commercial spaces needing flexible screen positioning.

Dual Arm Articulation With 2.59 Inch Retraction

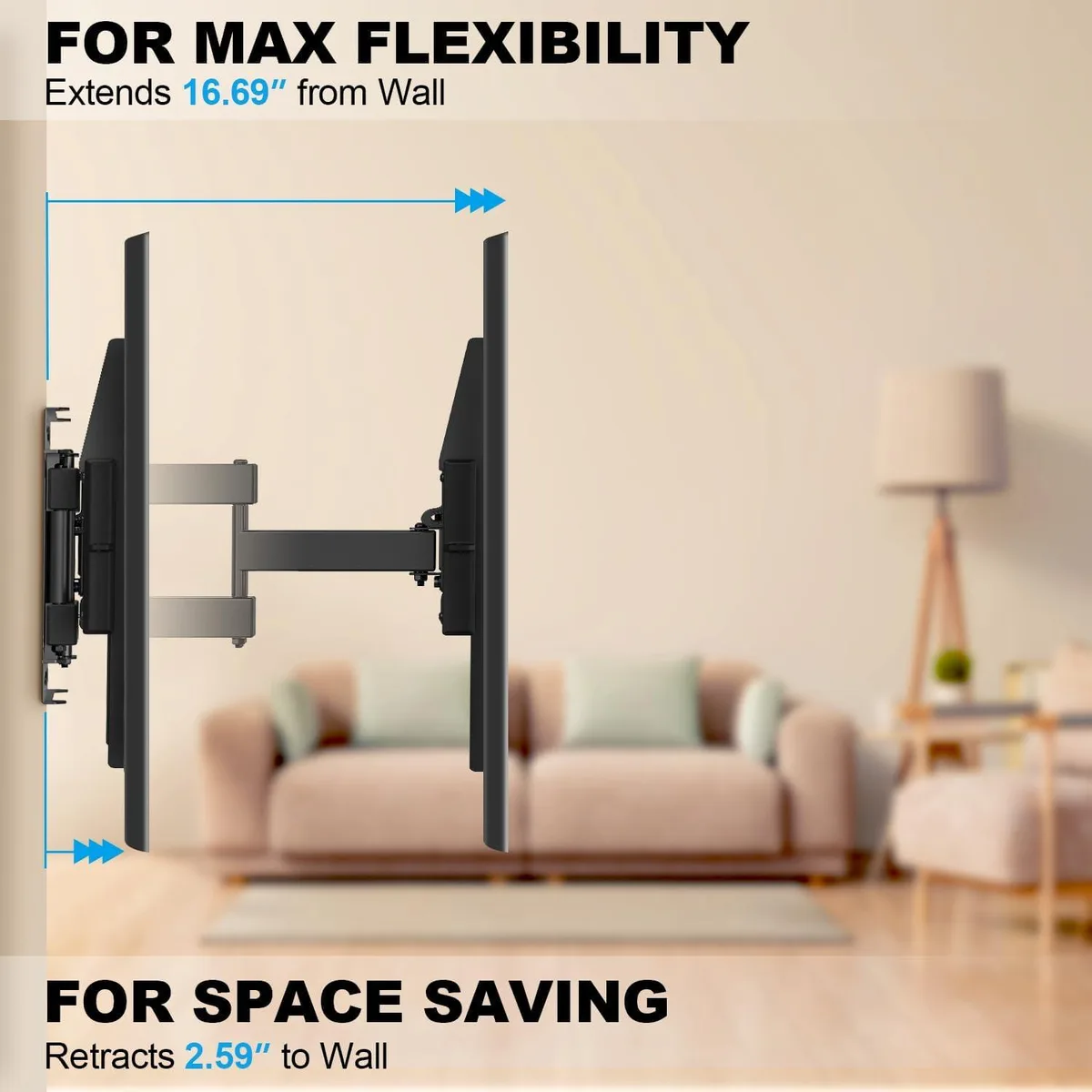

Two articulated arms let the screen swivel up to 45 degrees each side, tilt five degrees up or 15 degrees down and level adjust four degrees. In the home position the mount sits 2.59 inches from the wall and extends to 16.69 inches for full access. A drilling template, bubble level and pre labelled hardware bags simplify alignment on studs or masonry.

Upgrade From Fixed or Tilting Brackets

Owners of fixed or tilt only mounts gain swivel, extension and cable reach for corner seating or glare control. The jump is worth it when viewing angles change daily or when the screen must pull clear of a mantle or furniture. Installers without 16 inch stud spacing or concrete anchors should verify compatibility first.

Highlights

  • Supports 37 to 86 inch screens up to 132 lbs
  • Mounts on 16 inch wood studs with 600x400 max VESA
  • Tilt plus 5 minus 15 degrees and swivel plus minus 45 degrees
  • Retracts 2.59 inches and extends 16.69 inches from wall
  • Includes drilling template bubble level and pre labelled hardware bags

Specifications

Mount StyleWall Mount

Questions about this item

What VESA patterns does this mount support, and what is the largest one?

It supports VESA patterns from 200x100 mm up to 600x400 mm, covering 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, and 600x400 mm.

What wall structures and stud spacings can it be fixed to?

It fits wood stud spacing of 8, 12, or 16 inches, and is compatible with wood stud, solid brick, or concrete walls.

How far does the arm extend from the wall, and what is the retracted depth?

The arm extends up to 16.69 inches from the wall and retracts to 2.59 inches in the home position.
