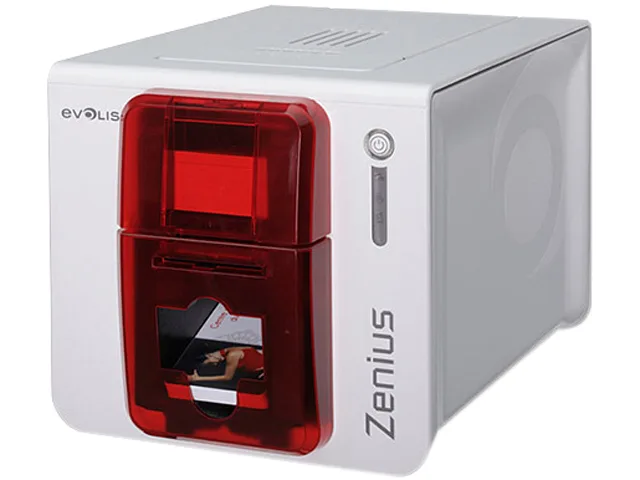

White and red compact card printer with front card feeder and output slot

Evolis

Evolis ZN1H0000RS card printer single-sided 50-card feeder 20-card output 300 dpi 16 MB LAN USB

SKU CH-FFCF-YD9ZW MPN ZN1H0000RS

Single-sided card printer with 300 dpi resolution, 50-card feeder, 20-card output, LAN and USB interfaces, 16 MB memory, quiet 46 dB operation

  • Max Resolution(B&W)300 dpi
  • Memory16 MB
  • InterfaceLan / USB
  • Windows CompatibleWindows XP SP3 32/64, Vista 32/64, W7 32/64, W8 32/64
  • Macintosh CompatibleMac 10.5 to 10.8
  • FeaturesFeeder capacity: 50 cards (0.76 mm - 30 mil) Output tray cap
  • Single-sided printing for employee badges and access cards
  • 300 dpi resolution renders logos, photos and barcodes sharply
  • 50-card feeder and 20-card output tray support small runs
  • LAN and USB interfaces connect to Windows or Mac systems
  • Compact 8.07" x 12.2" footprint runs at 46 decibels

Single-sided card printer for instant issuance

The Evolis Zenius Expert ZN1H0000RS prints one side of PVC or composite cards at 300 dpi resolution. It accepts a 50-card input feeder and delivers up to 20 finished cards to the output tray. Connectivity is provided by LAN and USB interfaces with 16 MB of internal memory. The unit measures 8.07 x 12.2 x 7.68 inches and weighs 7.3 lbs.

Suits low-volume badge and membership printing

This printer fits organisations that issue employee badges, access cards, loyalty cards or transit passes in small batches. It produces a colour card in roughly 30 seconds and up to 150 colour cards per hour. It is not intended for double-sided printing, high-volume production runs, or encoding magnetic stripes and smart contacts without optional modules.

Desktop setup with standard driver support

Installation uses Windows drivers for XP SP3 through Windows 8 in both 32-bit and 64-bit editions, plus Mac OS 10.5 to 10.8. The compact footprint allows placement on a counter or desk. Common issues include card jams if the thickness gauge is not calibrated for 0.25 to 0.76 mm stock, and network discovery problems when the Ethernet link is not configured on the local subnet.

Highlights

  • Single-sided printing for employee badges and access cards
  • 300 dpi resolution renders logos, photos and barcodes sharply
  • 50-card feeder and 20-card output tray support small runs
  • LAN and USB interfaces connect to Windows or Mac systems
  • Compact 8.07" x 12.2" footprint runs at 46 decibels

Specifications

BrandEvolis
ModelZN1H0000RS
Max Resolution(B&W)300 dpi
Memory16 MB
InterfaceLan / USB
Windows CompatibleWindows XP SP3 32/64, Vista 32/64, W7 32/64, W8 32/64
Macintosh CompatibleMac 10.5 to 10.8
FeaturesFeeder capacity: 50 cards (0.76 mm - 30 mil)
Output tray capacity: 20 cards (0.76 mm - 30 mil)
Card thickness: 0.25 to 0.76 mm (10 to 30 mil), calibration via the gauge
Types of cards: All PVC, Composite PVC cards, PET, RPET, ABS1
Card format: ISO CR-80 - ISO 7810 (53.98 mm x 85.60 mm - 3.375" x 2.125")
Power supply: 100 - 240 V AC, 50 - 60 Hz, 1.8 A
Printer: 24 V DC, 3 A
Dimensions8.07" x 12.2" x 7.68" (L x W x H)
Weight7.3 lbs.
Shipping weight3.63 kg
Package size381 × 279 × 254 mm

Questions about this item

Do I need to supply my own PVC or composite cards for the 50-card feeder?

Yes, the 50-card feeder accepts standard PVC and composite PVC cards measuring 0.25 to 0.76 mm thick.

Will the USB and LAN ports work with a Windows 7 64-bit workstation I still use?

The printer supports Windows 7 32-bit and 64-bit through both USB and LAN interfaces.

How can I confirm the 300 dpi print quality is correct after installing the ribbon?

Print a test card and verify that logos, photos, barcodes and text appear sharp with edge-to-edge coverage.
