EVGA
EVGA XR1 lite 141-U1-CB20-LR video capturing device
Capture gameplay at 1080p/60fps while playing at 4K/60fps via HDMI passthrough with USB 3.0 Type-C connectivity
- InterfaceUSB 3.0 Type-C
- Resolution Support4K
- SpecificationVideo Input Interface: HDMI (up to 4k@60fps) Audio Input Int
- FeatureThe EVGA XR1 lite capture card allows you to capture every e
- Dimensions3.94" x 2.87" x 0.61"
- Weight0.17 lb.
- Record at 1080p 60fps while gaming at 4K 60fps
- Certified for OBS so streaming starts without extra setup
- USB 3.0 Type-C interface gives low-latency capture
- HDMI 1.4 pass-through keeps 4K 60fps on your monitor
- Compact 100 mm by 73 mm design fits any desk
EVGA XR1 lite capture card

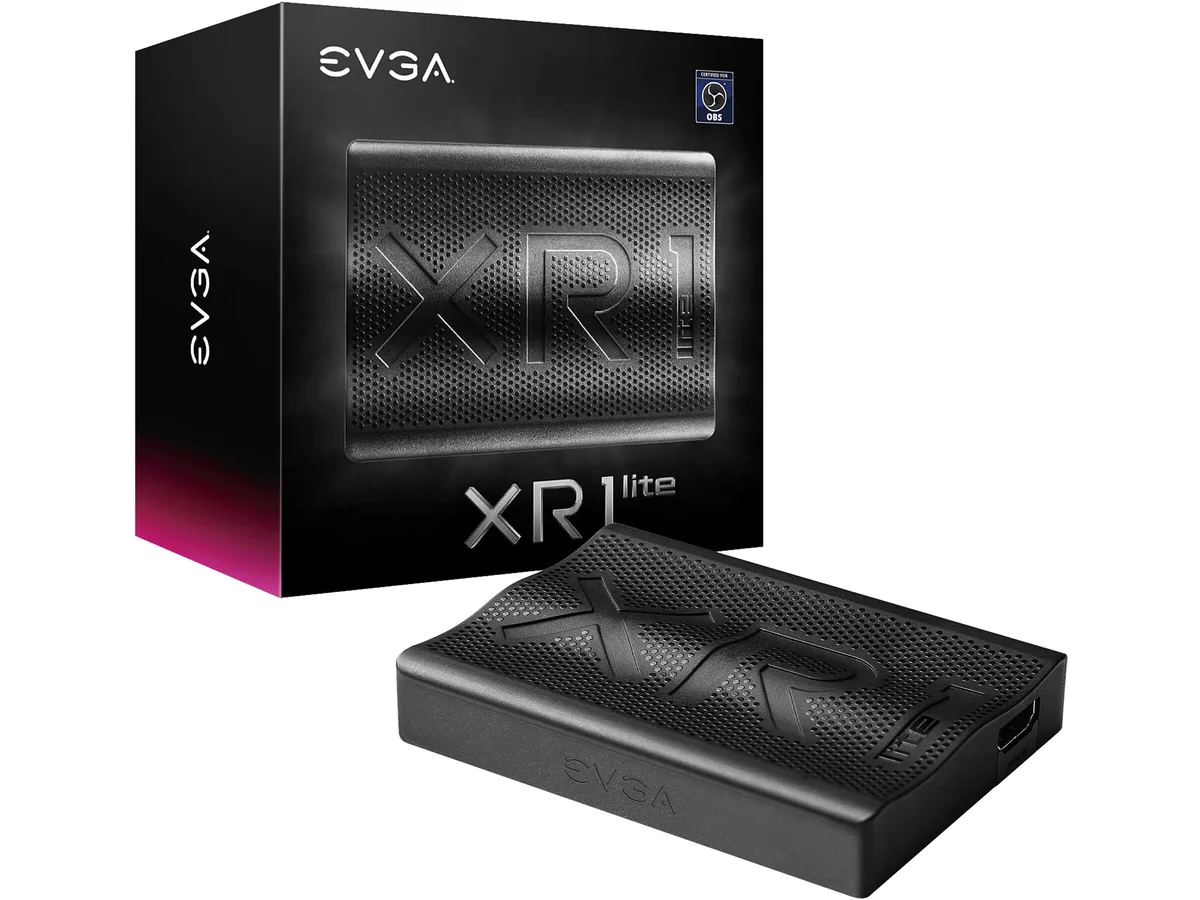

The EVGA XR1 lite is a USB 3.0 Type-C video capturing device that records gameplay at 1080p 60fps while passing 4K 60fps video to a display. It suits streamers who want to record console or PC footage and professionals who need a DSLR webcam upgrade for meetings.
Check HDMI 1.4 source and USB 3.0 port
Verify your console, PC or camera outputs HDMI 1.4 at 480p, 576p, 720p, 1080p or 2160p at 60fps. The host computer must provide a USB 3.0 Type-C connection and run software such as OBS, which the device is certified for.
Upgrades basic USB capture dongles
This unit replaces older capture sticks limited to 1080p input or higher latency encoding. The jump is worth it when you need 4K pass-through for lag-free gaming while simultaneously recording 1080p 60fps footage for streams or archives.
Highlights
- Record at 1080p 60fps while gaming at 4K 60fps
- Certified for OBS so streaming starts without extra setup
- USB 3.0 Type-C interface gives low-latency capture
- HDMI 1.4 pass-through keeps 4K 60fps on your monitor
- Compact 100 mm by 73 mm design fits any desk
Specifications
| Brand | EVGA |
|---|---|
| Series | XR1 lite Capture Card |
| Model | 141-U1-CB20-LR |

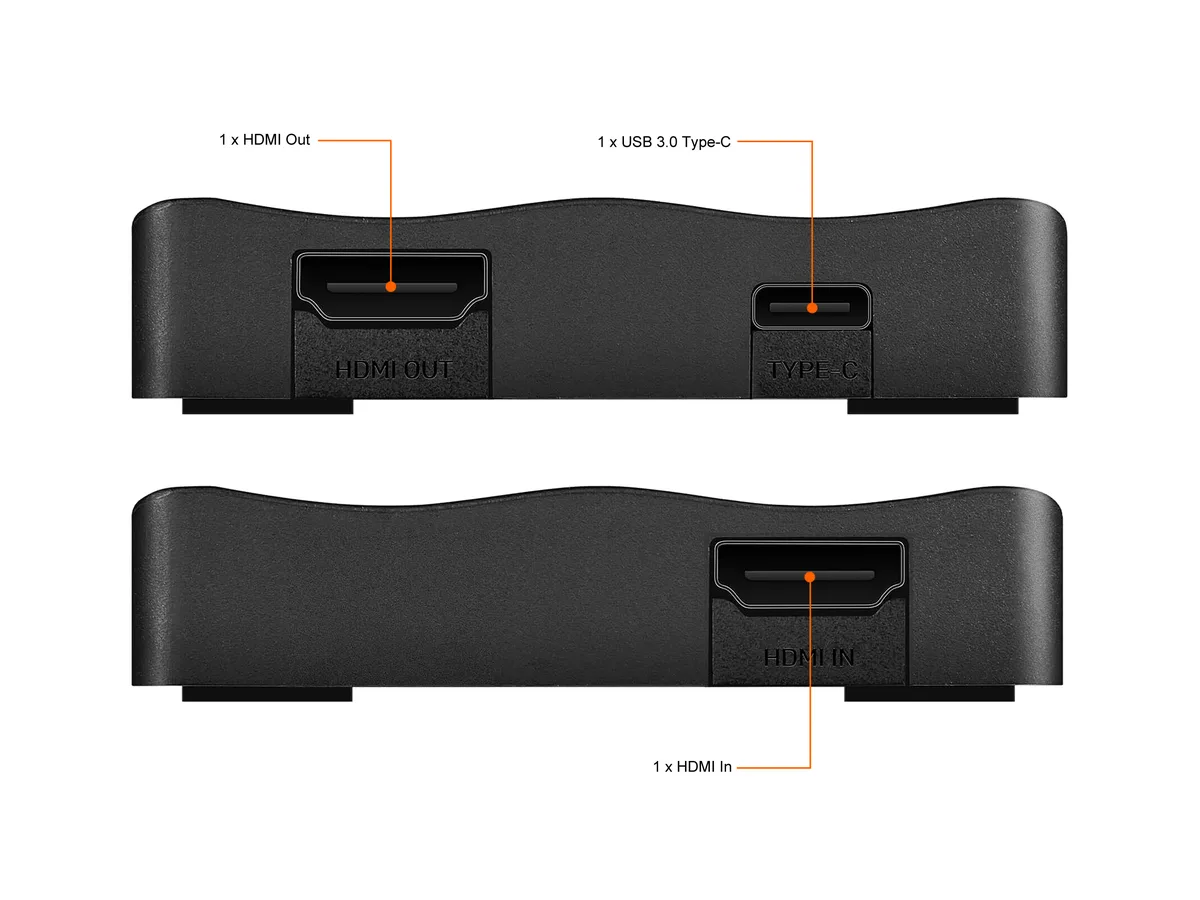

| Interface | USB 3.0 Type-C |
| Resolution Support | 4K |
| Specification | Video Input Interface: HDMI (up to 4k@60fps) Audio Input Interface: HDMI Video Bypass: HDMI (up to 4k@60fps) Video Resolution Input: 480p / 576p / 720p / 1080p / 2160p@60fps Video Resolution Pass Through: 480p / 576p / 720p / 1080p / 2160p@60fps Encode Resolution: Up to 1080p @ 60fps Encode Format: Raw |
| Feature | The EVGA XR1 lite capture card allows you to capture every epic gameplay moment-Record at 1080p/60fps while you game at 4K/60fps. The new compact design and USB 3.0 are perfect for capturing gameplay or connect it to a DSLR camera for a high-quality webcam option. |

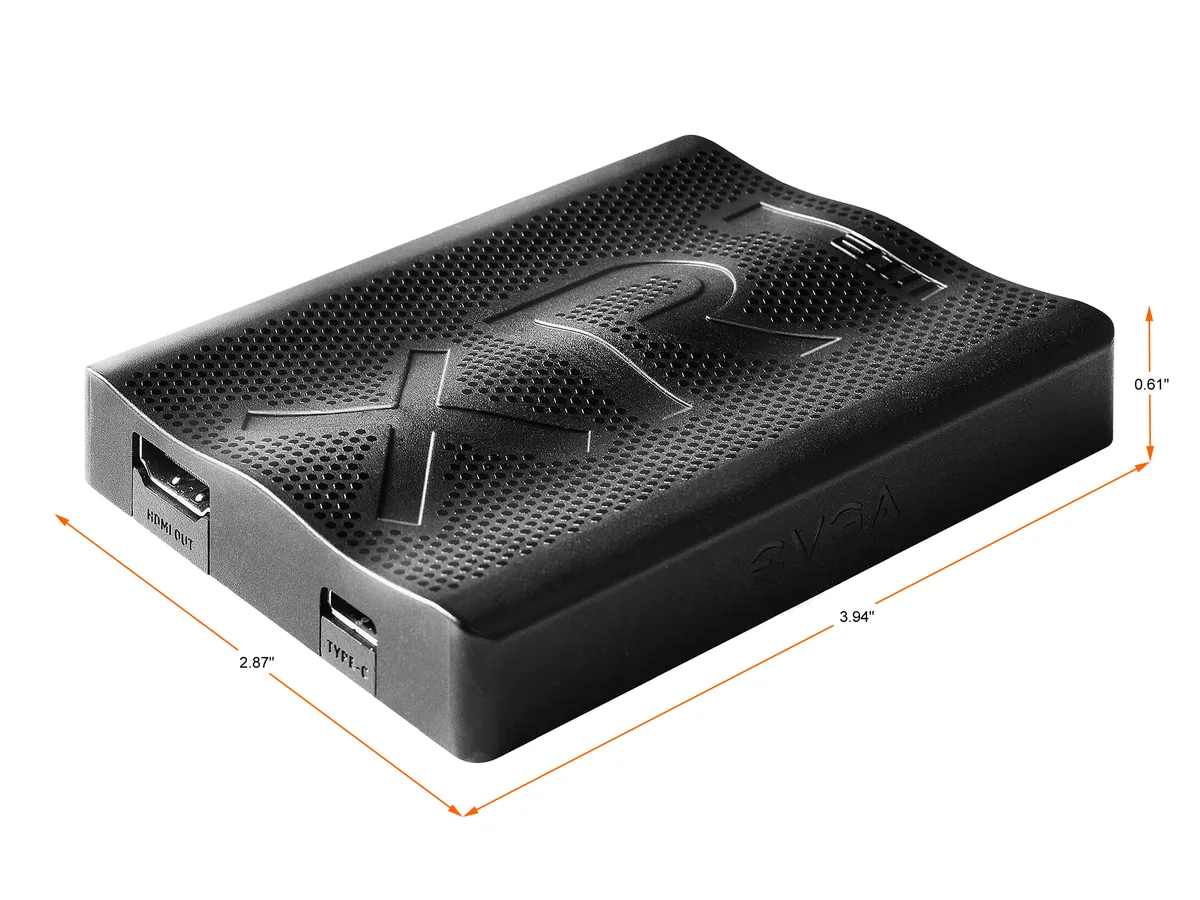

| Dimensions | 3.94" x 2.87" x 0.61" |
| Weight | 0.17 lb. |
| Option | XR1 Lite |
| Shipping weight | 0.35 kg |
| Package size | 134 × 132 × 54 mm |
Questions about this item
What cables and accessories come with the EVGA XR1 lite 141-U1-CB20-LR capture card?
The card ships with a USB 3.0 Type-C cable for connecting to your PC or laptop. You supply the HDMI cables for the source device and the pass-through display.
The specs list 2160p input and 1080p max capture — which version should I choose for 4K pass-through recording?
This single XR1 Lite model handles 4K at 60 fps pass-through while capturing at 1080p 60 fps; there is no higher-capture variant to select.
How does the 1080p 60 fps capture limit look when I am gaming at 2160p 60 fps on a PS5 or PC?
Your monitor sees the full 4K 60 fps signal through the HDMI pass-through, while the USB stream records or broadcasts at 1080p 60 fps simultaneously.
