Silver 1U rackmount server chassis with front LCD fan control display and twelve 2.5 inch drive bays

EVESKY

EVESKY IPC-G1320M 1U server chassis 12×2.5″ bay LCD fan control

SKU CH-88RN-8WKB6

A 1U rack-mount chassis holding up to twelve 2.5″ drives with an LCD fan controller that auto-starts fans at 38 °C and lets you tune each between 30 °C and 60 °C

  • Chassis TypeDesktop
  • 1U rackmount fits Micro-ATX or Mini-ITX boards in 12.60" depth
  • 12 x 2.5" drive bays support 9.5 mm or 15 mm heights
  • LCD fan controller auto-starts fans at 38 °C with per-fan 30–60 °C adjustment
  • Four-fan failure alerts with audible warning silenceable by any button
  • Single full-height expansion slot via riser card for low-profile cards up to 64.4 mm

1U rackmount chassis with twelve 2.5″ bays

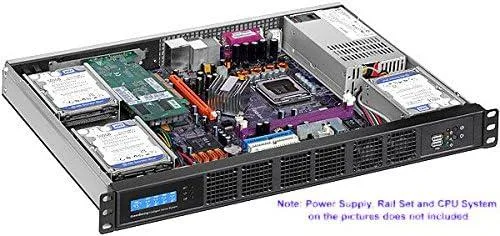

The EVESKY IPC-G1320M is a 1U server chassis that fits Micro-ATX or Mini-ITX boards and holds up to twelve 2.5″ drives. An integrated LCD panel shows temperatures and lets you tune fan curves from the front. No power supply, rails or compute components are included, so it is aimed at integrators building custom storage or edge nodes.

Verify board size, drive height and expansion needs

Confirm the motherboard is Micro-ATX or Mini-ITX and that the 1U Flex ATX power supply you plan to use matches the chassis mounting. Choose a drive configuration that matches your SSD or HDD heights: 9.5 mm drives allow up to twelve bays, while 15 mm drives reduce the maximum to six. Adding a full-height expansion card via the horizontal riser slot limits some drive layouts and removes the option if a 3.5″ HDD is installed.

Replaces basic 1U cases without front monitoring

This chassis upgrades from plain 1U enclosures that lack a front LCD and per-fan temperature control. The jump is worthwhile when you need real-time thermal visibility, automatic fan activation at 38 °C with per-fan adjustment between 30 °C and 60 °C, and support for dense 2.5″ storage arrays. It is not for builds that require multiple full-height cards, standard ATX power supplies or 3.5″ drives with simultaneous expansion-card use.

Highlights

  • 1U rackmount fits Micro-ATX or Mini-ITX boards in 12.60" depth
  • 12 x 2.5" drive bays support 9.5 mm or 15 mm heights
  • LCD fan controller auto-starts fans at 38 °C with per-fan 30–60 °C adjustment
  • Four-fan failure alerts with audible warning silenceable by any button
  • Single full-height expansion slot via riser card for low-profile cards up to 64.4 mm

Specifications

Chassis TypeDesktop

Questions about this item

Does the EVESKY IPC-G1320M come with a power supply, rails or drives?

The chassis is sold as case only. No power supply, rail kit or drives are included. You must buy a 1U Flex ATX PSU and drives separately.

Which drive configuration should I choose for the 12×2.5″ bays?

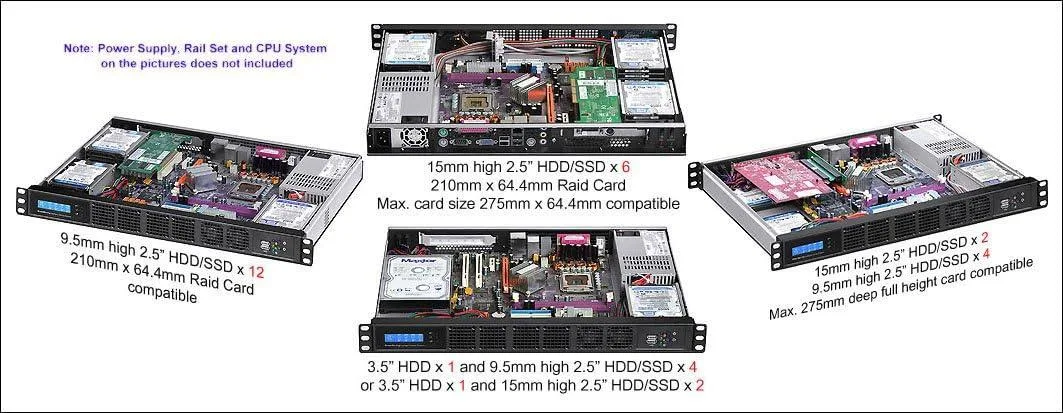

Twelve 9.5 mm drives fit with a low-profile card. Six 15 mm drives also fit with a low-profile card. Mixed 15 mm and 9.5 mm layouts are listed in the specs.

What does the 38 °C default on the LCD fan controller mean in practice?

All fans start automatically once the system reaches 38 °C. Each fan can be tuned individually between 30 °C and 60 °C via the front LCD panel.
