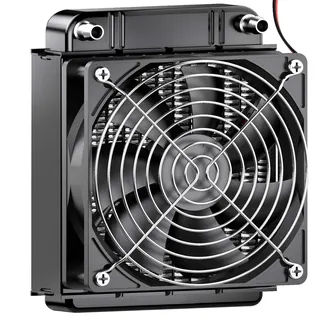

Black aluminium water-cooling radiator with eight tubes and a mounted 80 mm fan

EVESKY

EVESKY 8-Pipe Aluminium Water Cooling Radiator 80mm Black

SKU CH-AH82-2JJDT

Eight-pipe aluminium radiator with 12 V fan cools CPU, GPU or industrial gear in a 105 × 80 × 37 mm black housing

  • Accessory TypeCooler
  • Pure aluminium fins dissipate heat efficiently across 8 channels
  • Black oxidation paint increases thermal efficiency for better cooling
  • 12 V high-speed fan mountable on 69.5 mm centres
  • Compact 105 × 80 × 37 mm size fits tight spaces
  • Vacuum-brazed joints prevent leaks in custom water loops

80 mm 8-pipe aluminium radiator

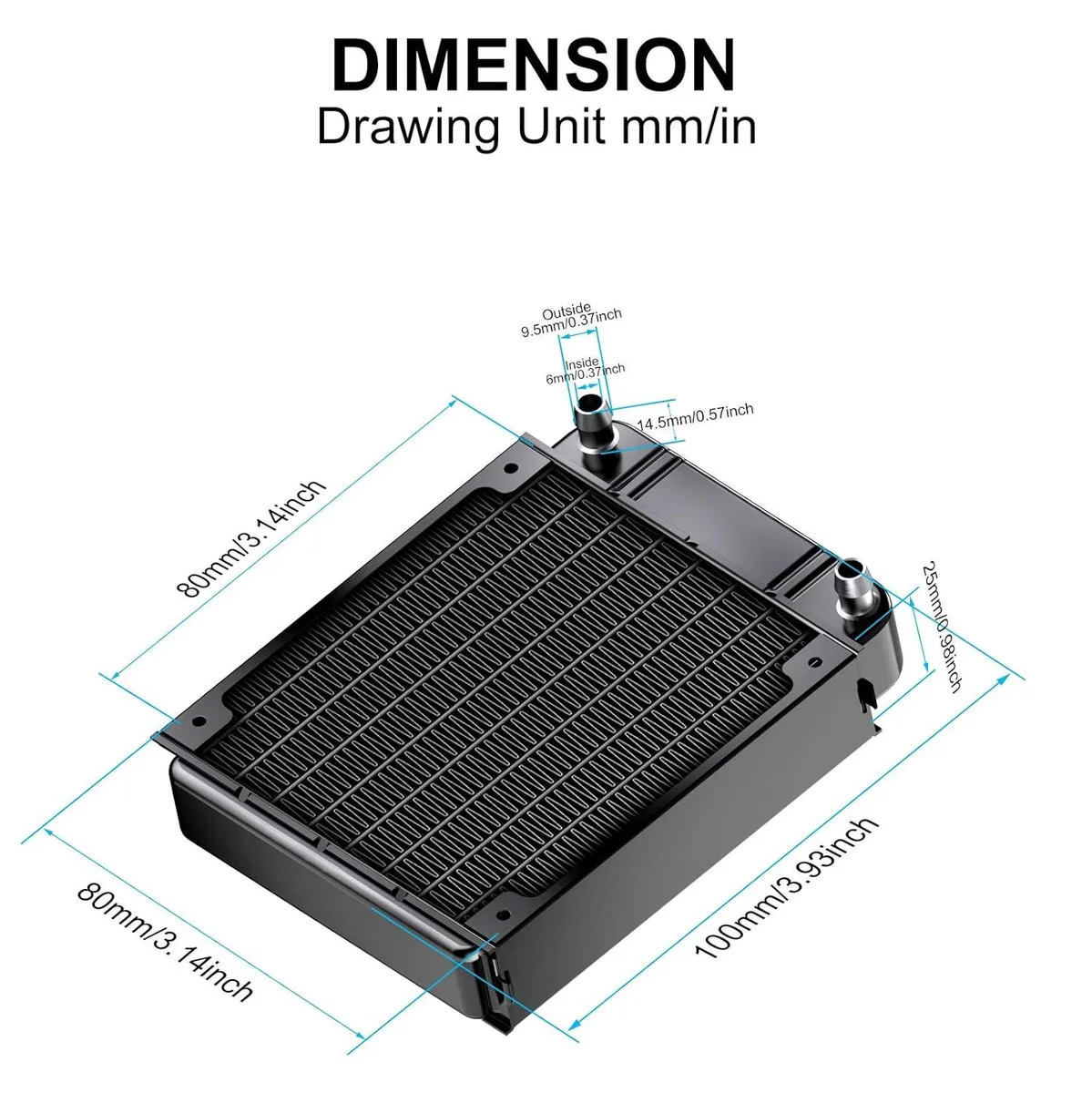

This 80 mm radiator uses eight parallel aluminium tubes to move heat from liquid-cooled CPUs, GPUs, laser heads or industrial drives. Pure aluminium fins with 18 lines per inch and a black oxidation finish raise thermal efficiency. The unit weighs 250 g and measures 105 x 80 x 58 mm overall.

Vacuum-brazed construction and 80 mm fan mount

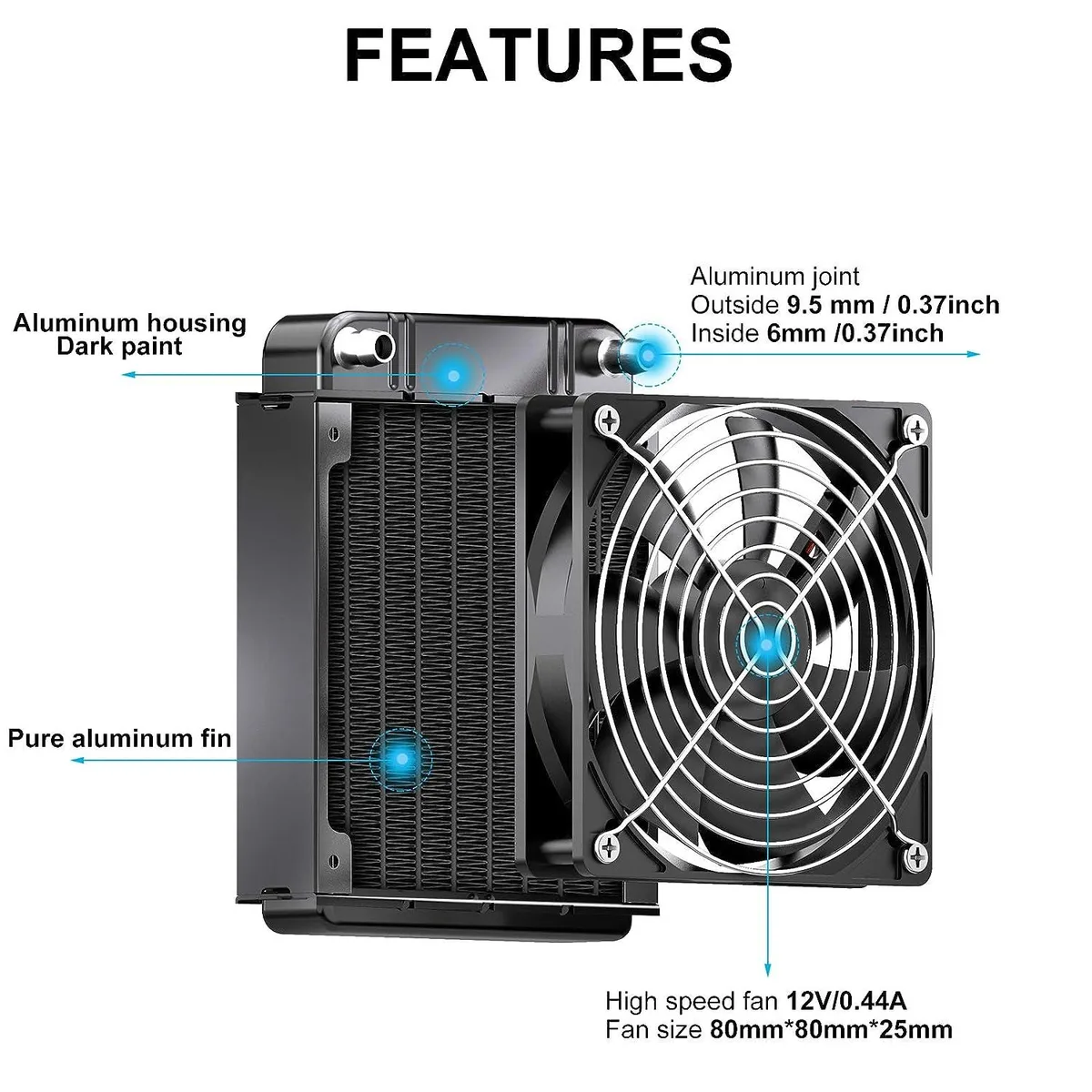

Vacuum aluminium brazing seals the joints without weak welds or leakage, while a disposable stainless-steel band secures each 9.5 mm barb for 8–12 mm ID tubing. Mounting holes spaced 69.5 x 69.5 mm accept a standard 80 mm DC 12 V fan; shorter 7 x 3 mm screws must be used to avoid piercing the internal channels.

Upgrade from single-pass radiators

Builders moving from a single-row core gain eight flow paths in the same 80 mm footprint, cutting coolant temperature rise under sustained load. The jump is worth it when loop restriction is low enough for the existing pump to maintain flow through the added passages. Not for loops that require larger barb sizes or radiators thicker than 58 mm.

Highlights

  • Pure aluminium fins dissipate heat efficiently across 8 channels
  • Black oxidation paint increases thermal efficiency for better cooling
  • 12 V high-speed fan mountable on 69.5 mm centres
  • Compact 105 × 80 × 37 mm size fits tight spaces
  • Vacuum-brazed joints prevent leaks in custom water loops

Specifications

Accessory TypeCooler

Questions about this item

What fan size does the 80 mm radiator support, and what are the mounting hole dimensions?

The unit accepts an 80 mm fan with mounting holes spaced 69.5 mm by 69.5 mm.

What are the screw lengths provided, and which holes must not receive the longer screws?

Two screw sets are included: 31 mm long and 7 mm long. The longer screws must not be used in the holes that sit above the internal channel pipes.

How is the radiator connected to tubing, and what tube inner diameters will fit?

The 9.5 mm barbs accept tubing with an inner diameter of 8 to 12 mm, secured by the supplied stainless steel bands.
