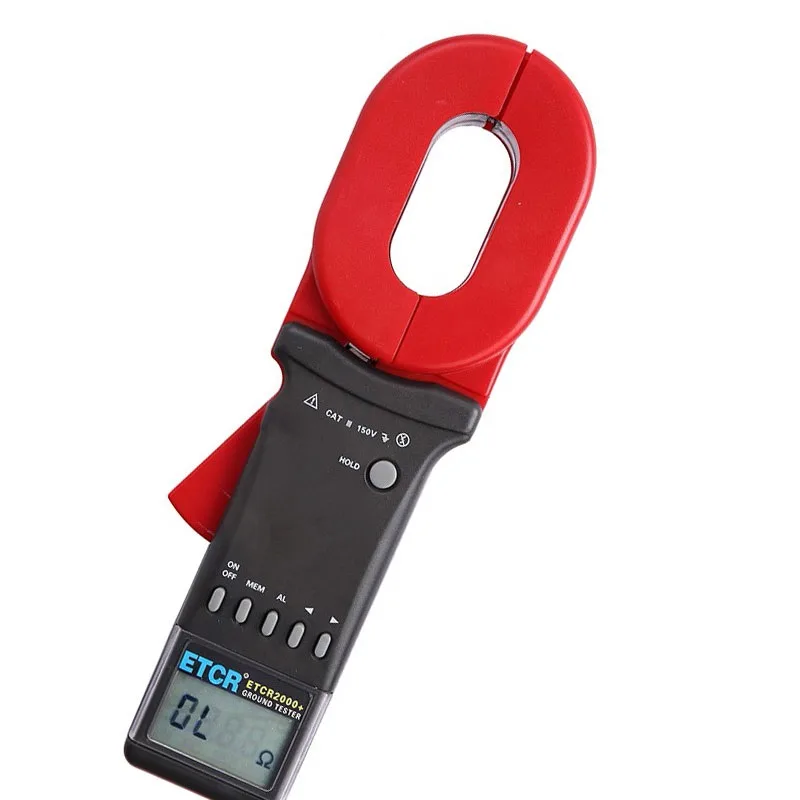

Red clamp earth resistance tester with 65 by 32 millimetre jaw and six-button panel

ETCR

ETCR ETCR2000+ Clamp Earth Resistance Tester 0.01-1200ohm 99 groups

SKU CH-9ZAV-SM8YB MPN ETCR2000

Measures earth resistance from 0.01 to 1200 ohms with a 65 by 32 mm jaw, stores 99 data groups and starts testing instantly

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Measures earth resistance without breaking the ground wire or using auxiliary electrodes
  • Jaw opening 65 mm by 32 mm fits large conductors up to 32 mm diameter
  • Stores 99 measurement groups for later review and documentation
  • Resolution of 0.01 ohm across a 0.01 to 1200 ohm range
  • Low power draw with maximum operating current not exceeding 50 mA

Earth resistance tester for loop systems

The ETCR2000+ clamp meter measures grounding resistance from .01 to 1200 ohm without disconnecting the earth wire or driving auxiliary electrodes. It stores up to 99 groups of readings for later review. A 65 by 32 millimetre jaw opens to a 32 millimetre diameter, fitting typical conductors in power, telecom, meteorology, oilfield and industrial installations. Six front-panel buttons give direct access to measurement and memory functions.

Sustained-use behaviour

Maximum operating current stays at or below 50 mA, so battery drain remains low during extended survey sessions. The instrument powers up and enters test mode immediately, eliminating the long self-test delays found in older designs. An integrated sound and light alarm signals when readings exceed a preset threshold, allowing continuous monitoring without watching the display. Digital integration algorithms handle the measurement cycle automatically, keeping performance stable over repeated tests.

Pre-purchase checks

Verify that the conductor diameter does not exceed 32 millimetres so the clamp can close fully. Confirm the expected resistance range falls within .01 to 1200 ohm, as the tester cannot read outside those limits. Ensure the application involves a closed-loop grounding path, because the clamp method requires return current through the earth system. No auxiliary rods or test leads are needed, but the grounding circuit must be complete for a valid measurement.

Highlights

  • Measures earth resistance without breaking the ground wire or using auxiliary electrodes
  • Jaw opening 65 mm by 32 mm fits large conductors up to 32 mm diameter
  • Stores 99 measurement groups for later review and documentation
  • Resolution of 0.01 ohm across a 0.01 to 1200 ohm range
  • Low power draw with maximum operating current not exceeding 50 mA

Specifications

BrandETCR
ModelETCR2000+
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How much current does the ETCR2000+ draw when running continuously all day?

The maximum operating current does not exceed 50 mA, keeping power consumption low during extended use.

What jaw size must the earth conductor fit through for the ETCR2000+ to clamp correctly?

The jaw opening measures 65 by 32 mm with a 32 mm diameter, so the conductor must fit within those dimensions.

Can the ETCR2000+ measure a grounding system without disconnecting the earth wire or driving auxiliary electrodes?

Yes, it measures loop resistance directly on live grounding systems without breaking the wire or using auxiliary electrodes.
