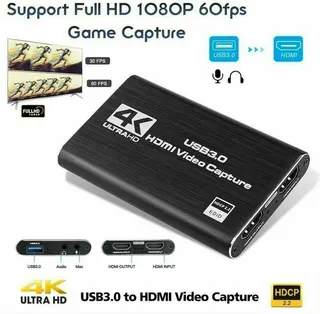

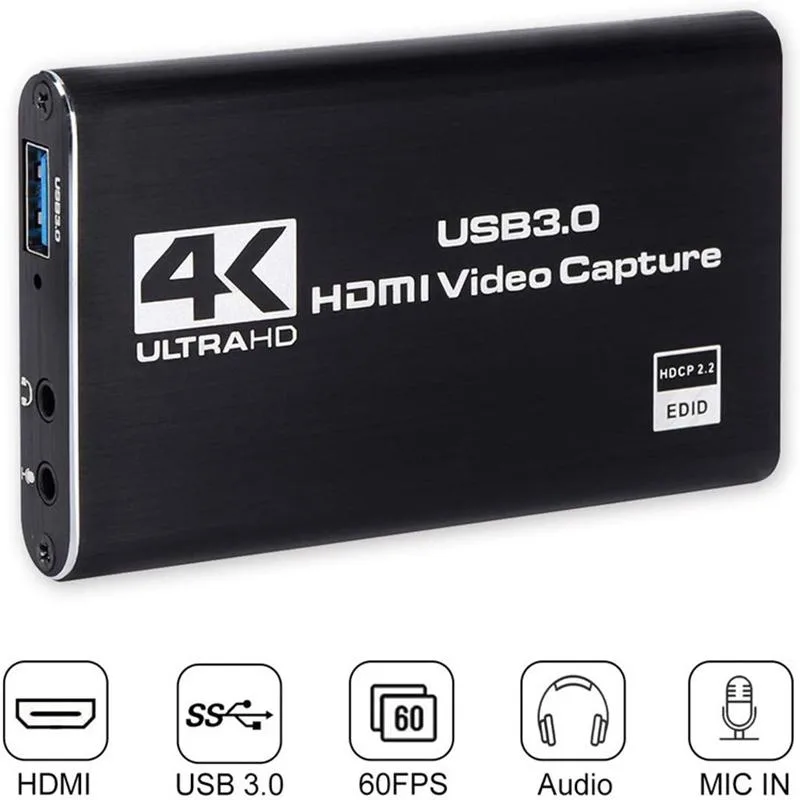

Small black aluminium dongle with HDMI in, HDMI out and USB 3.0 cable

ESTONE

ESTONE YCY-2353 USB 3.0 HDMI video capturing device 4K loopout

SKU CH-WA25-PQTAR

Captures 1080p 60 Hz video via USB 3.0 with 4K 30 Hz HDMI loopout for passthrough monitoring

  • InterfaceUSB 3.0
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input
  • Captures 1080p at 60 fps for smooth recordings
  • 4K loop-out at 30 Hz lets you play while streaming
  • USB 3.0 delivers 300-350 MB/s throughput without extra power
  • Works with Windows, macOS, Linux and Android out of the box
  • Aluminium body runs at ≤ 2.5 W for cool, quiet operation

What the ESTONE YCY-2353 does

This USB 3.0 capture device accepts an HDMI signal up to 4K at 30 Hz and records or streams at 1080p up to 60 fps. It suits creators who need a simple way to bring console gameplay, camera feeds or conference video into Windows, macOS, Linux or Android without opening a PC case. The aluminium body draws under 2.5 W and runs from the USB port alone.

Accessories that change the workflow

A USB 3.0 cable and a printed manual are included so the unit works out of the box. The HDMI loop-through output passes the source image to a monitor or projector at up to 4K 30 Hz while the USB stream captures 1080p, letting you game or present on a big screen and record simultaneously. An S-Video port adds legacy analogue input for older cameras or decks.

Installation experience and common issues

Driver-free UVC and UAC support means most systems recognise the device instantly in OBS, Zoom or other software. The manual lists a desktop i5-3400 or laptop i7-3537U CPU, a GT630 or GT735M graphics card and 4 GB RAM as minimum specs; machines below that may drop frames at higher frame rates. USB 2.0 ports work but limit throughput to well under the 300–350 MB/s the hardware can deliver.

Highlights

  • Captures 1080p at 60 fps for smooth recordings
  • 4K loop-out at 30 Hz lets you play while streaming
  • USB 3.0 delivers 300-350 MB/s throughput without extra power
  • Works with Windows, macOS, Linux and Android out of the box
  • Aluminium body runs at ≤ 2.5 W for cool, quiet operation

Specifications

BrandESTONE
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
USB Port1
S-Video1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the i
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces
Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;
OptionAdvanced

Questions about this item

Will the aluminium-alloy casing or USB 3.0 connector need any periodic servicing?

No scheduled servicing is required; the aluminium-alloy body and USB 3.0 plug are solid-state with no moving parts to wear out.

What throughput ceiling appears first when capturing 1080p 60 Hz video continuously?

The USB 3.0 link caps sustained throughput at 300-350 MB/s, which is reached before the 1080p 60 Hz stream exceeds the bus.

How warm does the dongle get and how much power does it draw during an all-day stream?

It draws ≤2.5 W from the USB port and stays cool enough for continuous use without an external power supply or fan.
