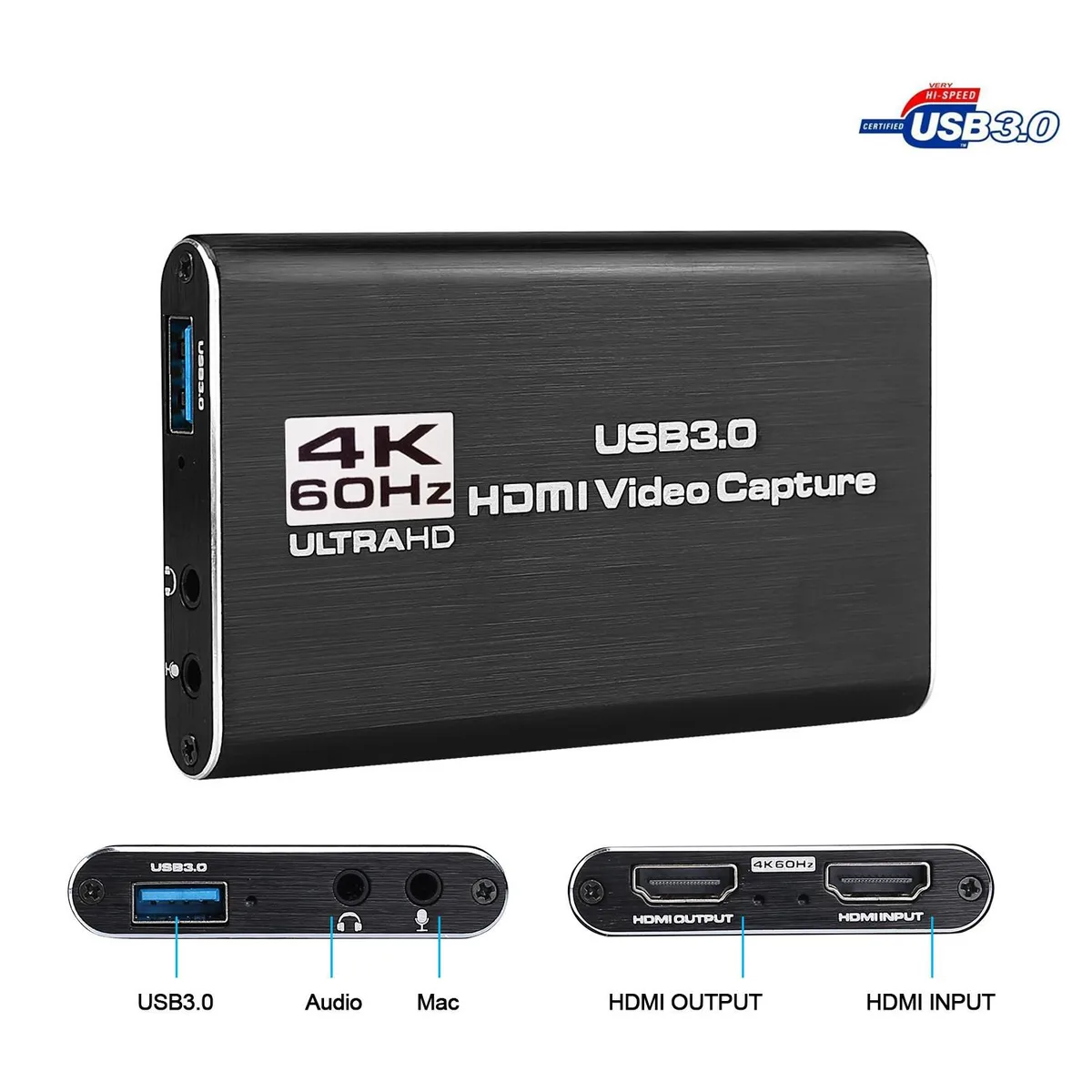

Small black aluminium dongle with HDMI in, HDMI out, USB 3.0 port and mic jack

ESTONE

ESTONE YCY-2353 USB 3.0 HDMI Video Capturing Device 1080p 60fps 4K 30Hz Mic Input

SKU CH-QPRZ-25XYG

Captures 4K 30 Hz and 1080p 60 Hz HDMI video to USB 3.0 with a built‑in mic input for streaming and recording

  • InterfaceUSB 3.0
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input
  • Capture 1080p at 60 fps for smooth recordings
  • Pass through 4K at 30 Hz to a monitor while recording
  • Plug into USB 3.0 with no external power needed
  • Add live commentary through the built-in mic input
  • Works on Windows, macOS, Linux and Android

Capture Capability

The ESTONE YCY-2353 is a USB 3.0 video capture device that accepts an HDMI signal up to 4K at 30 Hz and records or streams at 1080p 60 fps. It includes a microphone input for adding live commentary and an HDMI loop-through output for a local display. The aluminium alloy dongle draws power from the USB port and requires no external supply.

Who It Suits

Streamers and educators who need a portable capture solution for a single HDMI source on Windows, macOS, Linux or Android will find the UVC/UAC compliance and broad resolution list convenient. Users who require 4K 60 fps capture, multi-source switching or internal PCIe bandwidth should look at a different class of device.

Deciding Specification

The critical figure is the HDMI input limit of 4K at 30 Hz combined with a 1080p 60 fps capture ceiling; if your source outputs 4K 60 Hz you will not be able to record it at that rate with this unit.

Highlights

  • Capture 1080p at 60 fps for smooth recordings
  • Pass through 4K at 30 Hz to a monitor while recording
  • Plug into USB 3.0 with no external power needed
  • Add live commentary through the built-in mic input
  • Works on Windows, macOS, Linux and Android

Specifications

BrandESTONE
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
USB Port1
S-Video1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the i
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces
Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;
OptionAdvanced

Questions about this item

How much power does the ESTONE YCY-2353 draw during an all-day stream and does it need a separate power brick?

The capture device consumes no more than 2.5 W and is powered entirely through the USB 3.0 connection, so no external power supply is required.

What computer specifications must I already have for the YCY-2353 to operate correctly?

You need a desktop CPU equivalent to an i5-3400 or better, a laptop CPU like an i7-3537U at 2.0 GHz or higher, a graphics card at least as capable as an NVIDIA GT630 on desktop or GT735M on laptop, and at least 4 GB of system RAM.

Will the YCY-2353 pass through a 1080p 60 Hz signal to my existing monitor while capturing at the same time?

Yes, the HDMI output provides a passthrough that supports 1080p at 60 Hz, allowing your current display to show the source while the USB 3.0 link captures the stream.
