ESTONE

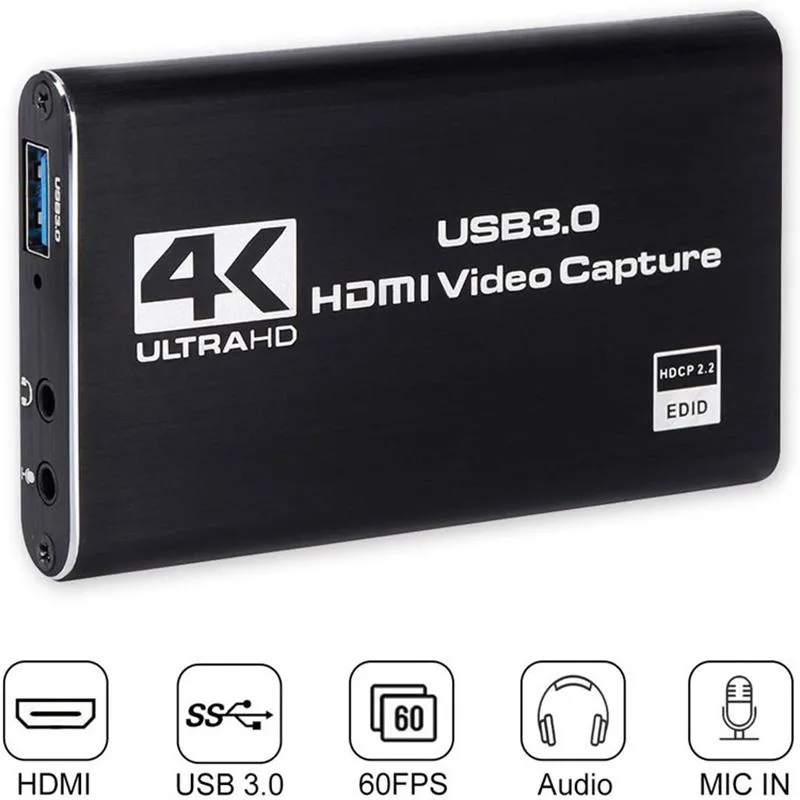

ESTONE YCY-2353 4K USB 3.0 Video Capture Card
Captures HDMI sources up to 4K 30 Hz input and records 1080p 60 fps video via USB 3.0 with 300–350 MB/s throughput, no external power required
- InterfaceUSB 3.0
- FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
- Resolution Support1080P
- Camera ResolutionUp to 1080p Video
- ColorBlack
- VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input
- Records 1080p at 60 fps for smooth gameplay footage
- HDMI 4K 30 Hz pass-through lets you play on a monitor while capturing
- USB 3.0 delivers 300 to 350 MB/s throughput without external power
- Works on Windows, macOS, Linux and Android with UVC and UAC drivers
- Aluminium alloy body runs at 2.5 W and fits in a pocket
Purpose and audience
The ESTONE YCY-2353 is a USB 3.0 video capture device that converts an HDMI source into a UVC stream for recording or live streaming. It targets creators who need a compact dongle for game consoles, cameras or conference gear and want plug-and-play operation on Windows, macOS, Linux or Android without installing proprietary drivers.
Interface limits
The USB 3.0 link delivers 300 to 350 MB/s throughput, which caps capture at 1080p 60 fps even though the HDMI input accepts 4K at 30 Hz. Passthrough mirrors the incoming signal to a local display, but the recorded file never exceeds 1920×1080. Audio is limited to 48 kHz PCM stereo, and the dongle draws no more than 2.5 W from the host port.
Installation and common issues
Connect the HDMI source, plug the USB 3.0 cable into a blue port, and the device appears as a standard webcam in OBS, Zoom or any UVC-compatible software. No external power brick is required. Builders using USB 2.0 ports will see frame rates drop to 30 fps or lower, and systems below the listed i5-3400 or GT630 baseline may drop frames during extended sessions.
Highlights
- Records 1080p at 60 fps for smooth gameplay footage
- HDMI 4K 30 Hz pass-through lets you play on a monitor while capturing
- USB 3.0 delivers 300 to 350 MB/s throughput without external power
- Works on Windows, macOS, Linux and Android with UVC and UAC drivers
- Aluminium alloy body runs at 2.5 W and fits in a pocket
Specifications
| Brand | ESTONE |
|---|---|
| Series | YCY-2353 |
| Model | YCY-2353 |
| Interface | USB 3.0 |
| Format | Output Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more |
| Resolution Support | 1080P |
| Camera Resolution | Up to 1080p Video |
| Color | Black |
| Video | The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz; |
| Audio | support 48 KHz PCM audio sampling rate |
| HDMI | 1 Input/1 Output |
| USB Port | 1 |
| S-Video | 1 Input/1 Output |
| LED Indicator | Yes |
| Display | HDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically. |
| Compatibility | The HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok. |
| System Requirements | Windows / Android / MacOS/ Linux ect. |
| Power Consumption | <= 2.5W |
| Power Supply | NO need external power supply |
| Specification | 1. Input interface: 1 HDMI interface; 2. Output interface: USB3.0, 300 ~ 350MB / s throughput; 3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480 4. HDMI sound input: LPCM sound signal; 5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color; 6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 / 1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10 |
| Feature | 1. It can capture single HD HDMI video signal; 2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz; 3. Support MJPEG and YUY2; 4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate; 5. Some win7 need to install the driver; 6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems; 7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth); 8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate; 9. Can automatically detect the i |
| Dimensions | 4.88 x 4.65 x 2.52 inches |
| Weight | 0.035 ounces |

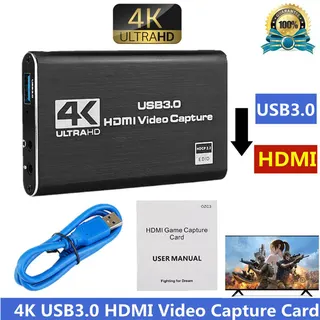

| Package Content | 1 x4K USB3.0 HDMI Audio Video Capture Card; 1 x HDMI Cable; 1xUSB 3.0 Cable; 1 x User Manual; |
| Option | Advanced |
Questions about this item
Which capture mode should I pick between 4K at 30 Hz input and 1080p at 60 Hz recording?
Choose 4K at 30 Hz passthrough when you need the source displayed on a monitor at its native resolution; switch to 1080p at 60 Hz capture for smoother gameplay recording and streaming.
What does the 1080p 60 Hz capture spec mean once the card is installed in my PC?
The device records or streams at up to 1920x1080 resolution at 60 frames per second over USB 3.0, provided your CPU and GPU meet the i5-3400 or GT630 minimums.
How does the USB 3.0 interface limit real-world throughput?
The USB 3.0 connection delivers 300 to 350 MB/s sustained throughput, which caps the maximum uncompressed video bitrate you can capture without dropping frames.
