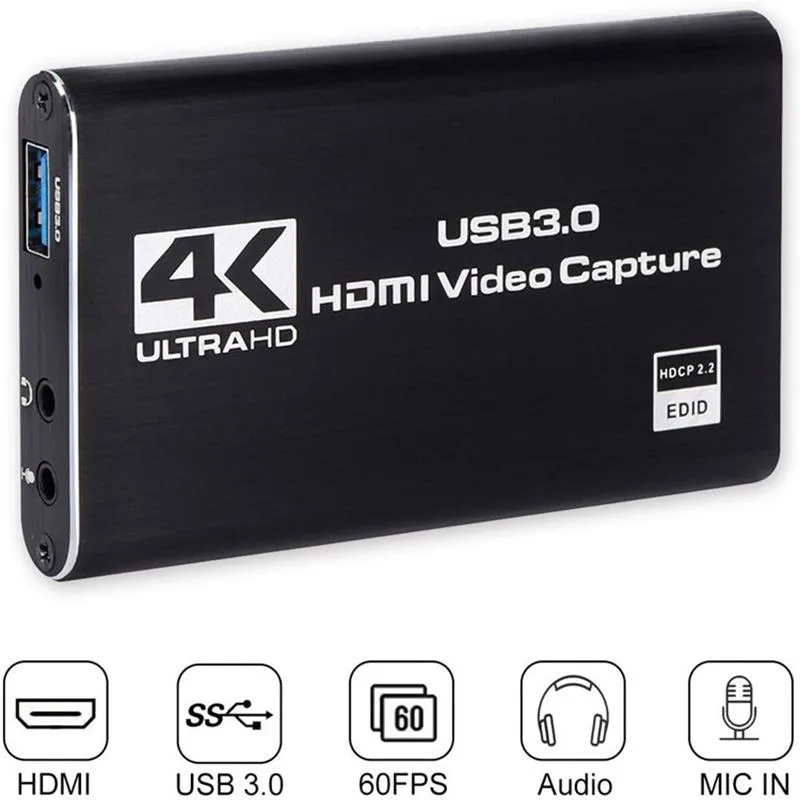

Small black aluminium capture dongle with HDMI in, HDMI out and USB 3.0 cable

ESTONE

ESTONE YCY-2353 4K HDMI USB 3.0 video capturing device

SKU CH-YAGF-ZTTX0

Captures 4K HDMI input at 30 Hz and streams 1080p at 60 fps over USB 3.0 with UVC and UAC compliance for plug-and-play use on Windows, Mac, Linux and Android

  • InterfaceUSB 3.0
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input
  • Captures 1080p at 60 fps for smooth recordings
  • HDMI loop-through passes 4K at 30 Hz to your display
  • USB 3.0 delivers 300–350 MB/s throughput without external power
  • Works with Windows, macOS, Linux and Android out of the box
  • Records 48 kHz PCM audio alongside video for clear sound

Capture Card for Streaming and Recording

The ESTONE YCY-2353 captures HDMI video up to 4K at 30 Hz input and records at 1080p 60 fps via USB 3.0. It suits streamers, educators and conference users who need a compact capture solution for cameras, consoles or PCs. No external power supply is required. ||

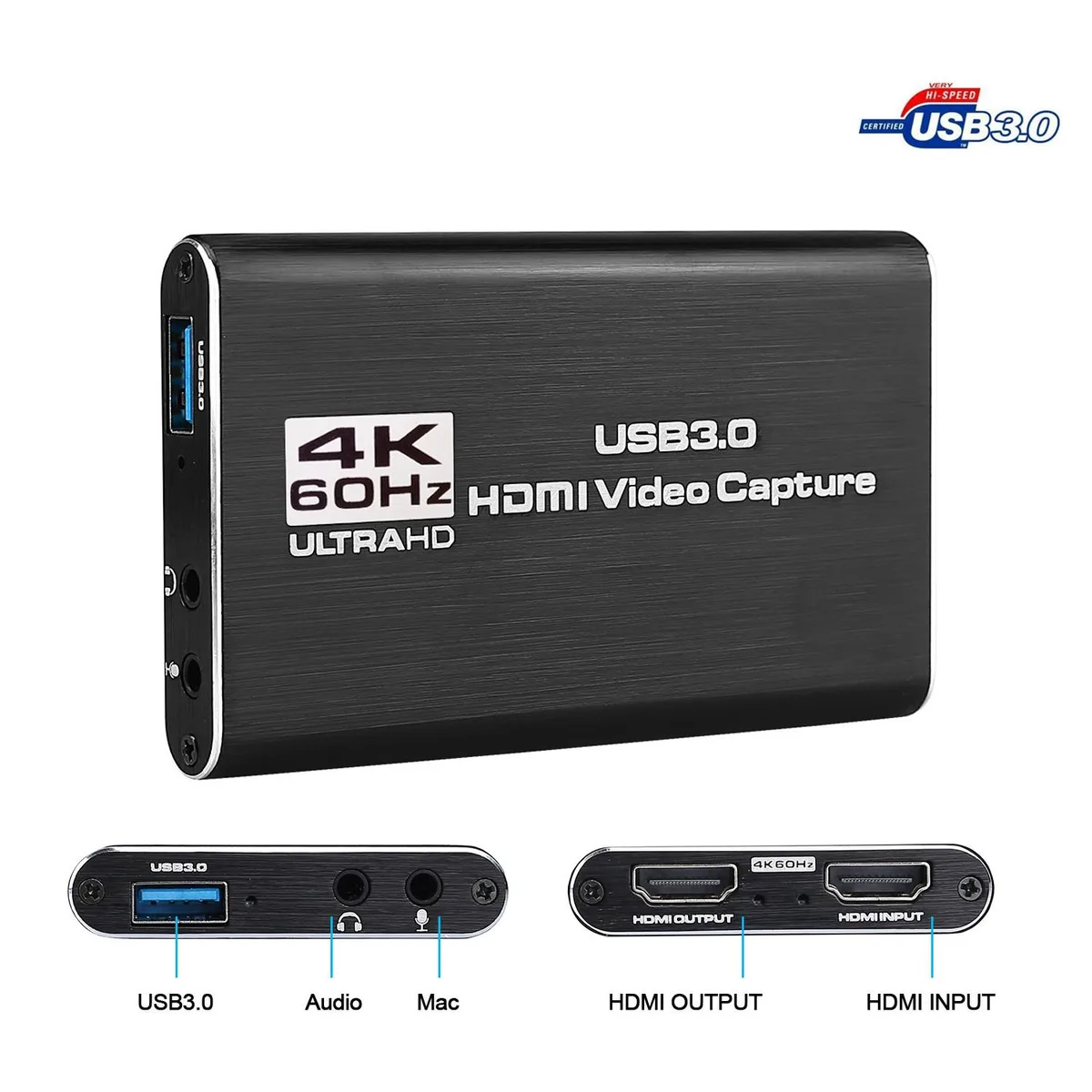

Aluminium Build with Pass-Through

An aluminium alloy shell houses one HDMI input and one HDMI output for zero-latency pass-through to a monitor or projector. A USB 3.0 port delivers 300 to 350 MB/s throughput to the host. An LED indicator shows link status, and the device draws 2.5 W or less from the bus. ||

Cable and Manual Included

The box provides a USB 3.0 cable and a user manual so the card works immediately with OBS, vMix, Wirecast, PotPlayer, VLC, QuickTime Player and other UVC/UAC software on Windows, macOS, Linux or Android. No driver disc or proprietary utility is bundled.

Highlights

  • Captures 1080p at 60 fps for smooth recordings
  • HDMI loop-through passes 4K at 30 Hz to your display
  • USB 3.0 delivers 300–350 MB/s throughput without external power
  • Works with Windows, macOS, Linux and Android out of the box
  • Records 48 kHz PCM audio alongside video for clear sound

Specifications

BrandESTONE
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
USB Port1
S-Video1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the i
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces
Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;
OptionAdvanced

Questions about this item

What does the USB 3.0 interface cap the capture throughput at?

The USB 3.0 connection delivers 300 to 350 MB/s throughput, which limits recorded video to 1080p at 60 fps even though the HDMI input can accept 4K at 30 Hz.

What physical ports and cable are required to mount this capture device?

One HDMI input, one HDMI loop-through output and one USB 3.0 port are built in; the box includes a USB 3.0 cable for the host connection.

How is the device installed and which step do users often miss?

Connect the source to the HDMI input, plug the USB 3.0 cable into the host, then select the UVC video device in OBS or other software; the step often missed is choosing the correct audio input (48 kHz PCM) in the streaming application.
