Compact aluminium KVM switch with two USB-C inputs, one DisplayPort output, three USB-A ports, and a front selector button

ESTONE

ESTONE TJ-A0126 USB-C 8K KVM Switch 2-Port DP 1.4 3xUSB 2.0

SKU CH-VF2Z-B3CA2

Share one DisplayPort monitor and three USB peripherals between two USB-C computers at up to 8K 60 Hz or 4K 144 Hz

  • TypeDisplayPort, USB
  • PC ConnectorsUSB-C cable
  • Computer Connections2 Ports
  • Monitor Connections1 Port
  • Video Resolution7680×4320
  • PC SelectionManual Switch
  • Share two USB-C computers on one DisplayPort monitor
  • 8K at 60 Hz and 4K at 144 Hz via DP 1.4

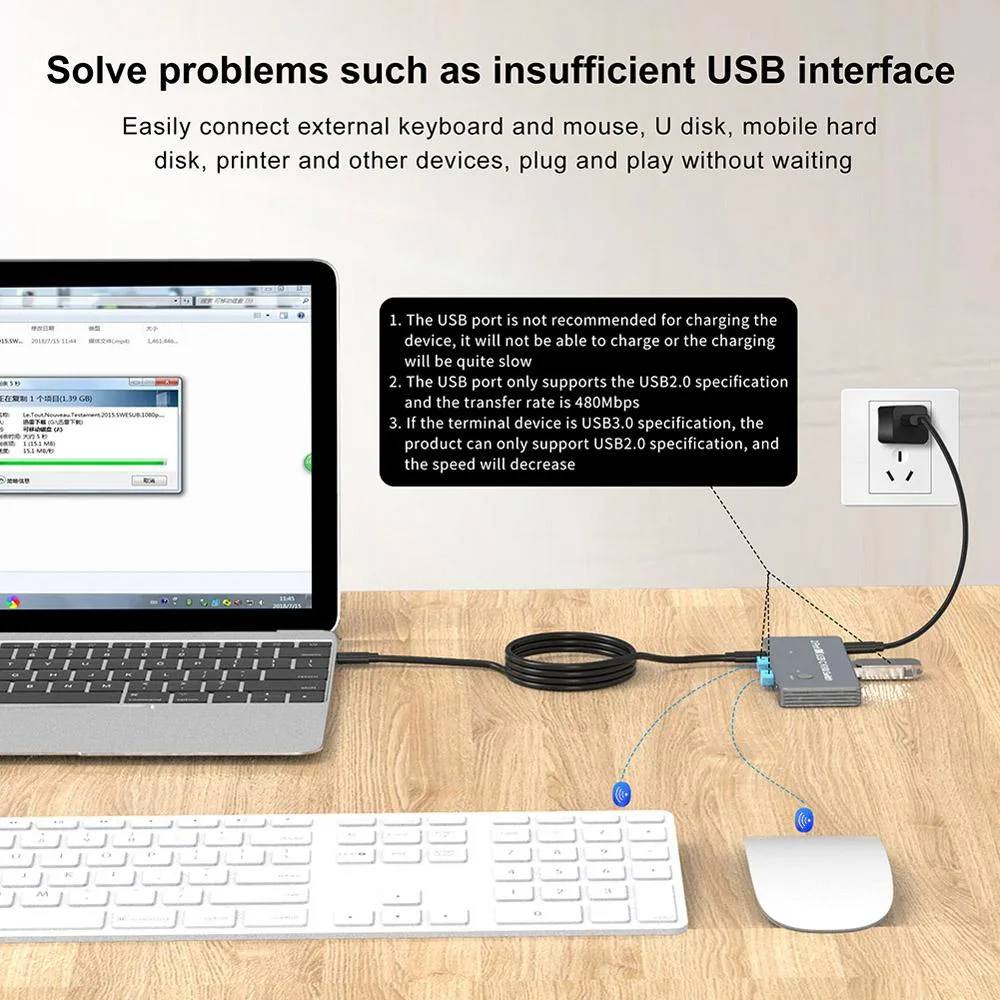

  • Three USB 2.0 ports let two PCs share keyboard, mouse and printer
  • Manual select button and 3-second auto-scan for quick switching
  • Aluminium alloy chassis with LED status indicators

Two-computer USB-C KVM for one DisplayPort monitor

The ESTONE TJ-A0126 is a 2-port KVM switch that lets two USB-C computers share a single DisplayPort 1.4 display. It supports resolutions up to 7680×4320 at 60 Hz and 4K at 144 Hz with DSC. Three USB 2.0 ports allow a mouse, keyboard and printer to stay connected while you switch systems.

Verify your hosts have USB-C video

Each computer must provide a USB-C port that carries DisplayPort Alt Mode video and USB data. The switch draws power from the included USB-A to USB-C cable, so a spare USB-A port or charger is required. Your monitor needs a DisplayPort 1.4 input and a certified 8K cable for the highest resolutions. No Thunderbolt-specific features are required.

Aluminium chassis with front push-button and LED

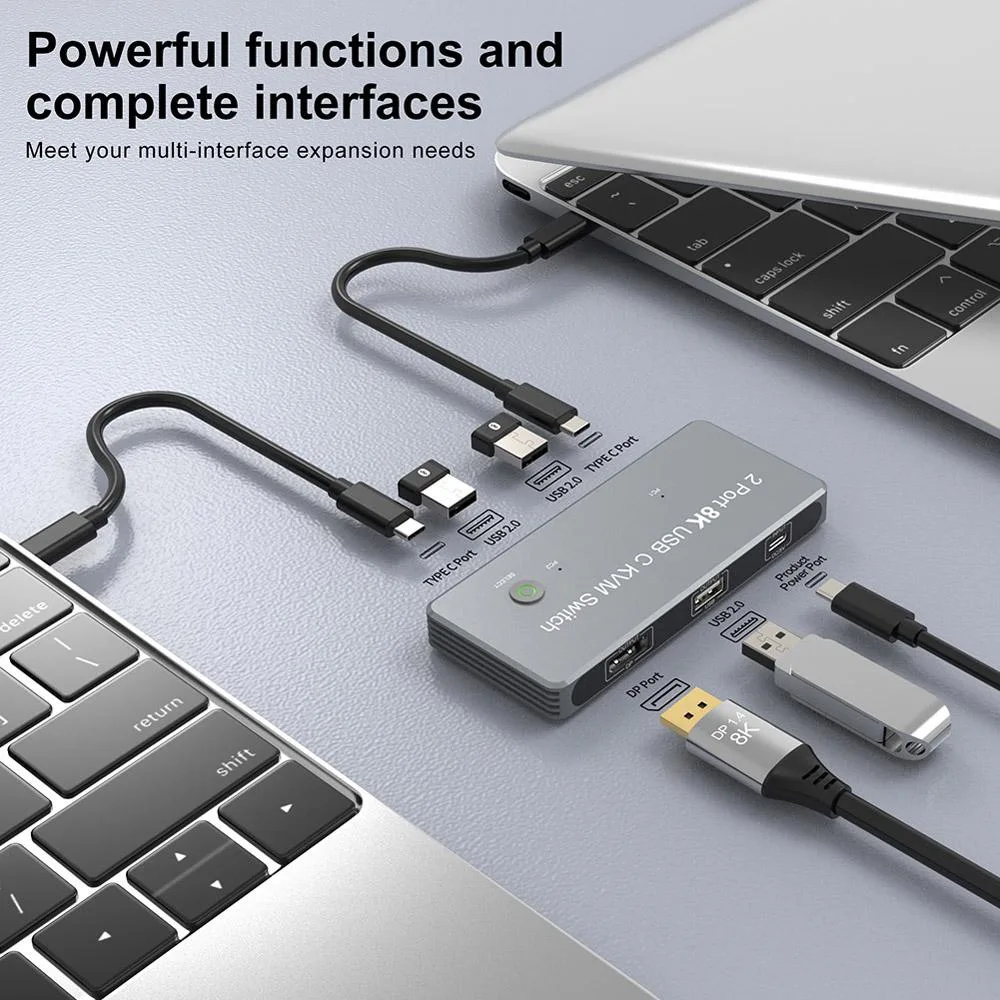

The aluminium alloy shell measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces. Two USB-C input cables are included and attach to the front alongside the select button and LED indicators. Rear-facing ports comprise one DisplayPort 1.4 output and three USB 2.0 Type-A sockets for peripherals. The fixed cables and front controls keep daily switching simple.

Highlights

  • Share two USB-C computers on one DisplayPort monitor
  • 8K at 60 Hz and 4K at 144 Hz via DP 1.4
  • Three USB 2.0 ports let two PCs share keyboard, mouse and printer
  • Manual select button and 3-second auto-scan for quick switching
  • Aluminium alloy chassis with LED status indicators

Specifications

BrandESTONE
SeriesTJ-A0126
ModelTJ-A0126
TypeDisplayPort, USB
PC ConnectorsUSB-C cable
Computer Connections2 Ports
Monitor Connections1 Port
Video Resolution7680×4320
PC SelectionManual Switch
AutoScan Interval3 seconds
BandwidthDP 1.4: 32.4Gbps/USB 2.0: 480Mbps
LED IndicatorsYes
Application2PC Share 1 Monitor and One Keyboard Mouse,KVM Switch Displayport,Support 8K@60Hz 4K@144Hz 3D 1080P
Features2xUSB-C 8K KVM Switch with one DisplayPort 1.4 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 Port to your DisplayPort Monitors via your own displayport 8k Standard Cable,you can press the "select"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working
With 3xUSB2.0 Output Port,two Computers share one set,you can connect 3xUSB2.0 Output to your USB Mo
Dimensions5.43 x 5.35 x 1.46 inches
Weight9.52 Ounces
Package Contents1 x DP KVM Switch, 2 x USB-C Cable, 1 x USB-A to USB-C power cable

Questions about this item

What cables and accessories come in the box with the ESTONE TJ-A0126 KVM switch?

The package includes the KVM switch, two USB-C cables for computer connections, and one USB-A to USB-C power cable. You supply your own DisplayPort cable for the monitor.

How do I decide between the 8K 60 Hz and 4K 144 Hz modes on this switch?

Choose 8K at 60 Hz for maximum desktop resolution, or 4K at 144 Hz with DSC for high-refresh gaming. Both use the same DP 1.4 link; pick the one your monitor and GPU support.

What does the 32.4 Gbps DisplayPort 1.4 bandwidth mean for my actual display?

It carries 8K at 60 Hz or 4K at 144 Hz with DSC compression, plus HDR and 10-bit or 12-bit colour. The USB 2.0 ports run at 480 Mbps for keyboard, mouse or printer sharing.
