Compact silver aluminium box with front button and multiple ports

ESTONE

ESTONE TJ-A0126 2-Port USB-C 8K KVM Switch DP 1.4

SKU CH-4D6H-T254E

Two computers share one DisplayPort 1.4 monitor at 8K 60 Hz and USB 2.0 peripherals via manual switching

  • TypeDisplayPort, USB
  • PC ConnectorsUSB-C cable
  • Computer Connections2 Ports
  • Monitor Connections1 Port
  • Video Resolution7680×4320
  • PC SelectionManual Switch
  • Share two USB-C computers on one DisplayPort 1.4 monitor at 8K 60 Hz or 4K 144 Hz
  • Switch PCs instantly with a front-panel button or 3-second auto-scan
  • Three USB 2.0 ports let keyboard, mouse and printer follow the active system
  • Aluminium alloy chassis dissipates heat in a compact 5.43 x 5.35 x 1.46 inch frame
  • Powered by an included USB-A to USB-C cable for reliable operation

Two-PC USB-C KVM for 8K DisplayPort

The ESTONE TJ-A0126 lets two USB-C computers share one DisplayPort 1.4 monitor and three USB 2.0 peripherals. A front-panel button switches the active host instantly. The aluminium chassis draws power from an included USB-A to USB-C cable. No software drivers are required.

8K60 and 4K144 headroom with DSC

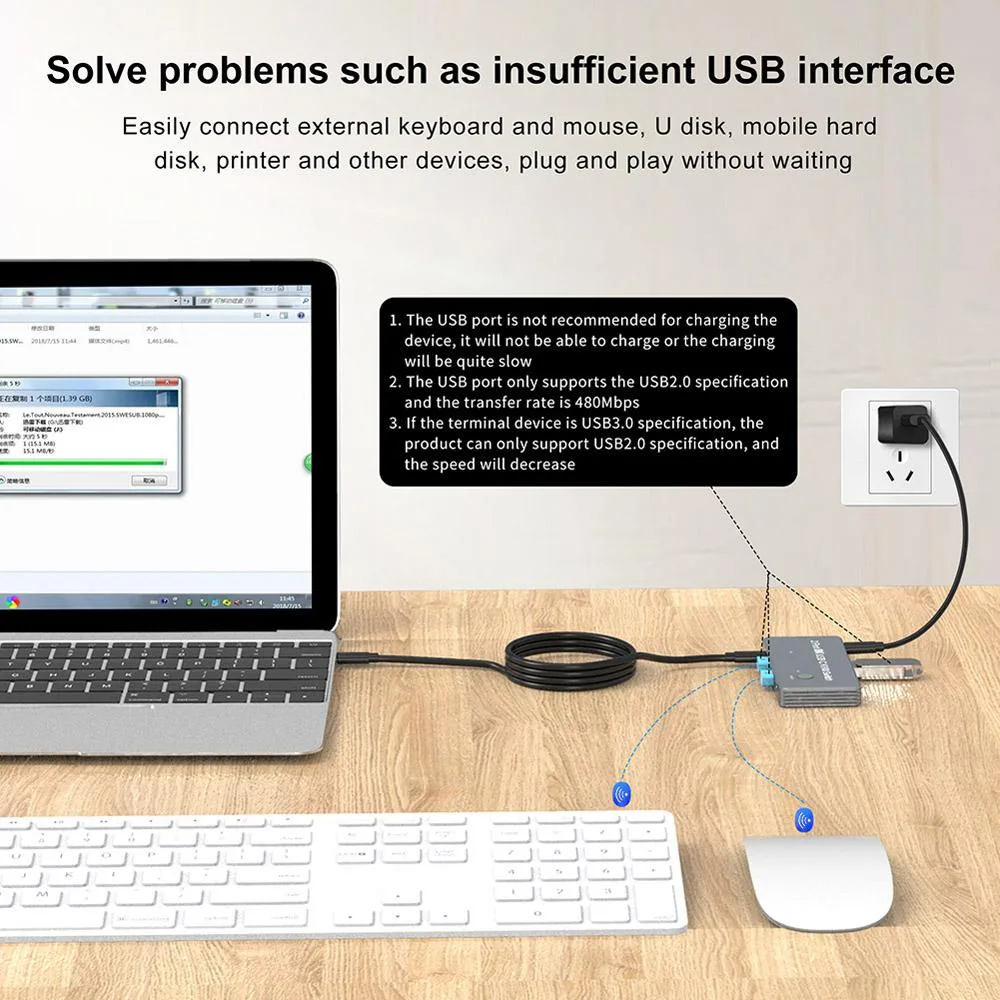

DisplayPort 1.4 bandwidth of 32.4 Gbps carries 7680×4320 at 60 Hz or 4K at 144 Hz when the source uses DSC. Lower rates such as 1080p at 165 Hz and 4K at 120 Hz run without compression. Deep colour up to 12-bit and chroma 4:4:4 are supported. USB 2.0 ports remain limited to 480 Mbps.

Aluminium shell with manual select button

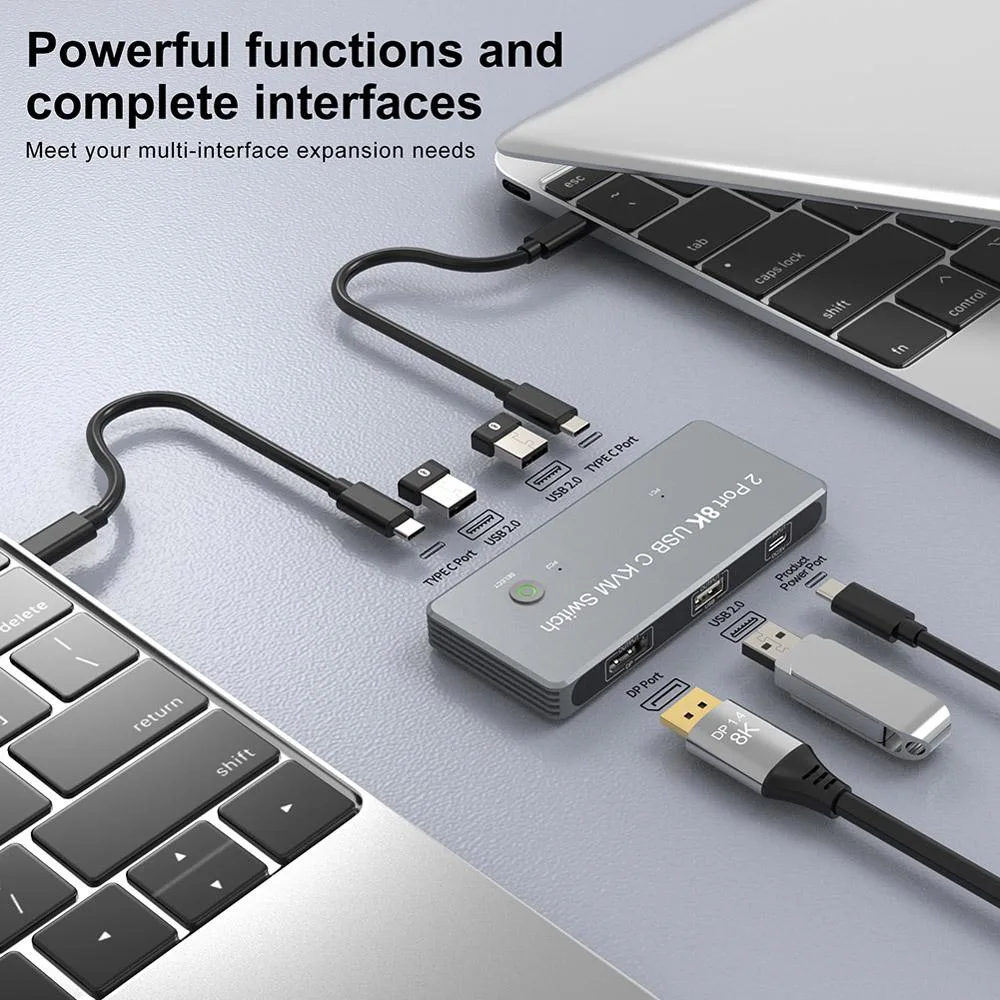

The compact metal enclosure measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces. Two captive USB-C cables connect the PCs, while a single DisplayPort output and three USB-A ports face the desk. LED indicators show the active port. The unit must stay plugged into the supplied power cable during operation.

Highlights

  • Share two USB-C computers on one DisplayPort 1.4 monitor at 8K 60 Hz or 4K 144 Hz
  • Switch PCs instantly with a front-panel button or 3-second auto-scan
  • Three USB 2.0 ports let keyboard, mouse and printer follow the active system
  • Aluminium alloy chassis dissipates heat in a compact 5.43 x 5.35 x 1.46 inch frame
  • Powered by an included USB-A to USB-C cable for reliable operation

Specifications

BrandESTONE
SeriesTJ-A0126
ModelTJ-A0126
TypeDisplayPort, USB
PC ConnectorsUSB-C cable
Computer Connections2 Ports
Monitor Connections1 Port
Video Resolution7680×4320
PC SelectionManual Switch
AutoScan Interval3 seconds
BandwidthDP 1.4: 32.4Gbps/USB 2.0: 480Mbps
LED IndicatorsYes
Application2PC Share 1 Monitor and One Keyboard Mouse,KVM Switch Displayport,Support 8K@60Hz 4K@144Hz 3D 1080P
Features2xUSB-C 8K KVM Switch with one DisplayPort 1.4 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 Port to your DisplayPort Monitors via your own displayport 8k Standard Cable,you can press the "select"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working
With 3xUSB2.0 Output Port,two Computers share one set,you can connect 3xUSB2.0 Output to your USB Mo
Dimensions5.43 x 5.35 x 1.46 inches
Weight9.52 Ounces
Package Contents1 x DP KVM Switch, 2 x USB-C Cable, 1 x USB-A to USB-C power cable

Questions about this item

Will my older DisplayPort 1.2 monitor work with the DP 1.4 output on this KVM?

Yes, the DP 1.4 port is backward compatible with DP 1.2 displays; you will be limited to the monitor's maximum resolution and refresh rate, but switching and USB sharing still function normally.

How do I confirm the switch is passing 8K at 60 Hz to my display?

The front LED indicates the active PC; verify in your OS display settings that 7680×4320 at 60 Hz is selectable and that the monitor OSD reports the same mode.

Which cables are included and what must I provide?

The box contains the KVM switch, two USB-C Gen 2 cables for the PCs, and a USB-A to USB-C power cable; you must supply your own DisplayPort 1.4 cable for the monitor.
