ESTONE
ESTONE SW245-1DP1HD 8K KVM Switch 4 Computers 2 Monitors
Share one keyboard, mouse and two monitors across four computers with 8K 60 Hz video and USB 3.0 5 Gbps peripheral ports
- TypeHDMI, DisplayPort, USB
- PC ConnectorsHDMI+DP+USB
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller

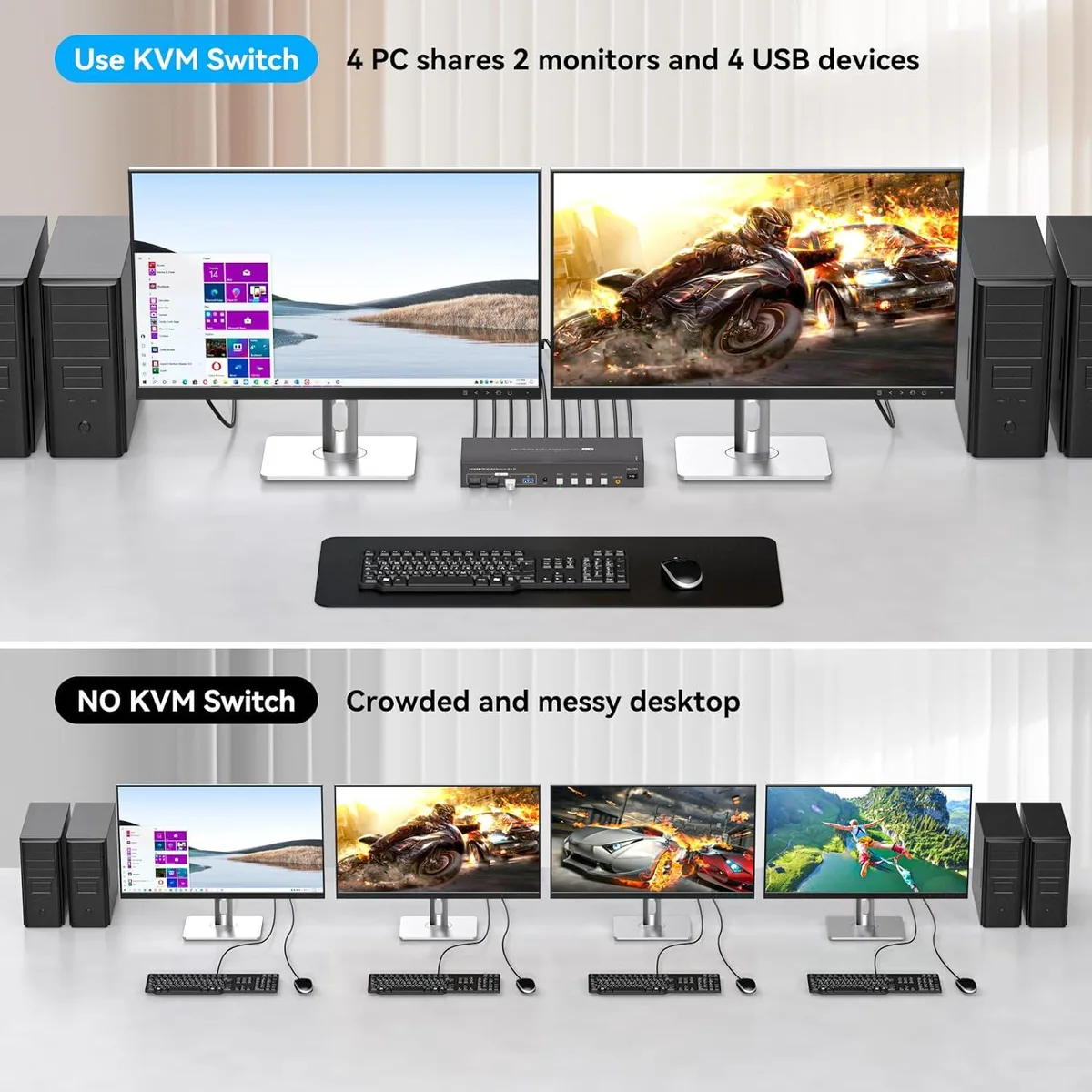

- Control four computers with one keyboard, mouse and dual monitors
- Dual HDMI and DisplayPort outputs deliver 8K at 60 Hz and 4K at 120 Hz
- Four USB 3.0 ports transfer data at up to 5 Gbps for peripherals
- Switch instantly via front buttons, desktop controller or IR remote
- Compact 5.43 x 5.35 x 1.46 inch metal chassis fits any desk
Purpose and audience
The ESTONE SW245-1DP1HD is a 4-in 2-out KVM switch that lets one keyboard, mouse and dual monitors control four computers. It suits home-office workers, developers and multi-system enthusiasts who need simultaneous access to several PCs without extra peripherals. Buyers whose computers lack dual-display outputs cannot use the extended or mirrored modes this unit provides.
Deciding specification
The switch delivers 8K at 60 Hz and 4K at 120 Hz over both HDMI 2.1 and DisplayPort 1.4 interfaces, with backward compatibility to earlier versions. If your graphics cards and monitors do not support these standards, the maximum resolution and refresh rate will be limited to what they can handle.
Thermals, noise and power
An external 12 V 1 A power adapter supplies the unit, so it adds no load to the connected computers’ USB ports. The enclosure has no fan and produces no audible noise during normal operation. Power draw stays within the adapter’s rated capacity while driving two high-resolution displays and four USB 3.0 peripherals.
Highlights
- Control four computers with one keyboard, mouse and dual monitors
- Dual HDMI and DisplayPort outputs deliver 8K at 60 Hz and 4K at 120 Hz
- Four USB 3.0 ports transfer data at up to 5 Gbps for peripherals
- Switch instantly via front buttons, desktop controller or IR remote
- Compact 5.43 x 5.35 x 1.46 inch metal chassis fits any desk
Specifications
| Brand | ESTONE |
|---|---|
| Series | SW245-1DP1HD |
| Model | SW245-1DP1HD |
| Type | HDMI, DisplayPort, USB |
| PC Connectors | HDMI+DP+USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | [HDMI DisplayPort KVM USB switch dual monitor]: KVM Switch allows control 4 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 4 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another. ? |

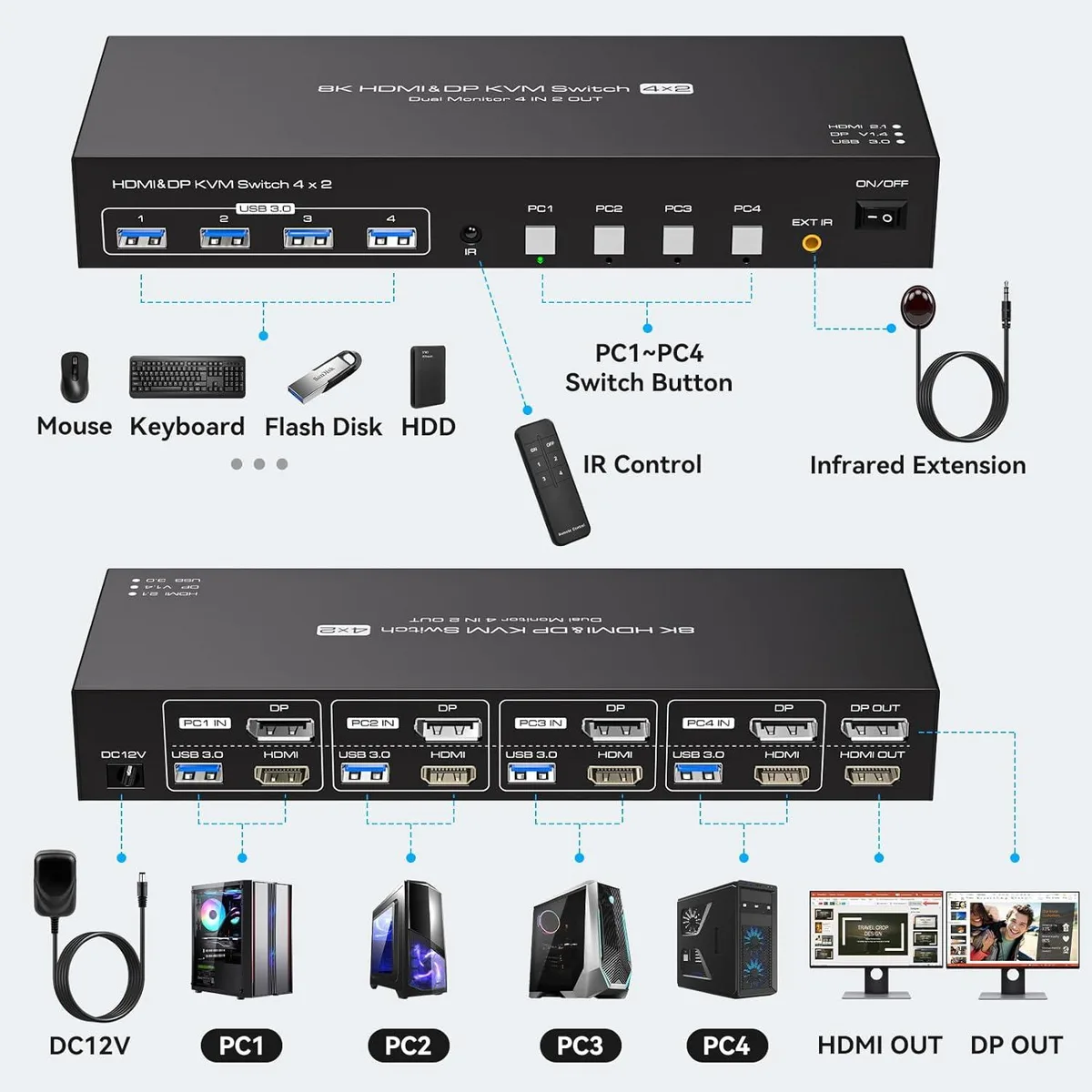

| Features | 4 In 2 Out 4K 120Hz USB 3.0 HDMI DisplayPort KVM Switch Box dual monitor for 4 PC Sharing Keyboard Mouse Printer Plug Play Video 2 Display USB Switch Splitter - Product Type: 8K HDMI DP USB 3.0 KVM Switch (4 in 2 out) - Input Port: HDMI 2.1, DisplayPort1.4, USB 3.0 data x2, USB 3.0 x 4 - Output Port: HDMI 2.1 , DisplayPort1.4 - Material: Aluminum Alloy shellanti-rust, anti-corrosion, anti-interference, fast transmission, surtace oxidation ? Features Support HDMI 2.1 DP1.4, HDCP 2.3 Resolution: Support 1080P/1080@144/165/240Hz, 2K@120/144Hz, 4K@60/120Hz,8K@60Hz resolution, adaptive sc |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | The package includes 1*4 in 2 out KVM switcher, 4*USB 3.0 A to A cables, 1*12V1A external power adapter, 1* IR cable, 1*remote control (batteries not included), and 1*user manual. |
Questions about this item
What does the 8K@60Hz rating mean when I connect this switch to my PC and monitors?
The switch passes up to 8K resolution at 60 Hz, 4K at 120 Hz, 2K at 165 Hz or 1080p at 240 Hz, provided your graphics cards and monitors also support those modes.
Which video standards do the HDMI and DisplayPort connections actually use, and what bandwidth ceiling does that set?
HDMI 2.1 and DisplayPort 1.4 are supported, both backward compatible with earlier versions, capping the link at the bandwidth those standards define.
How much desk space and cabling clearance does the unit need to sit and connect four computers and two monitors?
The chassis measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces, so it fits on a small shelf with room for the four USB-A cables, two HDMI and two DisplayPort leads plus the 12 V power adapter.
