ESTONE
ESTONE SW241-HD 4-Port HDMI 2.1 KVM Switch 8K 60Hz Wired Controller
Lets four computers share one monitor, keyboard, mouse and four USB 3.0 devices at up to 8K 60 Hz with push-button or IR remote switching
- TypeHDMI, USB
- PC ConnectorsHDMI, USB
- Computer Connections4 Port - USB 3.0 HDMI
- Monitor Connections1 Port
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Four computers share one monitor and keyboard
- 8K at 60 Hz and 4K at 120 Hz video support
- Four USB 3.0 ports for shared peripherals
- Push-button, remote and auto-scan switching modes
- Compact 5.43 by 5.35 by 1.46 inch metal chassis
Four-computer KVM for single-monitor setups

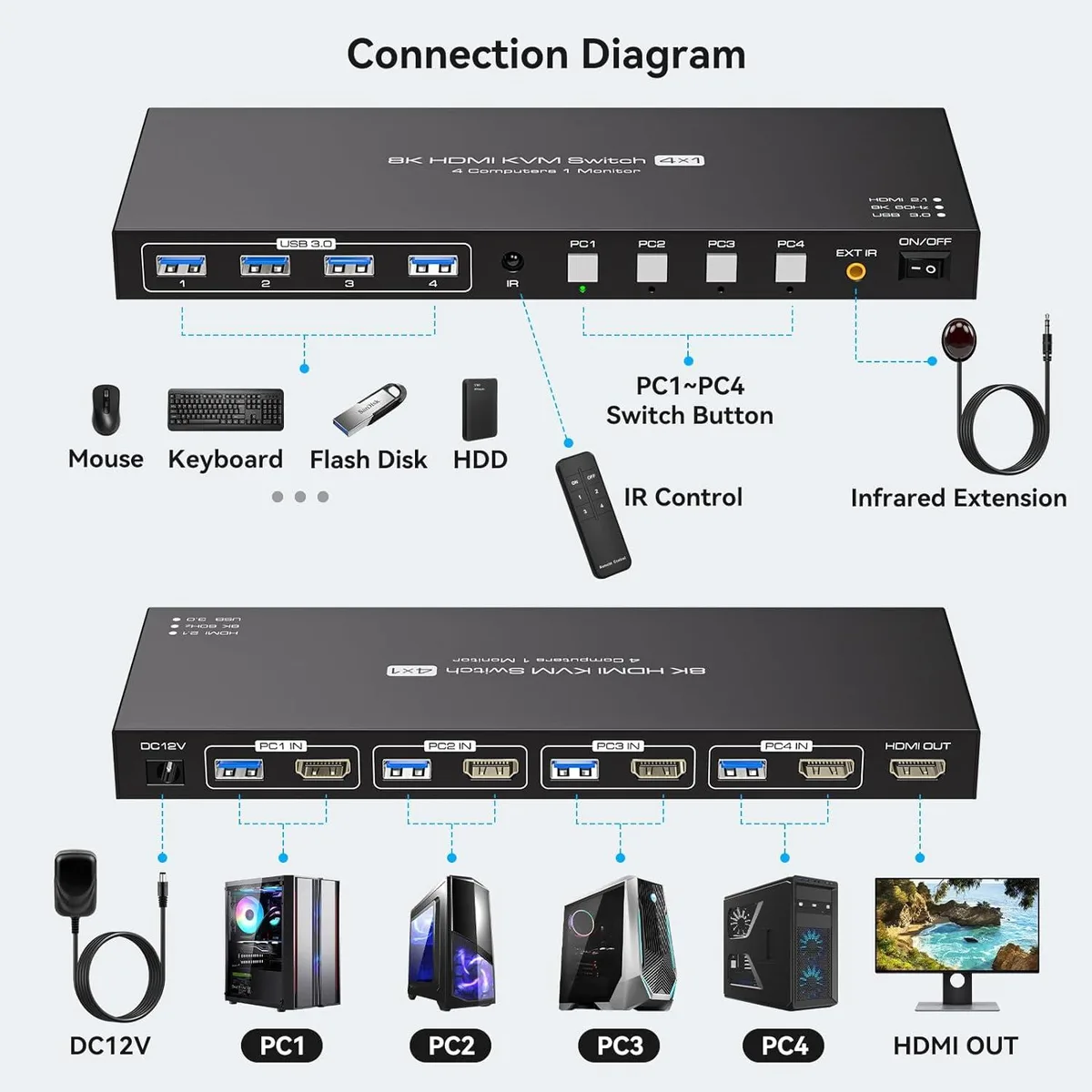

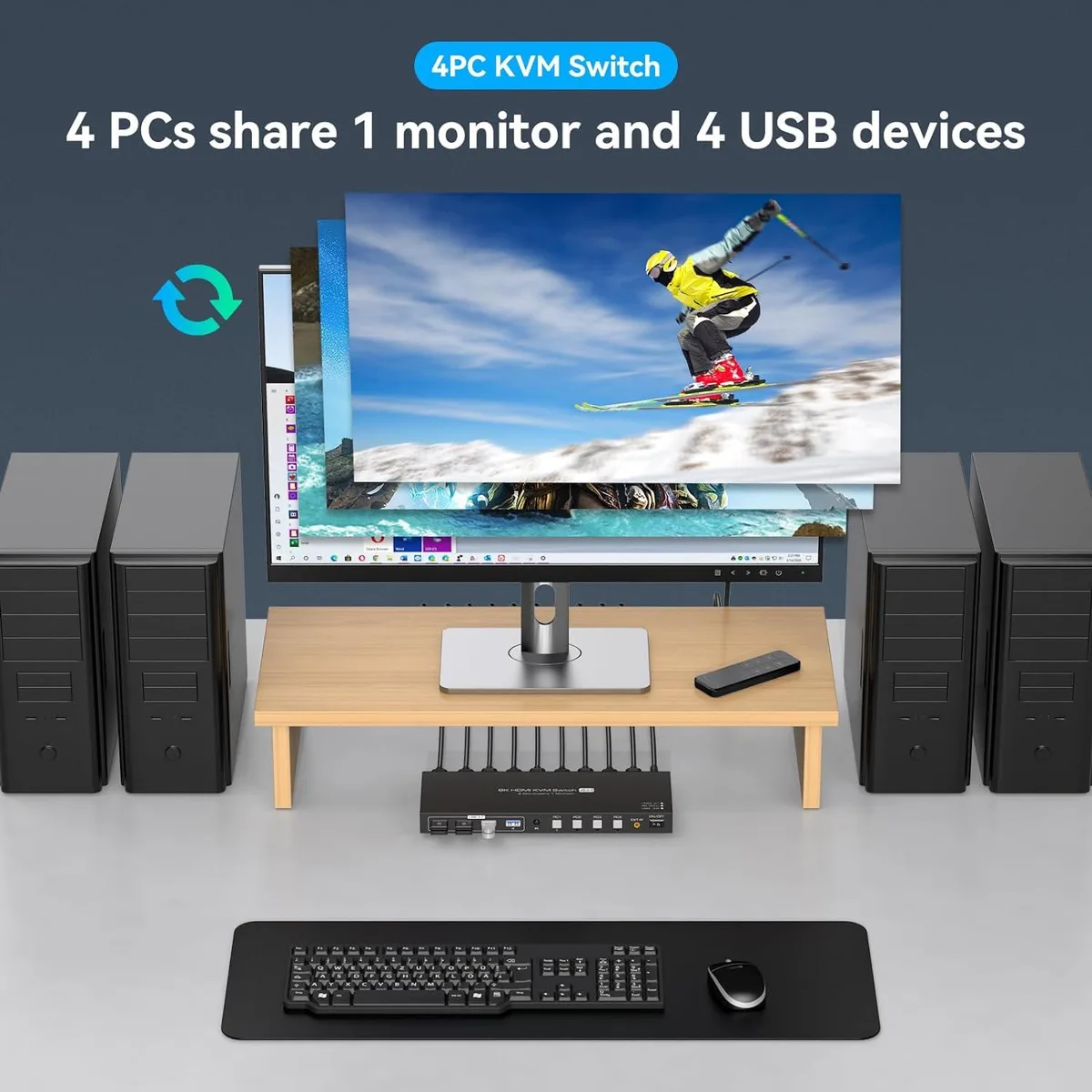

The ESTONE SW241-HD lets four computers or laptops share one monitor, a keyboard, a mouse and up to four USB 3.0 peripherals. Switching is handled by front-panel buttons, a wired desktop controller or the included IR remote. It is aimed at users who want a tidy desk without unplugging cables.
Check your graphics outputs and cables
Each computer must provide an HDMI 2.1 output to reach the highest resolutions; older HDMI versions will work but limit the refresh rate. The monitor also needs an HDMI 2.1 input for 8K at 60 Hz or 4K at 120 Hz. Certified ultra-high-speed HDMI cables are recommended for stable signal transmission.
Passive cooling with external power
The unit draws power from the supplied 12 V 1 A adapter, so it adds no load to the connected computers. There are no fans, so operation is silent. The compact metal enclosure stays cool during typical office or gaming sessions.
Highlights
- Four computers share one monitor and keyboard
- 8K at 60 Hz and 4K at 120 Hz video support
- Four USB 3.0 ports for shared peripherals
- Push-button, remote and auto-scan switching modes
- Compact 5.43 by 5.35 by 1.46 inch metal chassis
Specifications
| Brand | ESTONE |
|---|---|
| Series | SW241-HD |
| Model | SW241-HD |
| Type | HDMI, USB |
| PC Connectors | HDMI, USB |
| Computer Connections | 4 Port - USB 3.0 HDMI |
| Monitor Connections | 1 Port |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | The hdmi kvm switch 4 port allows 4 computers or laptops to share 1 monitor and 4 USB 3.0 devices. You can control all 4 computers directly with a single set of mouse and keyboard. Switching between the 4 computers is easy using the panel buttons or an external remote. It's plug-and-play, streamlining your workspace and boosting office efficiency. |
| Features | 4 in 1 out HDMI KVM Switch: HDMI KVM Switch is a HDMI switch that help 4 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. ? 4 computers/laptops share one set of keyboard, mouse and 1 monitors, and more USB 3.0 peripherals; Support maximum resolution up to 4K 120Hz HDMI monitors output support up to 8K@60Hz/4K@120Hz,2K@144Hz/1080P@240Hz for mirrored display; Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems; Advanced switching modes: push button and IR remote control;No complicated install |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | You will receive a 1*4 in 1 out KVM switcher, 4*USB 3.0 A to A cables, 1*12V1A external power supply, 1*IR cable, 1*remote control (excluding battery), and 1*user manual. |
Questions about this item
Does the ESTONE SW241-HD include all cables needed to connect four computers?
The package provides four USB 3.0 A-to-A cables and a 12 V 1 A power adapter. HDMI cables for the four computer inputs and the single monitor output are not included.
Which video mode should I select for a 4K 120 Hz gaming monitor?
Choose the 4K@120Hz mode; the switch supports 8K@60Hz, 4K@120Hz, 2K@144Hz and 1080P@240Hz, so 4K 120 Hz is within the supported range.
Will the 8K 60 Hz rating work automatically with my current graphics card?
The 8K@60Hz capability requires both the graphics card and the monitor to support that resolution and an HDMI 2.1 cable; otherwise the switch falls back to the highest common mode.
