ESTONE
ESTONE SW240-HD 4-port HDMI 2.0 KVM switch 4K 60Hz
A 4-port HDMI 2.0 KVM switch lets four computers share one 4K 60Hz monitor, four USB 3.0 peripherals and a single keyboard and mouse, switched by push button or IR remote
- TypeHDMI, USB
- PC ConnectorsHDMI, USB
- Computer Connections4 Port - USB 3.0 HDMI
- Monitor Connections1 Port
- Video Resolution4K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Controls four computers with one keyboard, mouse and monitor
- Switches via front push-buttons or included IR remote
- Delivers 4K at 60 Hz and 2K at 120 Hz over HDMI 2.0
- Four USB 3.0 ports share peripherals at up to 5 Gbps
- Works driver-free with Windows, Linux, macOS and more
Four-computer HDMI KVM switch
The ESTONE SW240-HD lets four computers or laptops share a single monitor, keyboard, mouse and up to four USB 3.0 peripherals. It is suited to professionals, gamers and home-office users who need to control multiple systems from one desk without unplugging cables.
HDMI 2.0 bandwidth limits
Video output reaches 4K at 60 Hz or 2K at 120 Hz over the HDMI 2.0 link, so higher refresh rates at 4K are not possible. USB 3.0 ports run at 5 Gbps, which caps the speed of attached storage or other high-throughput devices. The unit switches only by push button or IR remote; there is no hot-key or software trigger.

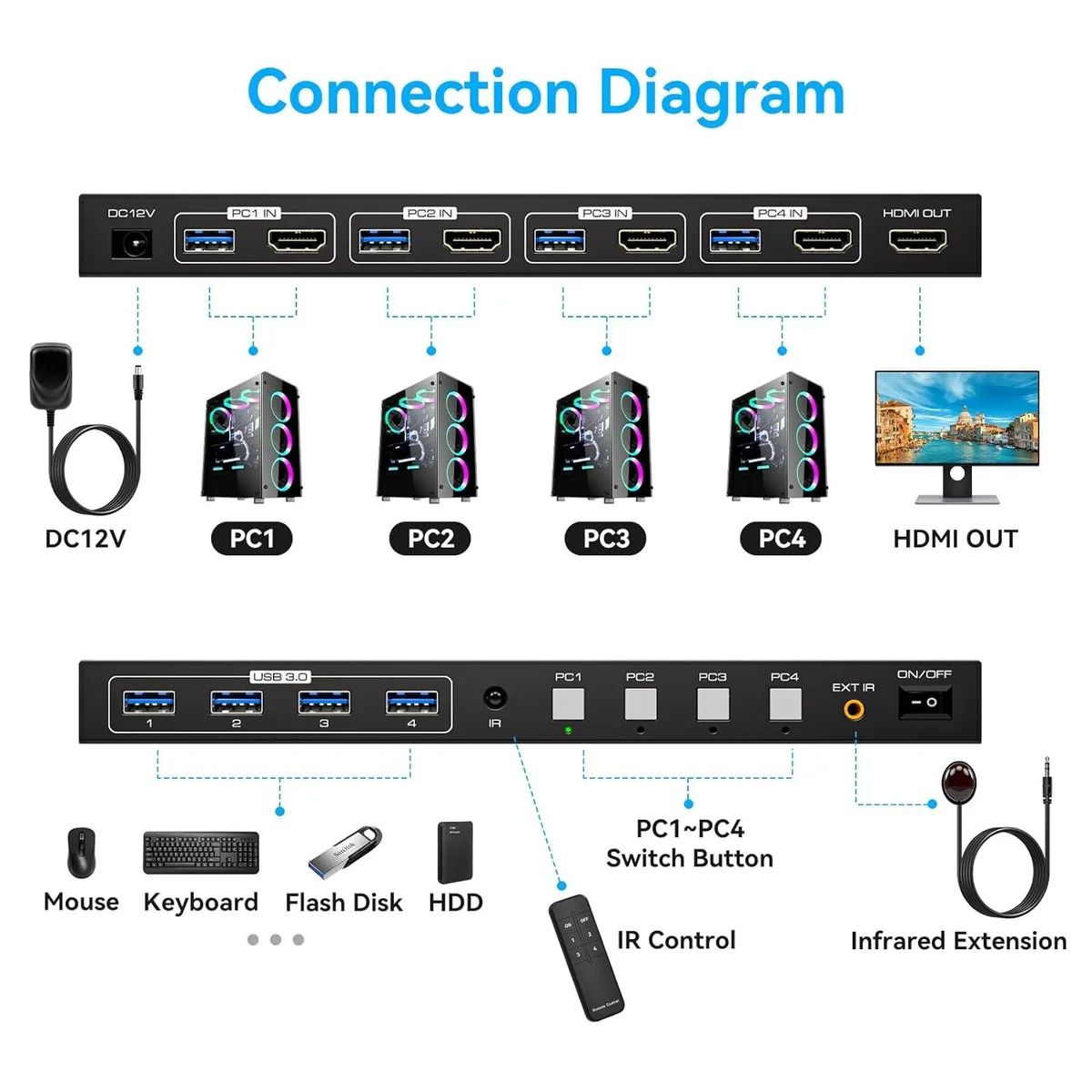

Rear-facing ports and external power
All HDMI and USB connectors face the rear, keeping the desktop clear of cable clutter. A 12 V 1 A external power adapter is required for stable operation with four connected systems. The switch includes four USB 3.0 A-to-A cables, an IR receiver cable, a remote control (battery not supplied) and a user manual.
Highlights
- Controls four computers with one keyboard, mouse and monitor
- Switches via front push-buttons or included IR remote
- Delivers 4K at 60 Hz and 2K at 120 Hz over HDMI 2.0
- Four USB 3.0 ports share peripherals at up to 5 Gbps
- Works driver-free with Windows, Linux, macOS and more
Specifications
| Brand | ESTONE |
|---|---|
| Series | SW240-HD |
| Model | SW240-HD |
| Type | HDMI, USB |
| PC Connectors | HDMI, USB |
| Computer Connections | 4 Port - USB 3.0 HDMI |
| Monitor Connections | 1 Port |
| Video Resolution | 4K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | The hdmi kvm switch 4 port allows 4 computers or laptops to share 1 monitor and 4 USB 3.0 devices. You can control all 4 computers directly with a single set of mouse and keyboard. Switching between the 4 computers is easy using the panel buttons or an external remote. It's plug-and-play, streamlining your workspace and boosting office efficiency. |
| Features | 4 in 1 out HDMI KVM Switch: 4X1 HDMI KVM Switch is a HDMI switch that help 4 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. ? 4 computers/laptops share one set of keyboard, mouse and 1 monitors, and more USB 3.0 peripherals; Support maximum resolution up to 4K 60Hz HDMI monitors output support up to 4K@60Hz/2K@120Hz for mirrored display; Compatible with Windows 11/10/8/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems; Advanced switching modes: push button and IR remote control;No complicated installation is require |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | You will receive a 1*4 in 1 out KVM switcher, 4*USB 3.0 A to A cables, 1*12V1A external power supply, 1*IR cable, 1*remote control (excluding battery), and 1*user manual. |
Questions about this item
Which configuration of the ESTONE SW240-HD should I pick for four computers and one monitor?
The switch is a fixed 4-port HDMI 2.0 KVM with a single monitor output and four USB 3.0 ports; there are no alternative versions or capacities to choose from.
What does the 4K 60Hz rating mean when I connect this switch to my display?
The HDMI 2.0 link supports a maximum resolution of 4K at 60 Hz, so a compatible monitor will show up to that resolution and refresh rate.
How does the HDMI 2.0 interface limit the video signal in practice?
HDMI 2.0 caps the link at 4K 60 Hz and 2K 120 Hz, so higher refresh rates at 4K or resolutions above 4K are not possible through this switch.
