ESTONE

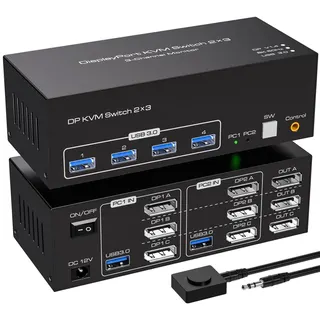

ESTONE SW233-3DP 3-Port DisplayPort KVM Switch 8K 60Hz 2 PC 3 Monitors 4 USB 3.0
Lets two computers share three DisplayPort monitors at up to 8K 60 Hz plus four USB 3.0 ports, switched by button or wired remote
- TypeDisplayPort, USB
- PC ConnectorsDisplayport and USB
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Control two computers with one keyboard and mouse across three monitors
- Triple DisplayPort output up to 8K at 60 Hz for sharp detail
- Switch instantly via front button or wired remote controller
- Four USB 3.0 ports at 5 Gbps share printer, scanner and more
- Rear-facing ports keep cables hidden for a clean desk
Triple-monitor KVM for dual computers

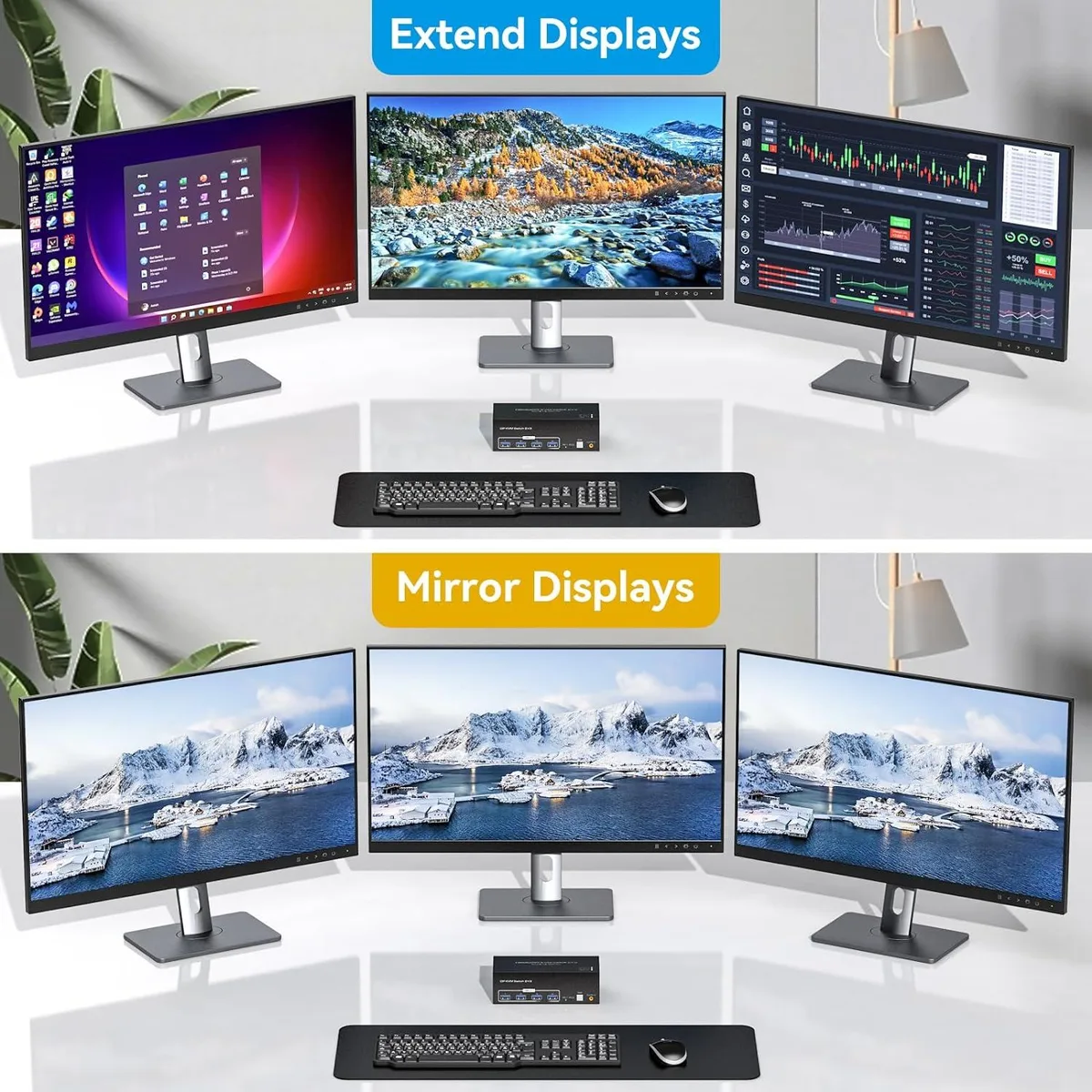

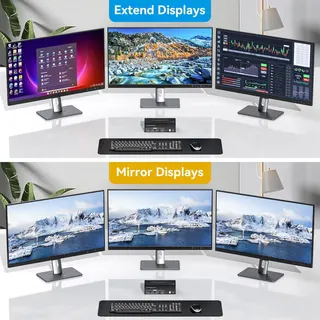

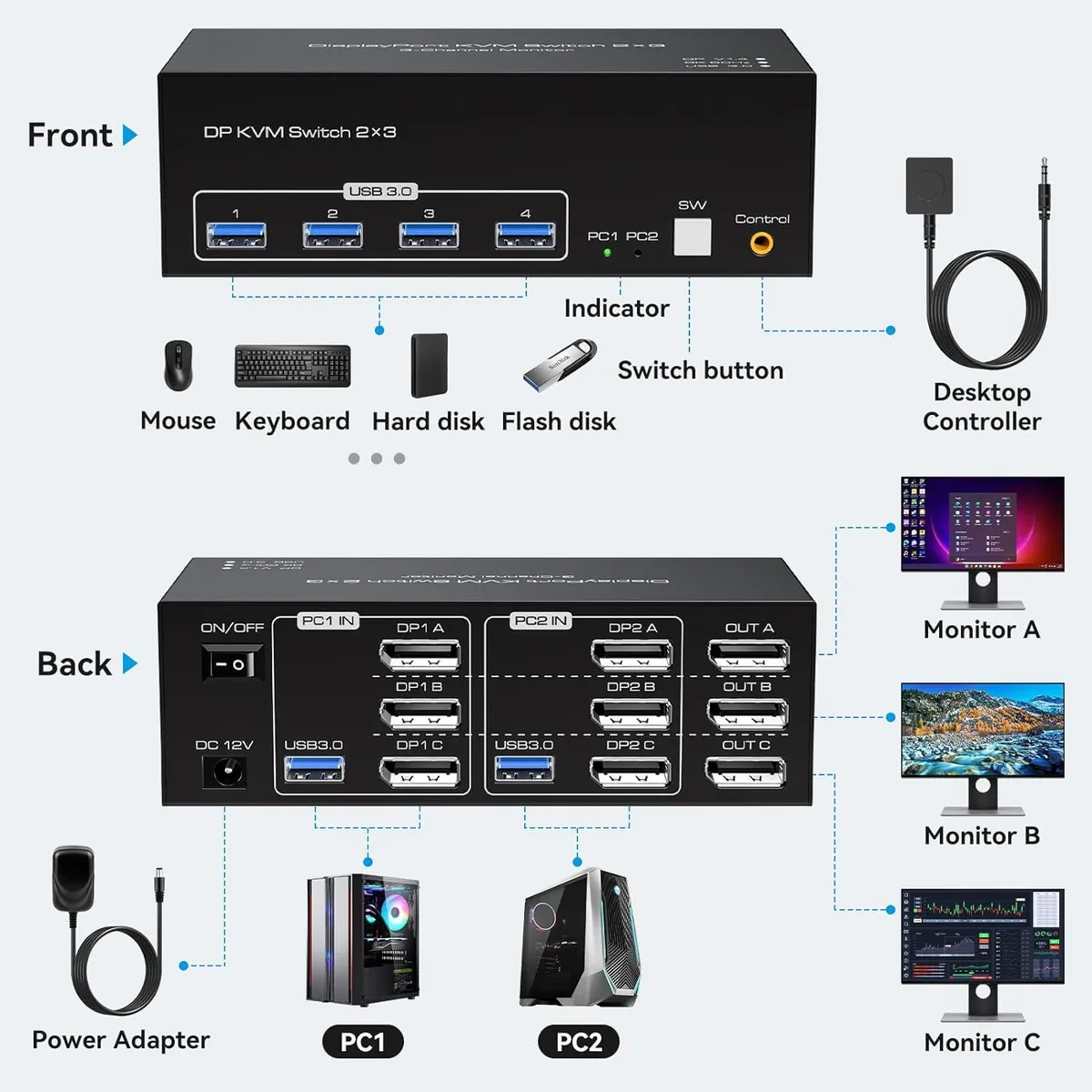

The ESTONE SW233-3DP connects two desktops or laptops to three DisplayPort monitors and four USB 3.0 peripherals. One keyboard and mouse set controls both systems with extended or mirrored display modes. Each source must support three-screen output and extended desktop functionality. The switch suits workstations that need simultaneous multi-monitor access across two hosts.
8K 60 Hz sustained video with 5 Gbps USB
Video bandwidth handles 8K at 60 Hz, 4K at 120 Hz and 4K at 144 Hz without compression artefacts during long sessions. USB 3.0 ports maintain 5 Gbps throughput for printers, scanners and storage while switching. Front-panel buttons and the wired remote both change focus instantly. LED indicators confirm the active channel at a glance.
Verify triple-display support and cable reach
Confirm each computer’s GPU can drive three independent DisplayPort streams at the target resolution. The unit requires its included power adapter and rear-facing ports, so allow clearance behind the desk. Two USB 3.0 host cables and the wired remote are supplied; additional DisplayPort cables are not. Buyers needing more than two connected computers or non-DisplayPort video inputs should consider a different topology.
Highlights
- Control two computers with one keyboard and mouse across three monitors
- Triple DisplayPort output up to 8K at 60 Hz for sharp detail
- Switch instantly via front button or wired remote controller
- Four USB 3.0 ports at 5 Gbps share printer, scanner and more
- Rear-facing ports keep cables hidden for a clean desk
Specifications
| Brand | ESTONE |
|---|---|
| Series | SW233-3DP |
| Model | SW233-3DP |
| Type | DisplayPort, USB |
| PC Connectors | Displayport and USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | DP KVM Switch 3 Monitors 2 Computers: This DisplayPort KVM Switch 2 port connects 2 desktops or laptops to share 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays. To expand and copy the display, each laptop/PC must support 3 or more screens and must support extended displays. 8K DisplayPort KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 devices. It is possible to control two computers and three monitors directly with one set of keyboard and mouse. Three monitors can suppo |
| Features | 2 computers/laptops share one set of keyboard, mouse, and 3 Displayport monitors Triple monitors output support up to 8K@60Hz for extended and mirror display, support DP 1.4V standards. 2 Switching modes: Button switch and wired remote. With extra 4 x 5Gbps USB 3.0 ports . Cross-support most major OS including Windows, Linux, Mac, and more. The ports that need to plug in Displayport/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space. |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x USB 3.0 3x3 DisplayPort Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
Does the ESTONE SW233-3DP generate noticeable heat or fan noise when switching between two computers all day?
The unit has no fan and draws little power, so it runs silently and stays cool during continuous operation.
What cables must I already own to connect two PCs and three monitors to this KVM?
You need three DisplayPort cables for the monitors and two USB 3.0 cables for the computers; the box includes two USB 3.0 cables and a power adapter.
Will my older 4K 60 Hz monitors work with the SW233-3DP alongside a new 8K display?
Yes, the switch is backward compatible with 4K 60 Hz, 1080p and 720p signals, so mixed-resolution setups function normally.
