ESTONE

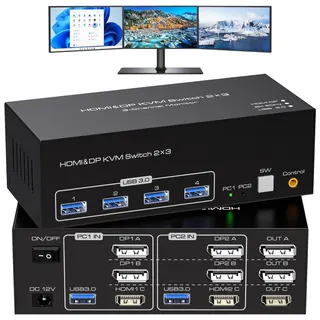

ESTONE SW232-2DP1HD KVM Switch 2DP+HDMI 8K@60Hz 3 Monitors 2 Computers 4 USB 3.0
Connects two computers to three monitors and four USB 3.0 ports with 8K@60Hz video and push-button or desktop switching
- TypeDisplayport,HDMI and USB
- PC Connectors2Displayport, HDMI and USB
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Share three monitors between two computers using one keyboard and mouse
- Switch instantly with push buttons or the wired desktop controller
- Supports 8K at 60 Hz and 4K at 120 Hz on DisplayPort 1.4 and HDMI 2.1
- Four USB 3.0 ports share peripherals at up to 5 Gbps per port

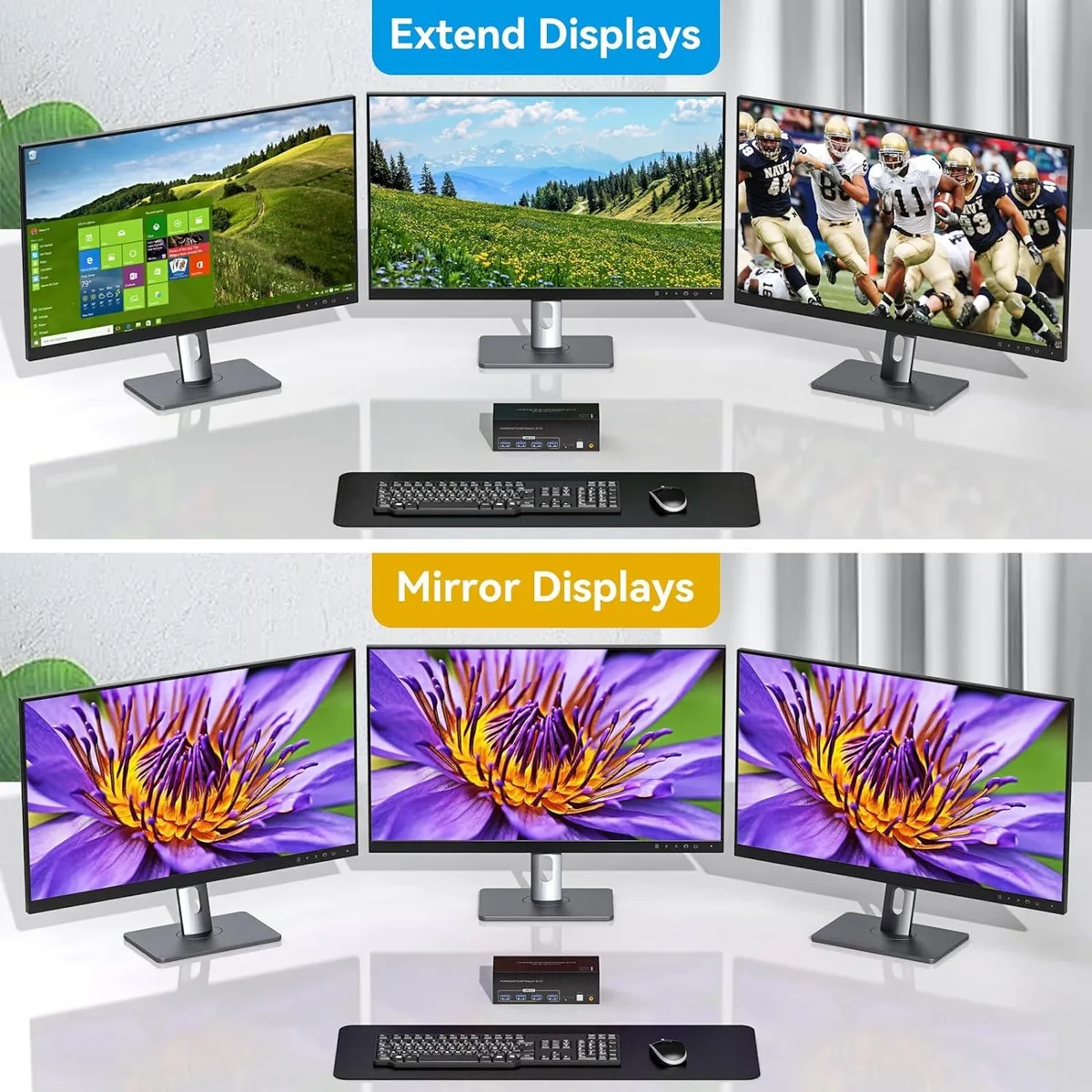

- Choose copy mode for identical screens or extended mode for three different desktops
Triple-monitor KVM for two computers

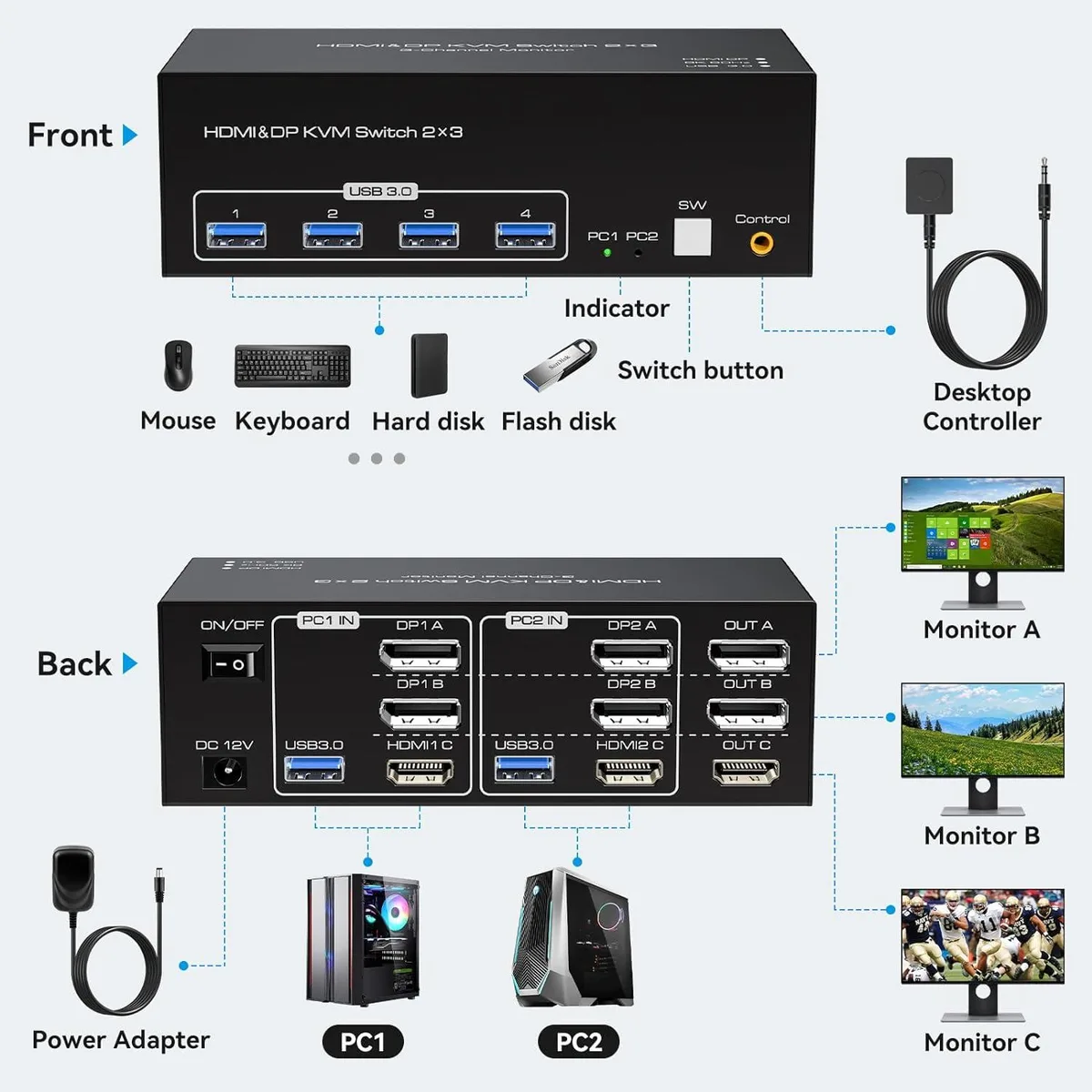

The ESTONE SW232-2DP1HD lets two desktops or laptops share three displays and four USB 3.0 peripherals from a single keyboard and mouse set. It accepts two DisplayPort and one HDMI input per computer and mirrors or extends the desktop across all three screens. Buyers whose systems lack the required video outputs cannot use the extended or copy modes.
Passive switching with LED status
The unit draws power from the included adapter and uses push buttons or the wired desktop controller to change the active computer. An auto-scan mode cycles every 30 seconds while LED indicators show the selected port. No fan or active cooling is present, so operation stays silent in normal office or studio environments.
Desktop footprint and cable requirements
The switch measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces, fitting on a desk beside the monitors. Each computer must provide two DisplayPort 1.4 and one HDMI 2.1 connection plus a USB 3.0 link for the hub. Four USB 3.0 ports free up peripheral cables that would otherwise plug directly into each host.
Highlights
- Share three monitors between two computers using one keyboard and mouse
- Switch instantly with push buttons or the wired desktop controller
- Supports 8K at 60 Hz and 4K at 120 Hz on DisplayPort 1.4 and HDMI 2.1
- Four USB 3.0 ports share peripherals at up to 5 Gbps per port
- Choose copy mode for identical screens or extended mode for three different desktops
Specifications
| Brand | ESTONE |
|---|---|
| Series | SW232-2DP1HD |
| Model | SW232-2DP1HD |
| Type | Displayport,HDMI and USB |
| PC Connectors | 2Displayport, HDMI and USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 2DP+HDMI KVM Switch 3 Monitors 2 Computers: This DisplayPort HDMI KVM Switch 2 port connects 2 desktops or laptops to share 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays. To expand and copy the display, each laptop/PC must support 3 or more screens and must support extended displays. 8K DisplayPort HDMI KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 devices. It is possible to control two computers and three monitors directly with one set of keyboard and mouse. Three mo |
| Features | 2 computers/laptops share one set of keyboard, mouse, and 2 Displayport +HDMI monitors Triple monitors output support up to 8K@60Hz for extended and mirror display, support DP 1.4V / HDMI2.1 standards. 2 Switching modes: Button switch and wired remote. With extra 4 x 5Gbps USB 3.0 ports . Cross-support most major OS including Windows, Linux, Mac, and more. The ports that need to plug in Displayport/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space. |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x USB 3.0 HDMI + 2 DisplayPort Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
How do I connect both computers to the SW232-2DP1HD so each gets 8K@60Hz across three monitors?
Connect each computer to the switch using two DisplayPort 1.4 cables and one HDMI 2.1 cable, then attach three monitors to the output side. Verify both source systems have two DP 1.4 ports and one HDMI 2.1 port; without them the 8K 60 Hz signal cannot be delivered.
What upkeep will the USB 3.0 hub and video ports need over time?
Keep the four USB 3.0 ports and three video outputs free of dust with occasional compressed air. The 5 Gbps USB links and DP 1.4 / HDMI 2.1 interfaces are solid-state; no firmware updates or consumable parts are required.
At what point does the AutoScan feature interrupt a work session?
AutoScan switches the active computer every 3 seconds if enabled. Disable it with the desktop controller or front push buttons to prevent unwanted changes during sustained use.
