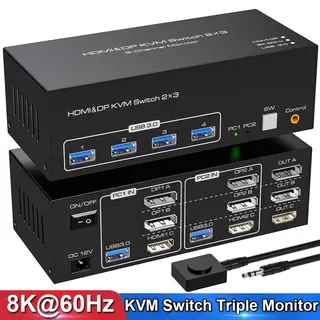

Compact black KVM switch with front push buttons and rear HDMI plus two DisplayPort connectors

ESTONE

ESTONE SW232-2DP1HD KVM switch 2 computers 3 monitors 8K 60Hz 4K 120Hz 2 DP HDMI 4 USB 3.0

SKU CH-4FH8-TA3HB

Lets two computers share three monitors and four USB 3.0 ports with support up to 8K 60Hz and 4K 120Hz

  • TypeDisplayport,HDMI and USB
  • PC Connectors2Displayport, HDMI and USB
  • Computer Connections3 Ports
  • Monitor Connections3 Ports
  • Video Resolution8K 60Hz
  • PC SelectionPush Buttons/Desktop Controller

Monitor 3 Monitor

Interface 2DispalyPort + HDMI

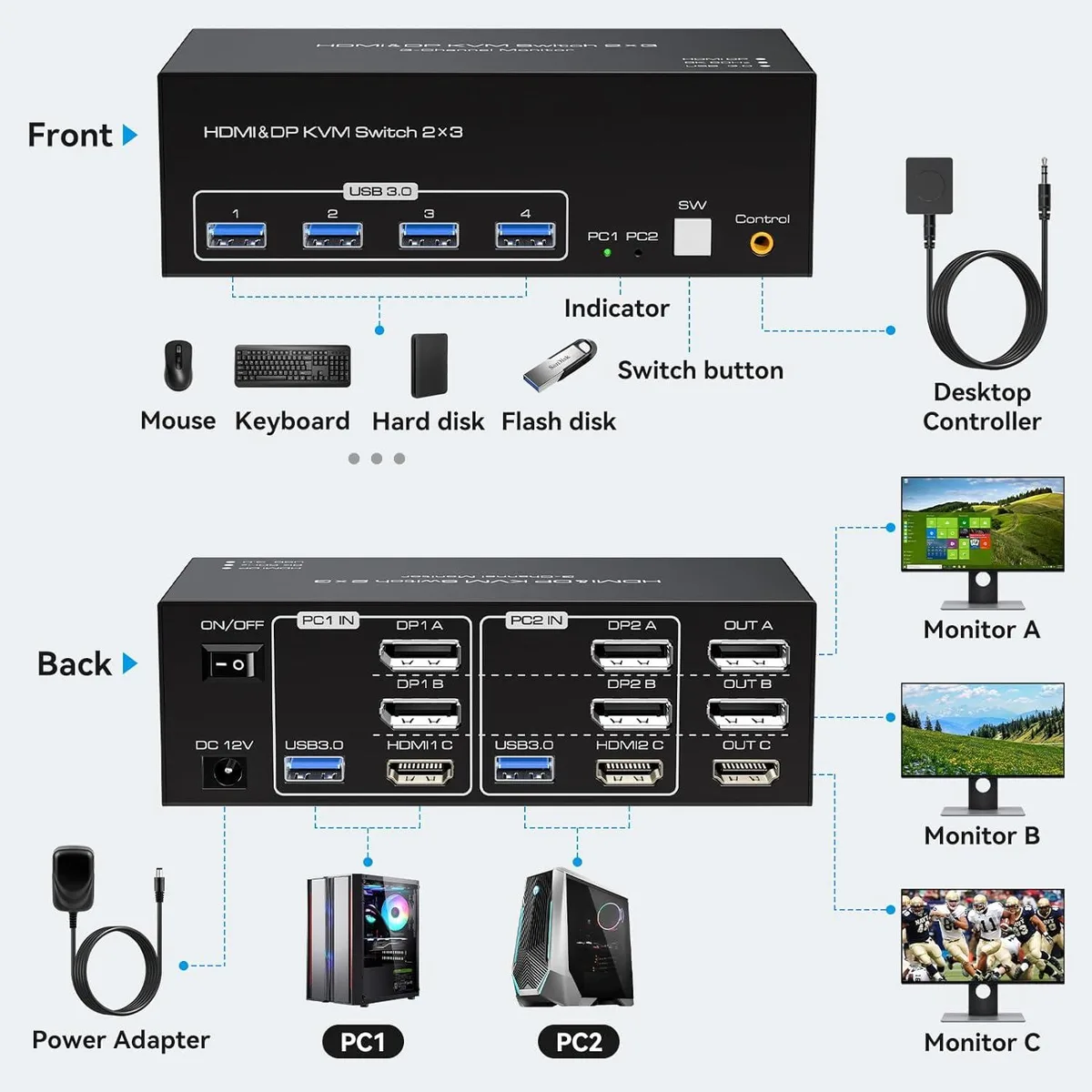

  • Share three monitors between two computers with one keyboard and mouse set
  • Drive 8K 60Hz or 4K 120Hz video through HDMI 2.1 and DP 1.4 ports
  • Switch systems instantly via front push buttons or the wired desktop controller
  • Connect four USB 3.0 peripherals at 5 Gbps through the built-in hub
  • Operate in extended or mirror display modes across all three screens

Triple-Monitor KVM for Two Computers

This ESTONE SW232-2DP1HD switch lets two desktops or laptops share three displays and four USB 3.0 peripherals. Each computer must provide two DisplayPort outputs and one HDMI output to drive all three screens. The unit supports extended and duplicate display modes from a single keyboard and mouse set.

Resolution Limits of HDMI 2.1 and DP 1.4

Video bandwidth tops out at 8K 60Hz or 4K 120Hz when the source, monitor and cables all meet the relevant 2.1 or 1.4 specification. Lower resolutions such as 4K 60Hz, 2K 144Hz, 1080P and 720P are also supported. Without full-chain compliance the highest refresh rates cannot be reached.

Check Your Host Ports and Cables Before Ordering

Verify that each computer has exactly two DisplayPort and one HDMI port available for simultaneous connection. Confirm that your monitors accept the matching inputs and that your cables are rated for the target resolution and refresh rate. The switch includes a wired remote button for desktop placement.

Highlights

  • Share three monitors between two computers with one keyboard and mouse set
  • Drive 8K 60Hz or 4K 120Hz video through HDMI 2.1 and DP 1.4 ports
  • Switch systems instantly via front push buttons or the wired desktop controller
  • Connect four USB 3.0 peripherals at 5 Gbps through the built-in hub
  • Operate in extended or mirror display modes across all three screens

Specifications

BrandESTONE
SeriesSW232-2DP1HD
ModelSW232-2DP1HD
TypeDisplayport,HDMI and USB
PC Connectors2Displayport, HDMI and USB
Computer Connections3 Ports
Monitor Connections3 Ports
Video Resolution8K 60Hz
PC SelectionPush Buttons/Desktop Controller
AutoScan Interval3 seconds
LED IndicatorsYes
USB Featureswith USB support
Application2DP+HDMI KVM Switch 3 Monitors 2 Computers: This DisplayPort HDMI KVM Switch 2 port connects 2 desktops or laptops to share 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays. To expand and copy the display, each laptop/PC must support 3 or more screens and must support extended displays.
8K DisplayPort HDMI KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 devices.
It is possible to control two computers and three monitors directly with one set of keyboard and mouse.
Three mo
Features2 computers/laptops share one set of keyboard, mouse, and 2 Displayport +HDMI monitors
Triple monitors output support up to 8K@60Hz for extended and mirror display, support DP 1.4V / HDMI2.1 standards.
2 Switching modes: Button switch and wired remote.
With extra 4 x 5Gbps USB 3.0 ports .
Cross-support most major OS including Windows, Linux, Mac, and more.
The ports that need to plug in Displayport/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.
Dimensions5.43 x 5.35 x 1.46 inches
Weight9.52 Ounces
Package Contents1x USB 3.0 HDMI + 2 DisplayPort Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I pick between the DisplayPort and HDMI outputs for my three monitors?

The switch provides two DisplayPort outputs and one HDMI output; connect each monitor to the matching port on the unit.

What does the 8K 60Hz rating mean when I plug this into my PC?

It supports up to 8K resolution at 60 Hz per display when the source, monitor and cables all meet the DP 1.4 or HDMI 2.1 requirements.

Which video standard limits the maximum refresh rate on the HDMI port?

The HDMI port follows the HDMI 2.1 standard, capping at 8K 60Hz or 4K 120Hz depending on the connected hardware.
