ESTONE
ESTONE SW231-3HD Triple HDMI KVM Switch 2 PC 3 Mon 8K60
Shares three HDMI monitors, keyboard, mouse and four USB 3.0 ports between two computers at up to 8K 60Hz resolution
- TypeHDMI, USB
- PC ConnectorsHDMI and USB
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Control 2 computers with one keyboard and mouse across 3 monitors
- Triple 8K 60Hz output via HDMI 2.1 with HDCP 2.3 support
- 4 USB 3.0 ports at 5Gbps for peripherals and storage
- Push-button and wired desktop controller for instant switching
- 12V 1A power adapter ensures stable operation with high-power devices

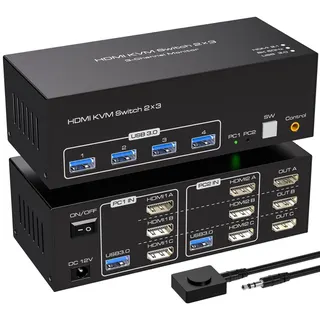

Triple-monitor KVM switch

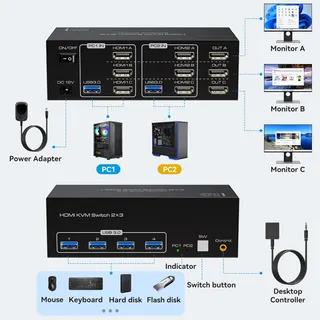

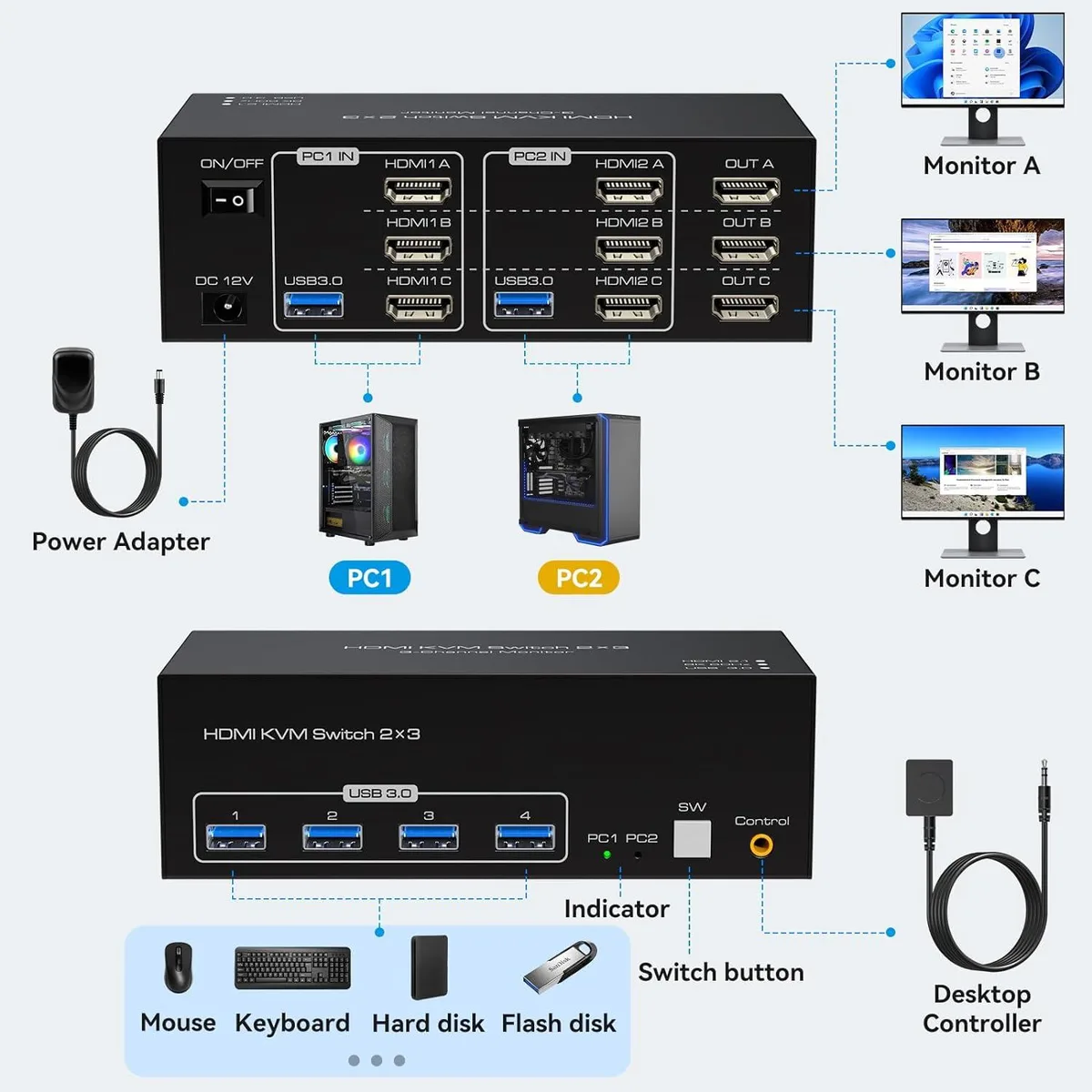

The ESTONE SW231-3HD lets two computers share three HDMI monitors and four USB 3.0 peripherals with a single keyboard and mouse. It is aimed at professionals and enthusiasts who need simultaneous extended or mirrored desktops across three screens without unplugging cables. The unit ships with two USB 3.0 cables, a wired remote button, a 12V/1A power adapter and a user manual.
8K60 over HDMI 2.1
Each of the three monitor outputs supports up to 8K at 60 Hz and is backward compatible with 4K at 120 Hz and lower resolutions. HDMI 2.1 and HDCP 2.3 compliance means protected content plays correctly, but 8K60 output requires both the source graphics card and the display to support that mode.
USB 3.0 hub and switching
Four USB 3.0 ports run at up to 5 Gbps and accept keyboards, mice, printers, scanners or storage devices, while remaining compatible with USB 2.0 and 1.1 gear. Switching between the two connected PCs is done by front-panel push buttons or the included desktop controller; an auto-scan mode cycles every 3 seconds and LED indicators show the active port. The switch needs its own power adapter for stable operation with high-draw USB devices.
Highlights
- Control 2 computers with one keyboard and mouse across 3 monitors
- Triple 8K 60Hz output via HDMI 2.1 with HDCP 2.3 support
- 4 USB 3.0 ports at 5Gbps for peripherals and storage
- Push-button and wired desktop controller for instant switching
- 12V 1A power adapter ensures stable operation with high-power devices
Specifications
| Brand | ESTONE |
|---|---|
| Series | SW231-3HD |
| Model | SW231-3HD |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | KVM Switch 3 Monitors 2 Computers: This HDMI KVM Switch 2 port connects 2 desktops or laptops to share 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays. To expand and copy the display, each laptop/PC must support 3 or more screens and must support extended displays. 8K HDMI KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 devices. It is possible to control two computers and three monitors directly with one set of keyboard and mouse. Three monitors can support two modes:dupl |
| Features | 1. 2 computers/laptops share one set of keyboard, mouse, and 3 HDMI monitors 2. Triple monitors output support up to 8K@60Hz for extended and mirror display, support HDMI 2.1 and HDCP 2.3 standards. 3. 2 Switching modes: Button switch and wired remote. 4. With extra 4 x 5Gbps USB 3.0 ports . 5. Cross-support most major OS including Windows, Linux, Mac, and more. 6. The ports that need to plug in HDMI/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space. |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x USB 3.0 3x3 HDMI Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
What does the 8K 60Hz rating mean when I connect three monitors?
Each of the three HDMI outputs can deliver up to 8K at 60 Hz, but only if both the source graphics card and the attached monitor support that resolution and refresh rate.
Which HDMI standard does the switch implement and what bandwidth ceiling does it impose?
The unit follows HDMI 2.1 and HDCP 2.3, capping video bandwidth at the level required for 8K 60 Hz or 4K 120 Hz signals.
How much desk space does the switch occupy and what mounting options exist?
The chassis measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces; it sits flat on the desk and includes a wired push-button controller for remote switching.
