ESTONE
ESTONE SW204N-DP 8K 60 Hz 2-Port DP KVM Switch with 4 USB 3.0
Lets two computers share one monitor and four USB 3.0 devices at up to 8K 60 Hz with push-button or wired remote switching
- TypeDisplayPort, USB
- PC ConnectorsDisplayport, USB
- Computer Connections2 Port DisplayPort
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Share two computers on one 8K 60 Hz monitor
- Switch instantly via front buttons or wired remote
- Connect four USB 3.0 peripherals simultaneously
- Works with Windows, macOS, Linux and Unix plug-and-play
- Compact 5.43 x 5.35 x 1.46 inch design
Two-computer DisplayPort KVM with four USB 3.0 ports

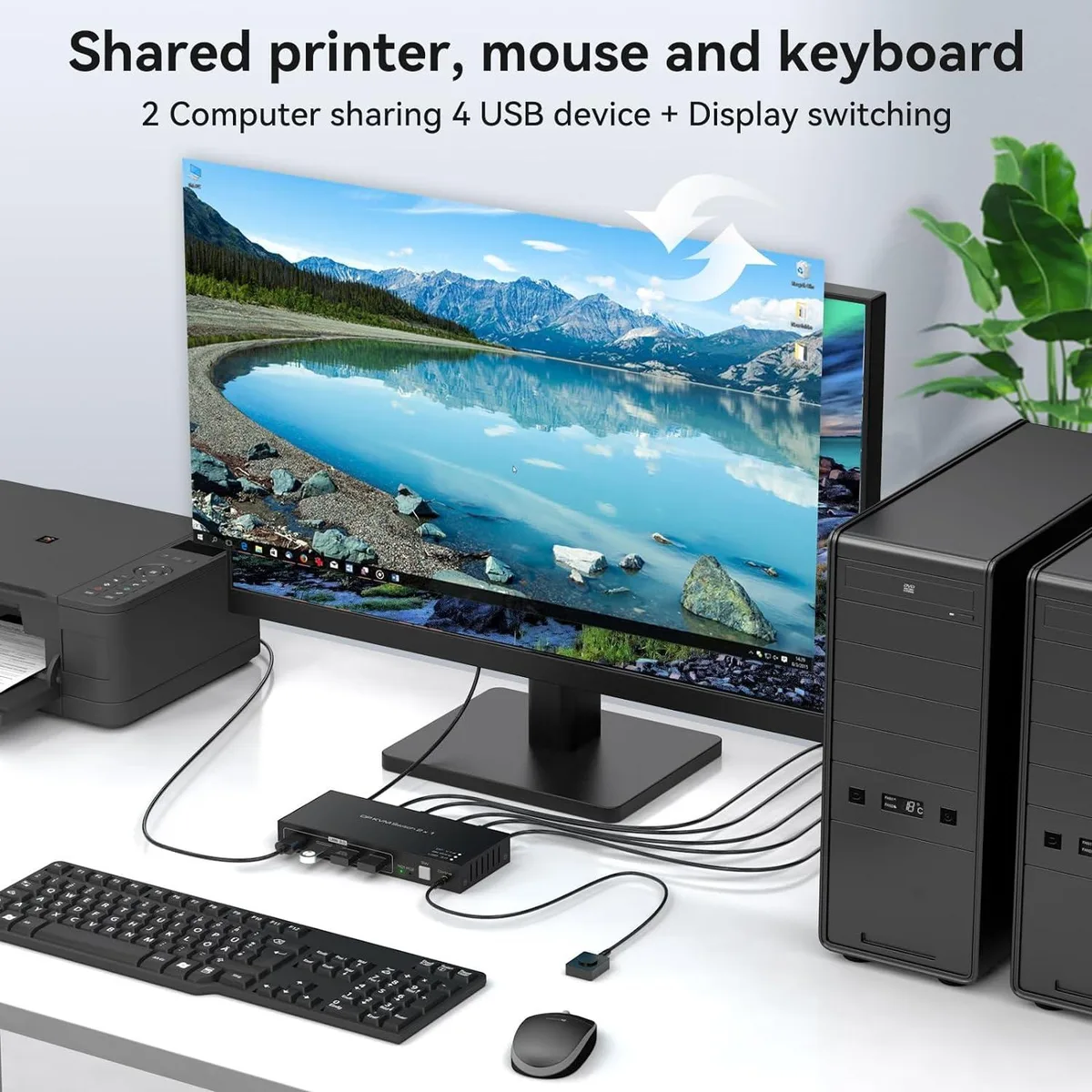

The ESTONE SW204N-DP lets two computers or laptops share one DisplayPort monitor and up to four USB 3.0 peripherals such as a keyboard, mouse, printer or external drive. It supports video up to 8K at 60 Hz and 4K at 120 Hz with a maximum resolution of 7680 x 4320. Switching is instant via front-panel buttons or the included wired desktop controller. The unit is plug-and-play on Windows, macOS, Linux and Unix.
Replaces manual cable swapping for dual-system desks
Instead of unplugging DisplayPort and USB cables each time you change machines, this switch routes both video and peripheral signals through a single box. The jump is worth it when you regularly move between two workstations and need 8K 60 Hz or 4K 120 Hz output without latency. Auto-scan can cycle inputs every 3 seconds for monitoring. It does not suit setups that require more than two computer connections or more than one display output.
Check your ports and power before ordering
Each computer must provide a DisplayPort 1.4, 1.2 or 1.1 output and a USB 3.0 type-A port for the upstream link. The monitor needs a DisplayPort input that matches your target resolution. A 5 V power adapter is included and required for stable operation. Verify cable reach: the box measures 5.43 x 5.35 x 1.46 inches and weighs 9.52 ounces. No drivers are needed, but confirm your OS appears in the supported list.
Highlights
- Share two computers on one 8K 60 Hz monitor
- Switch instantly via front buttons or wired remote
- Connect four USB 3.0 peripherals simultaneously
- Works with Windows, macOS, Linux and Unix plug-and-play
- Compact 5.43 x 5.35 x 1.46 inch design
Specifications
| Brand | ESTONE |
|---|---|
| Series | SW204N-DP |
| Model | SW204N-DP |
| Type | DisplayPort, USB |
| PC Connectors | Displayport, USB |
| Computer Connections | 2 Port DisplayPort |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 2 in 1 out DisplayPort KVM Switch: DP KVM Switch is a displayport switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. |
| Features | 2 in 1 out DisplayPort KVM Switch: DP KVM Switch is a displayport switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. Using only 1 set of keyboard, mouse and monitor to control 2 computers devices. Available to use keyboard and mouse without any delay after switch input sources. With 4xUSB 3.0 ports, the KVM Switch is possible to connect Printer, scanner, USB hard drive or other USB devices. Support 8K@60Hz 4K@120Hz, resolution up to 7680*4320@ 60Hz. Support front panel buttons and External switch button to control |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x Displayport KVM Switch, 1 x External Controller Kits, 2 x USB 3.0 Cable, 1 x Power Adapter, 1 x User Manual. |
Questions about this item
What size desk space does the 5.43 x 5.35 x 1.46 inch unit need?
The switch occupies a 5.43 by 5.35 inch footprint and stands 1.46 inches tall, so allow at least that much flat area plus cable clearance behind it.
How do I connect the two computers and the single monitor using the supplied cables?
Plug each computer into one of the two DisplayPort inputs and a USB 3.0 cable, connect the monitor to the DisplayPort output, attach the power adapter, then use the front buttons or wired remote to switch.
When should I replace the external power adapter?
Replace the adapter if the switch loses video or USB connectivity intermittently, the LED indicators fail to light, or the adapter itself becomes excessively hot during normal operation.
