Small black metal box with BNC input, HDMI and BNC outputs, LED indicator, USB power port

ESTONE

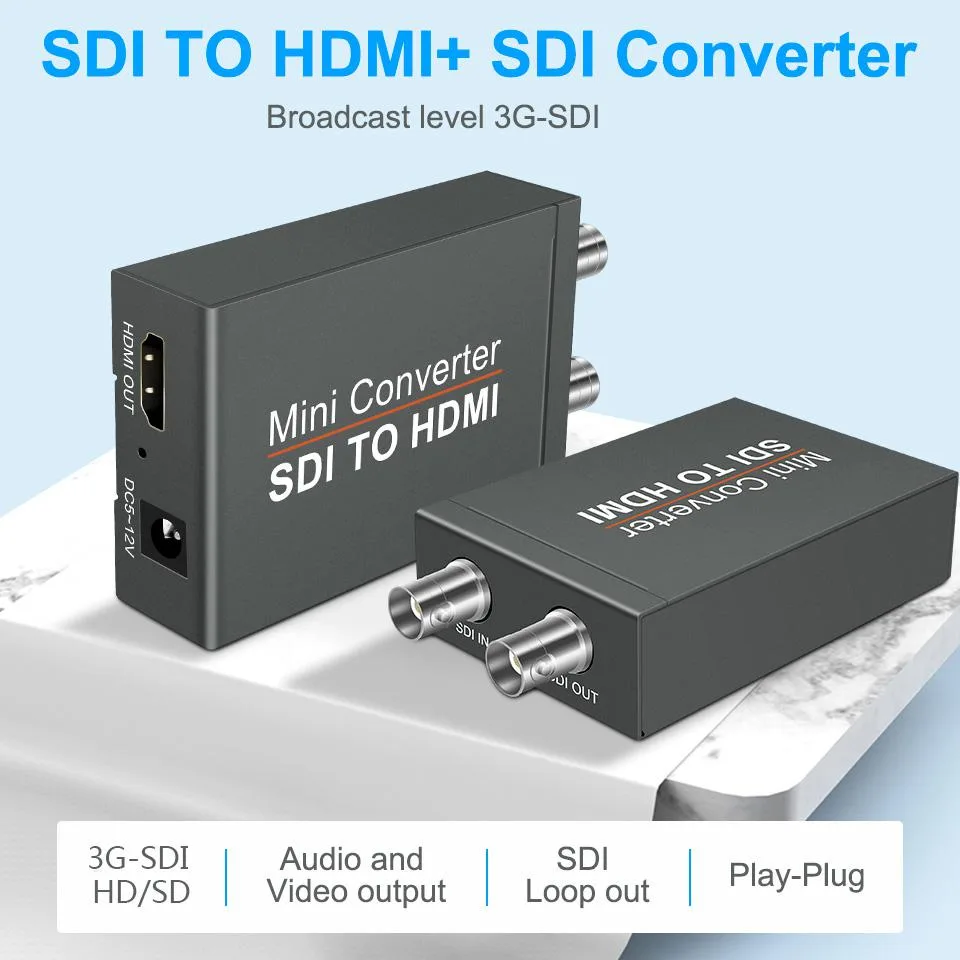

ESTONE SDI2HDMI SDI to HDMI Video Capturing Device with Audio Embedder

SKU CH-X3CQ-44T2Y

Converts SD-SDI, HD-SDI and 3G-SDI signals to HDMI with auto format detection and an SDI loop-through output for simultaneous monitoring

  • InterfaceSDI to HDMI
  • FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Converts SD-SDI, HD-SDI and 3G-SDI to HDMI automatically
  • Loop-through SDI output lets you monitor the source on an SDI display simultaneously
  • Supports long cable runs up to 300 ft for 3G-SDI, 500 ft for HD-SDI and 1000 ft for SD-SDI
  • Embeds up to 8 channels of 48 kHz digital audio into the HDMI output
  • Powered by USB DC 5 V 1 A for simple desktop or rack installation

SDI-to-HDMI conversion with loop-through

This ESTONE SDI2HDMI converter accepts SD-SDI, HD-SDI and 3G-SDI signals through a single BNC input and delivers both an HDMI output and an SDI loop-out. It auto-detects the incoming format and supports resolutions up to 1080p at 60 Hz with embedded 8-channel audio.

Check your source and power before ordering

Verify that your camera or switcher outputs SDI and not RF, CVBS, AHD, TVI or CVI, because those formats are not accepted. The unit requires a USB DC 5 V 1 A supply, so ensure a compatible port or adapter is available near the install location.

Replaces a basic SDI monitor feed for HDMI workflows

It upgrades a straight SDI-to-SDI chain by adding an HDMI branch for consumer displays or capture cards while preserving the original SDI signal via loop-out. The jump is worth it when you need simultaneous SDI and HDMI monitoring without a distribution amplifier.

Highlights

  • Converts SD-SDI, HD-SDI and 3G-SDI to HDMI automatically
  • Loop-through SDI output lets you monitor the source on an SDI display simultaneously
  • Supports long cable runs up to 300 ft for 3G-SDI, 500 ft for HD-SDI and 1000 ft for SD-SDI
  • Embeds up to 8 channels of 48 kHz digital audio into the HDMI output
  • Powered by USB DC 5 V 1 A for simple desktop or rack installation

Specifications

BrandESTONE
SeriesSDI2HDMI
ModelSDI2HDMI
InterfaceSDI to HDMI
FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
HDMI1 In
SDI2 Out
LED IndicatorYes
DisplaySDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Specification- Product Type: SDI to HDMI Converter

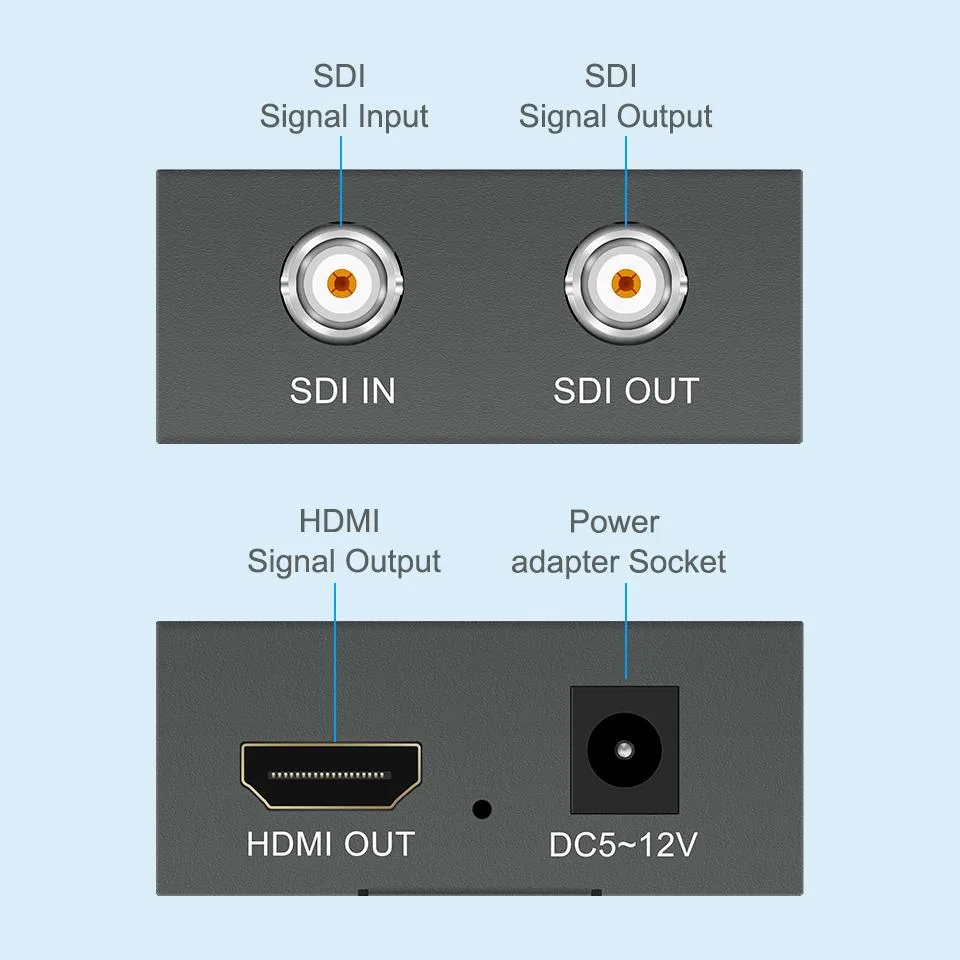

- Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
- Output Port: 1 x HDMI Port, 1 x SDI Output (BNC)
- Power Supply: USB DC 5V/1A
Feature- SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps
- SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz
- HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- One way SDI output, with the Re-clock function, can support multiple cascaded
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual.
OptionHDMI - 1080p

Questions about this item

What comes in the box with the ESTONE SDI2HDMI converter, and do I need to buy any cables separately?

The package includes the converter, a 5 V / 1 A USB power adapter, and a user manual. You must supply your own BNC cable for the SDI input and loop-out, and an HDMI cable for the display.

Which video formats does the SDI2HDMI handle, and how do I know which one to pick?

The unit auto-detects SD-SDI, HD-SDI, and 3G-SDI signals at 270 Mb/s, 1.485 Gbps, or 2.97 Gbps, covering 480i/576i, 720p at 50/60 Hz, and 1080i/p at 24/25/30/50/60 Hz — no manual selection is required.

What does the 1080p 60 Hz headline mean when I connect it to my monitor?

The HDMI output can deliver 1080p at 60 Hz with 8-channel 48 kHz embedded audio, while the SDI loop-out simultaneously passes the original signal up to 300 ft for 3G-SDI.
