Small black metal box with BNC and HDMI ports, LED indicator, USB power input

ESTONE

ESTONE SDI2HDMI SDI to HDMI Converter 1080p 60Hz video capturing device

SKU CH-XYPH-SGTK0

Converts SDI signals to HDMI with loop-through output, supporting 1080p at 60Hz and long cable runs up to 1000ft for SD-SDI

  • InterfaceSDI to HDMI
  • FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Converts SDI to HDMI for display on common monitors
  • Auto-detects SD, HD and 3G-SDI signals up to 1080p 60Hz
  • SDI loop-through lets you feed an SDI monitor simultaneously
  • Supports cable runs up to 300ft for 3G-SDI and 1000ft for SD-SDI
  • Powers via USB DC 5V for simple setup

SDI-to-HDMI conversion for broadcast gear

The ESTONE SDI2HDMI accepts a single BNC input carrying SD-SDI, HD-SDI or 3G-SDI and converts it to an HDMI signal for standard displays. Auto detection selects the correct format from 480i up to 1080p at 60 Hz without manual switching.

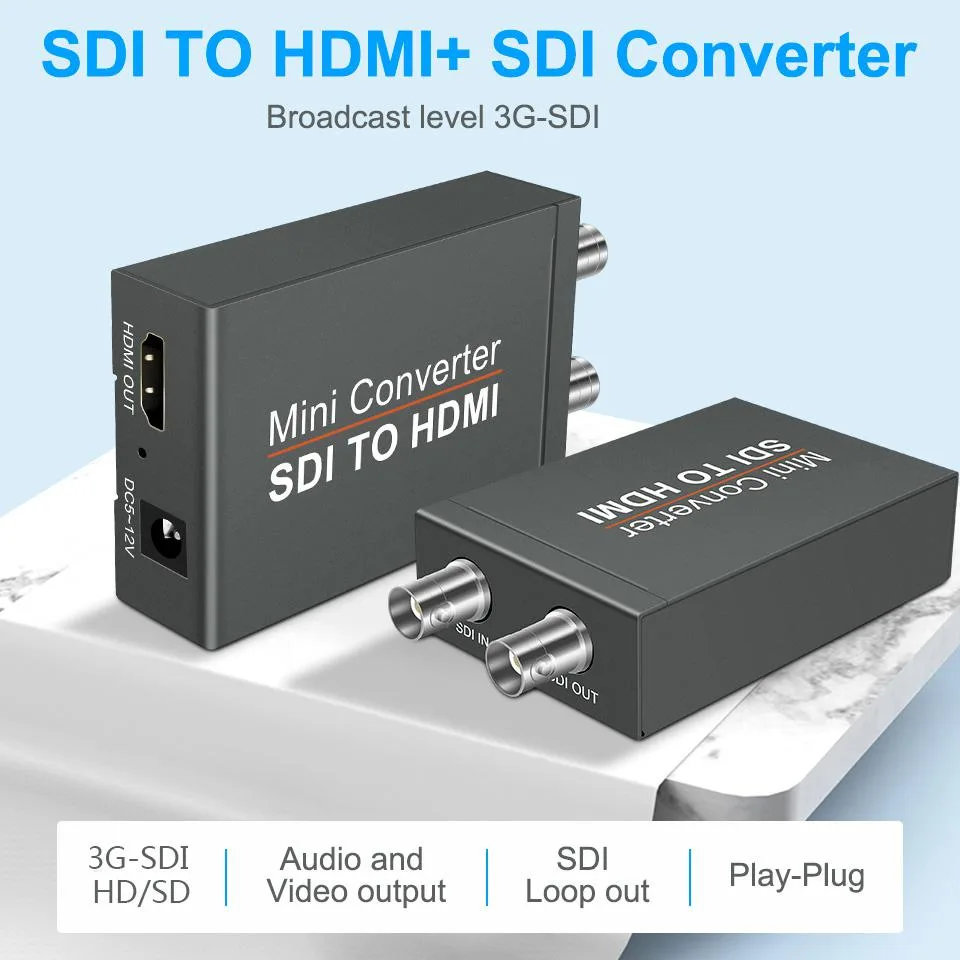

Compact metal box with loop-through BNC

A second BNC provides an SDI loop-out so the original feed reaches an SDI monitor while the HDMI output drives a consumer screen. Power comes from a USB 5 V 1 A adapter, and a front LED confirms signal lock. The unit measures 5.83 by 4.49 by 2.44 inches and weighs 7.8 ounces.

Replaces separate scaler and distribution amp

Users moving from analogue component or composite workflows gain digital clarity and embedded eight-channel 48 kHz audio in one step. The jump is worth it when cable runs up to 300 ft for 3G-SDI or 1000 ft for SD-SDI must stay intact and 4K resolution is not required.

Highlights

  • Converts SDI to HDMI for display on common monitors
  • Auto-detects SD, HD and 3G-SDI signals up to 1080p 60Hz
  • SDI loop-through lets you feed an SDI monitor simultaneously
  • Supports cable runs up to 300ft for 3G-SDI and 1000ft for SD-SDI
  • Powers via USB DC 5V for simple setup

Specifications

BrandESTONE
SeriesSDI2HDMI
ModelSDI2HDMI
InterfaceSDI to HDMI
FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
HDMI1 In
SDI2 Out
LED IndicatorYes
DisplaySDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Specification- Product Type: SDI to HDMI Converter
- Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
- Output Port: 1 x HDMI Port, 1 x SDI Output (BNC)
- Power Supply: USB DC 5V/1A
Feature- SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps
- SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz
- HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- One way SDI output, with the Re-clock function, can support multiple cascaded
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual.
OptionHDMI - 1080p

Questions about this item

What maximum bit rate does the 3G-SDI interface on the ESTONE SDI2HDMI support?

The converter handles SDI data rates up to 2.97 Gbps, covering 3G-SDI at 1080p 60 Hz, HD-SDI at 1.485 Gbps and SD-SDI at 270 Mbps.

What physical connectors and cable lengths does the ESTONE SDI2HDMI require for installation?

It uses one BNC input for SDI, one HDMI output and one BNC loop-out. SDI input cables can run up to 300 ft for 3G-SDI, 500 ft for HD-SDI or 1000 ft for SD-SDI; the loop-out reaches 300 ft.

How is the ESTONE SDI2HDMI powered and what common mistake should be avoided?

Power comes from the included USB DC 5 V/1 A adapter. Do not attempt HDMI-to-SDI conversion — the device only converts SDI to HDMI with a loop-through SDI output.
