Black rectangular SDI-to-HDMI converter with BNC and HDMI ports, LED indicator, USB power input

ESTONE

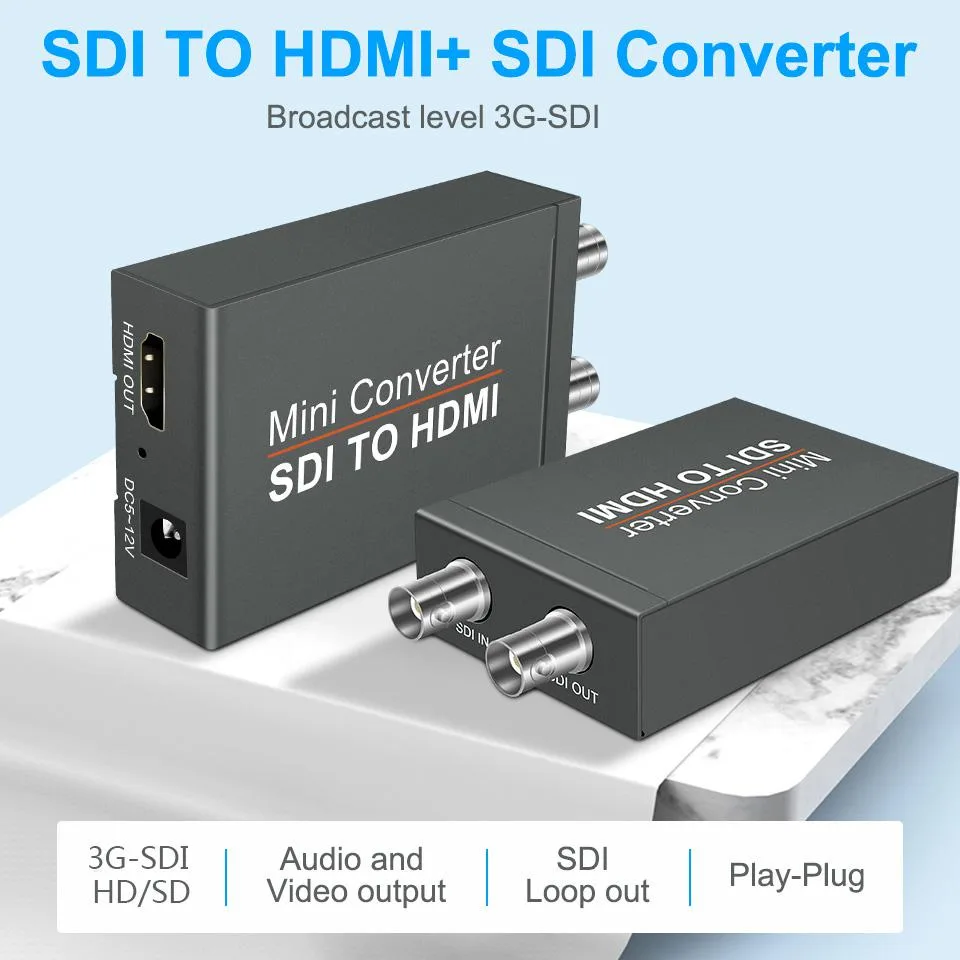

ESTONE SDI2HDMI 3G-SDI to HDMI Video Capturing Device 1080p

SKU CH-C1QG-PK3P6

Converts SDI signals to HDMI with auto format detection and loop-through SDI output up to 1080p resolution

  • InterfaceSDI to HDMI
  • FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Converts SDI to HDMI with automatic format detection for 3G-SDI, HD-SDI and SD-SDI signals
  • Loop-through SDI output lets you monitor the original feed while displaying on an HDMI screen
  • Supports long cable runs up to 300 ft for 3G-SDI and 1000 ft for SD-SDI
  • Embedded 8-channel 48 kHz audio carried over HDMI without extra wiring
  • USB-powered 5 V design keeps the unit compact and simple to deploy

SDI to HDMI Conversion for Broadcast Workflows

The ESTONE SDI2HDMI accepts 3G-SDI, HD-SDI and SD-SDI signals through a single BNC input and converts them to HDMI for standard displays. It also provides an SDI loop-through output so the original feed can reach a second monitor. The unit handles 1080p at 60, 59.94 and 50 Hz as well as 1080i and 720p formats.

Auto-Detection and Stable Signal Handling

The converter auto-detects the incoming SDI standard and selects the correct output timing without manual switching. It supports cable runs up to 300 ft for 3G-SDI, 500 ft for HD-SDI and 1000 ft for SD-SDI, maintaining integrity over long distances. Embedded audio up to eight channels at 48 kHz is passed through to the HDMI output.

Replaces Dedicated Rack-Mount Converters

This compact adapter replaces larger rack-mount units when only a single-channel conversion is needed. It is not suitable for workflows that require 4K or UHD resolution, nor for bi-directional HDMI-to-SDI conversion. Users needing multi-channel or format-agnostic routing should consider a matrix switcher instead.

Highlights

  • Converts SDI to HDMI with automatic format detection for 3G-SDI, HD-SDI and SD-SDI signals
  • Loop-through SDI output lets you monitor the original feed while displaying on an HDMI screen
  • Supports long cable runs up to 300 ft for 3G-SDI and 1000 ft for SD-SDI
  • Embedded 8-channel 48 kHz audio carried over HDMI without extra wiring
  • USB-powered 5 V design keeps the unit compact and simple to deploy

Specifications

BrandESTONE
SeriesSDI2HDMI
ModelSDI2HDMI
InterfaceSDI to HDMI
FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
HDMI1 In
SDI2 Out
LED IndicatorYes
DisplaySDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Specification- Product Type: SDI to HDMI Converter

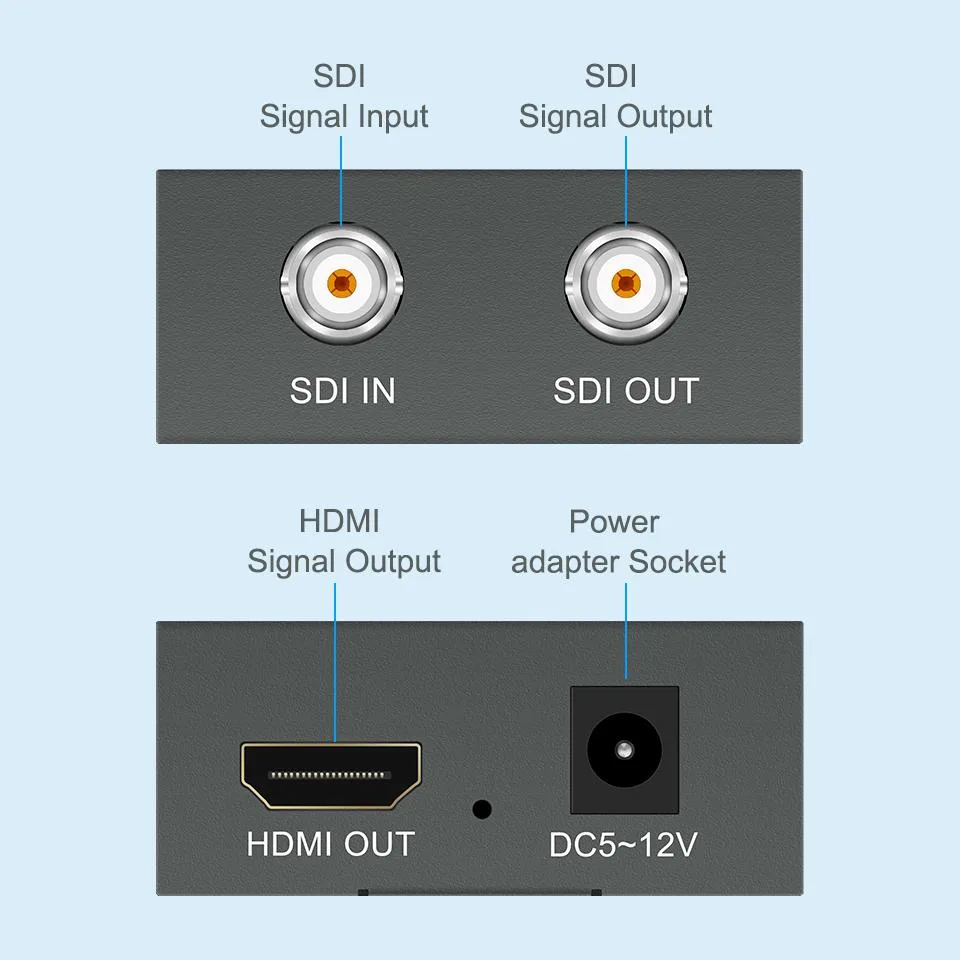

- Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
- Output Port: 1 x HDMI Port, 1 x SDI Output (BNC)
- Power Supply: USB DC 5V/1A
Feature- SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps
- SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz
- HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- One way SDI output, with the Re-clock function, can support multiple cascaded
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual.
OptionHDMI - 1080p

Questions about this item

How much power does the ESTONE SDI2HDMI draw when it runs all day?

The converter is powered by a USB DC 5V/1A supply, so it draws up to 5 watts continuously.

What cables or sources must I already have to use the SDI2HDMI?

You need a BNC SDI cable carrying an SD-SDI, HD-SDI or 3G-SDI signal and an HDMI cable to connect the output to your display.

Will the SDI loop-out still work if I keep an older SD-SDI monitor in the chain?

Yes, the loop-out passes the original SDI signal unchanged, supporting cable runs up to 1000 ft for SD-SDI.
